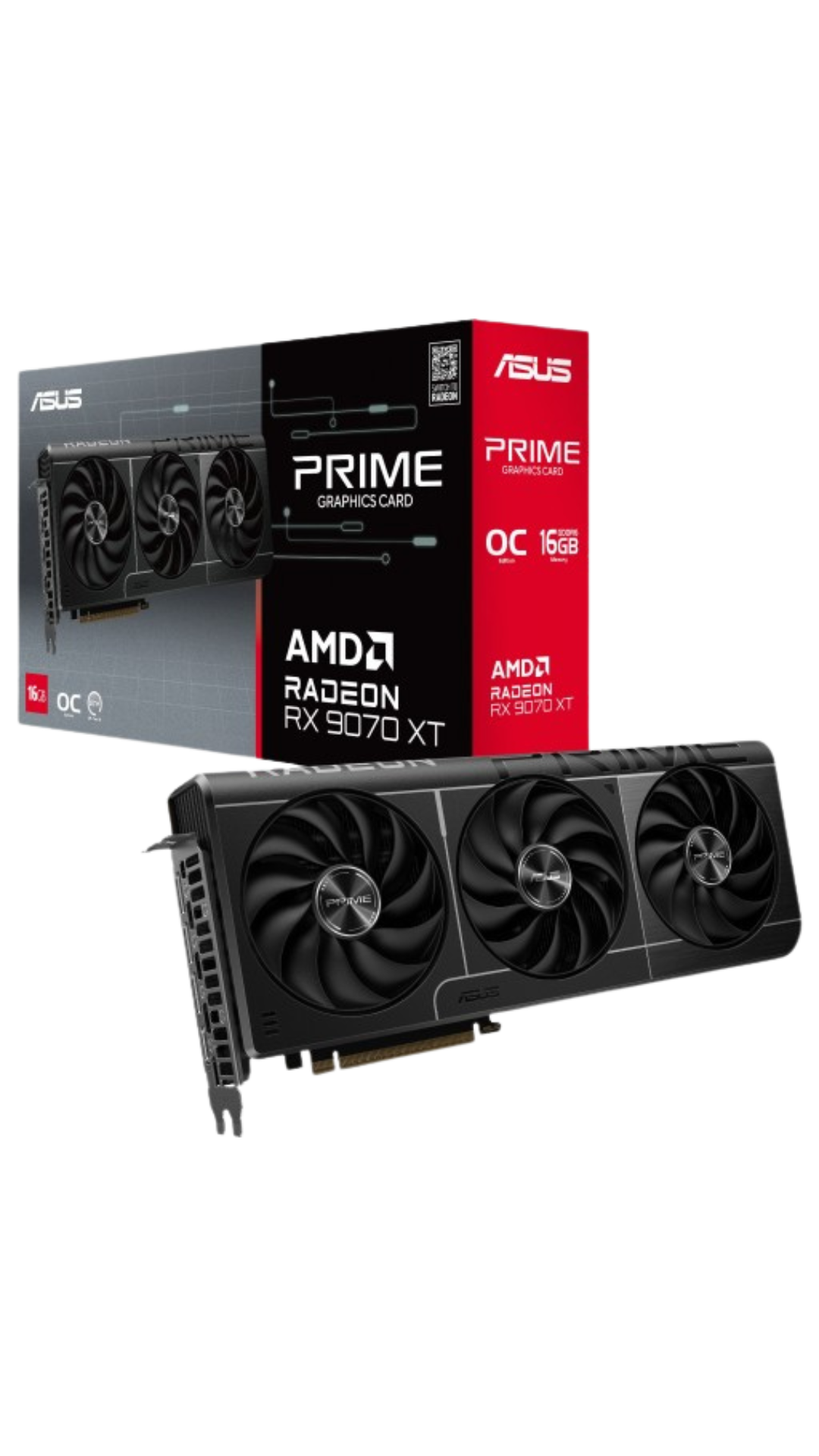

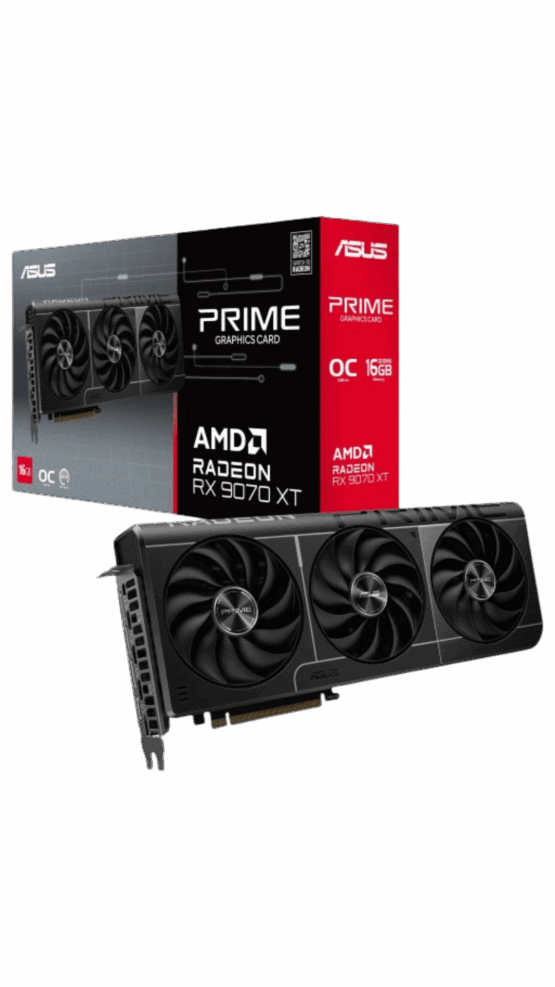

🎮 ASUS Prime Radeon RX 9070 XT OC Edition – 16GB GDDR6

Description

🧠 GPU Architecture

• GPU: AMD Radeon RX 9070 XT

• Architecture: RDNA 4 (Navi 48 XT)

• Compute Units: 64

• Stream Processors: 4096

• Ray Accelerators: 64

• AI Accelerators: 128

• Manufacturing Process: 4 nm (TSMC N4C)

---

⏱️ Clock Speeds

• OC Mode (with GPU Tweak III):

  • Boost Clock: Up to 2710 MHz

  • Game Clock: Up to 2200 MHz

• Default Mode:

  • Boost Clock: Up to 2685 MHz

  • Game Clock: Up to 2170 MHz

---

💾 Memory

• Video Memory: 16GB GDDR6

• Memory Speed: 20 Gbps

• Memory Interface: 256-bit

• Memory Bandwidth: 640 GB/s

---

❄️ Cooling & Thermal Design

• Cooler Type: Triple Axial-tech fans with 0 dB mode

• Fan Bearings: Dual ball bearings

• Heatsink: High-density aluminum fin stack with MaxContact baseplate

• Backplate: Full-coverage metal with strategic airflow cutouts

• Dual BIOS: Quiet and Performance profiles

• Slot Size: 2.5-slot design

---

🔌 Power & Connectivity

• Interface: PCIe 5.0 x16

• Power Connectors: 2 x 8-pin PCIe

• Recommended PSU: 750W

• Display Outputs:

  • 3 x DisplayPort 2.1a

  • 1 x HDMI 2.1b

• Max Digital Resolution: 7680 x 4320 (8K UHD)

• HDCP: 2.3 compliant

---

📐 Physical Specs

• Dimensions (L x W x H): Approx. 320 x 130 x 52 mm

• Color: Matte black with silver Prime aesthetic

• Shroud: Minimalistic and clean — non-RGB

---

⚙️ Build Quality & Features

• Construction: Auto-Extreme manufacturing for superior reliability

• Bracket: Stainless steel I/O shield

• PCB Reinforcement: Rigid backplate with anti-sag support

• ARGB: No onboard RGB (clean design focus)

• Software: ASUS GPU Tweak III for tuning, monitoring, and BIOS switching

---

🎯 Best For

• Enthusiast-level 1440p Ultra and 4K gaming

• Creators needing a VRAM-rich, high-bandwidth GPU

• Users who prefer a quiet, no-RGB, high-performance graphics card

• PC builds with PCIe 5.0-ready motherboards
