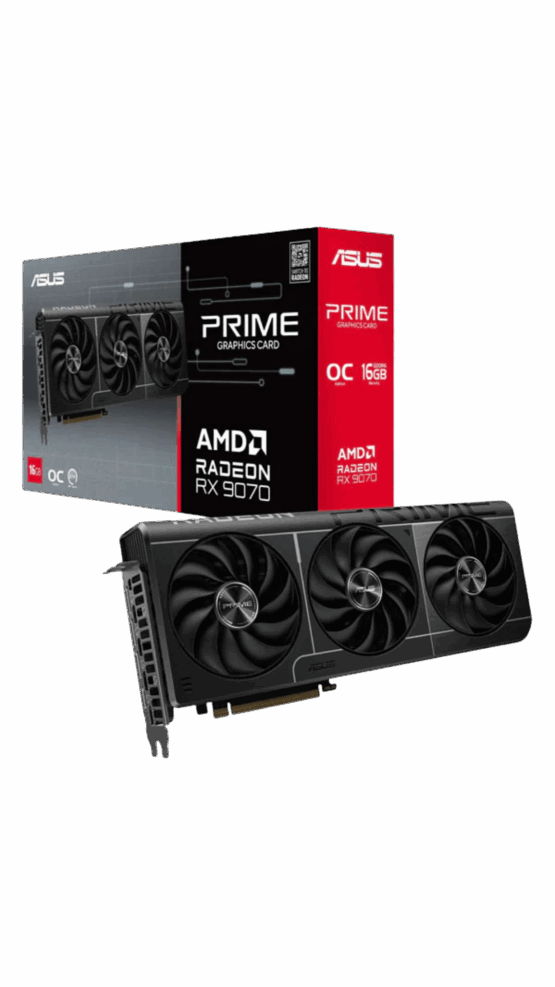

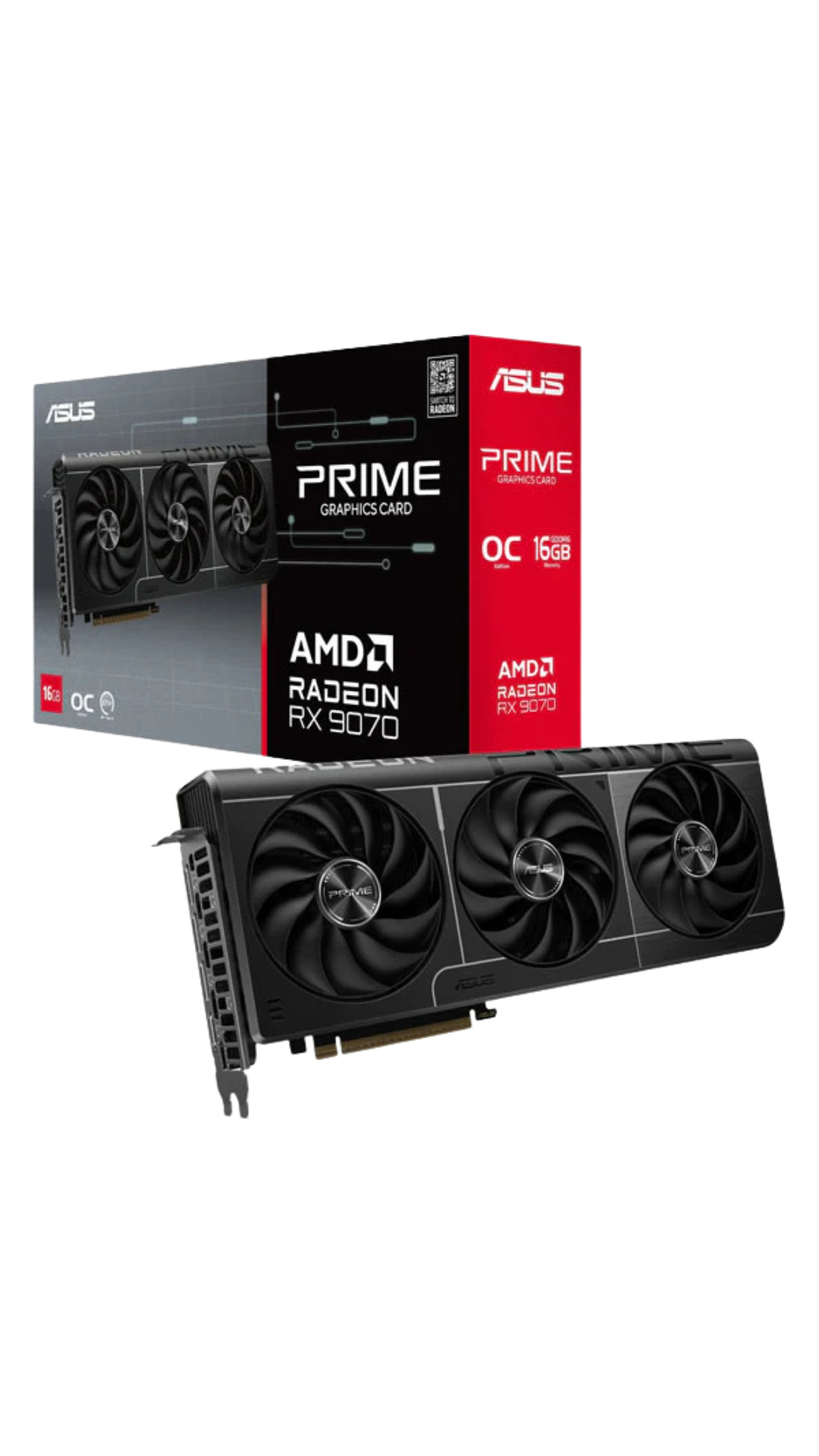

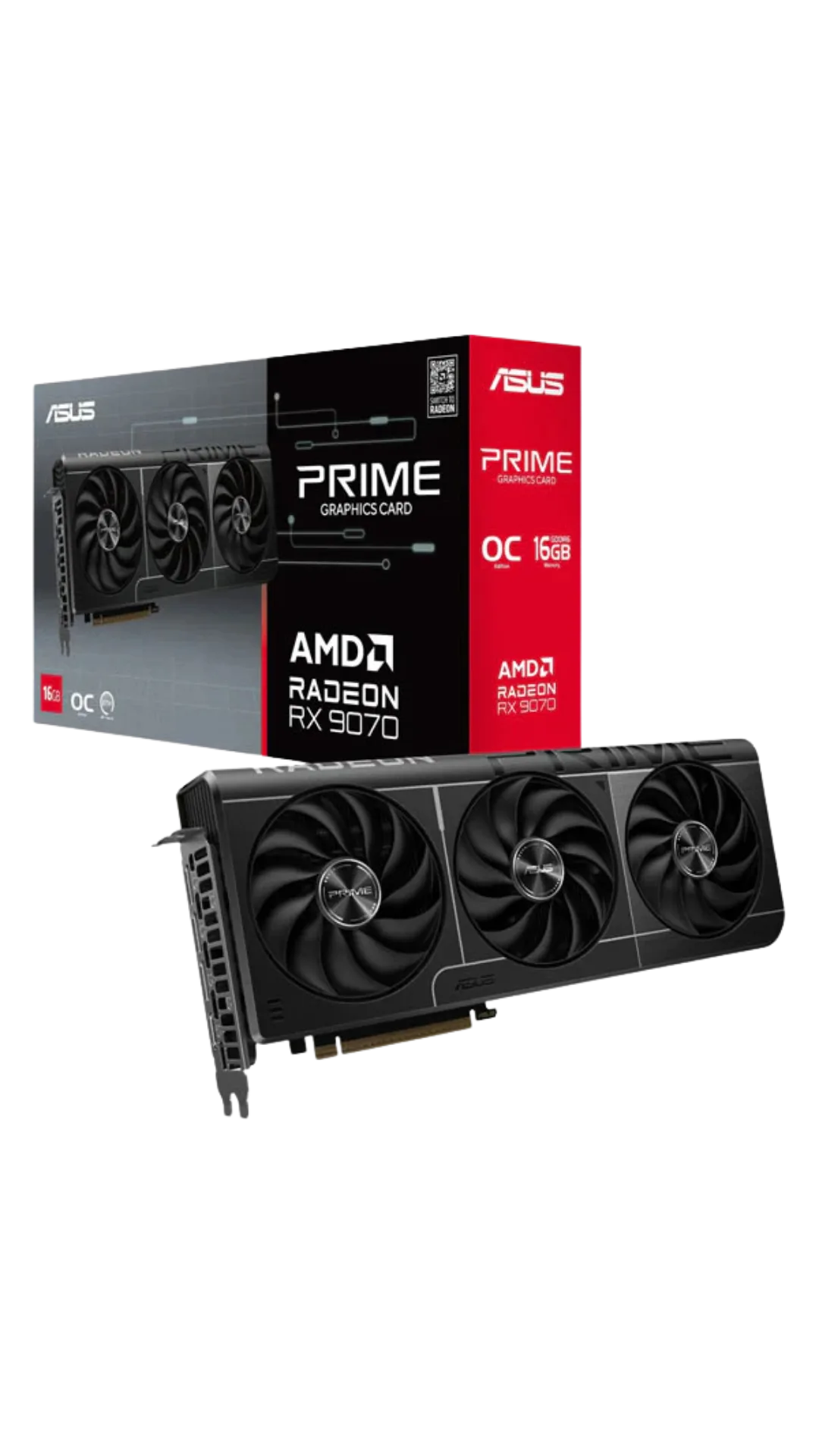

🎮 ASUS Prime Radeon RX 9070 OC Edition – 16GB GDDR6

Description

🧠 GPU Architecture

• Chipset: AMD Radeon RX 9070

• Architecture: RDNA 4 (Navi 48 XL)

• Compute Units: 56

• Stream Processors: 3584

• Ray Accelerators: 56

• AI Accelerators: 112

• Manufacturing Process: TSMC 4 nm

---

⏱️ Performance Clocks

• OC Mode (with GPU Tweak):

  • Boost Clock: Up to 2610 MHz

  • Game Clock: Up to 2140 MHz

• Default Mode:

  • Boost Clock: Up to 2590 MHz

  • Game Clock: Up to 2120 MHz

---

💾 Memory

• Video Memory: 16GB GDDR6

• Memory Speed: 20 Gbps

• Memory Interface: 256-bit

• Memory Bandwidth: 640 GB/s

---

❄️ Cooling & Build

• Cooler Type: Triple-fan Axial-tech design

• Bearings: Dual ball bearing for longer lifespan

• Heatsink: Full-coverage fin stack with MaxContact base

• Backplate: Full-length metal backplate with cutouts for airflow

• Fan Features:

  • 0 dB mode (silent under light load)

  • Dual BIOS switch (Quiet/Performance)

• Slot Size: 2.5-slot design

---

🔌 Power & Connectivity

• Interface: PCIe 5.0 x16

• Power Connectors: 2 x 8-pin PCIe

• Recommended PSU: 700W or higher

• Display Outputs:

  • 3 x DisplayPort 2.1a

  • 1 x HDMI 2.1b

• Max Resolution: 7680 × 4320 (8K UHD)

• HDCP: Version 2.3

---

📐 Physical Specifications

• Dimensions: 312 x 130 x 51 mm (approx.)

• Color: Matte black with silver trim

• Shroud Design: Minimalist styling under the ASUS Prime lineup

---

⚙️ Software & Features

• Tuning Utility: ASUS GPU Tweak III

• RGB Support: No RGB (clean design focus)

• Build Tech: Auto-Extreme manufacturing for better reliability

• Bracket: Stainless steel rear I/O bracket

---

🎯 Best For

• Gamers targeting 1440p Ultra or 4K High gaming

• Creators needing VRAM-rich performance for rendering or editing

• Users building a clean, minimal ASUS Prime-themed rig

• Quiet, efficient performance in well-ventilated ATX builds
