Description

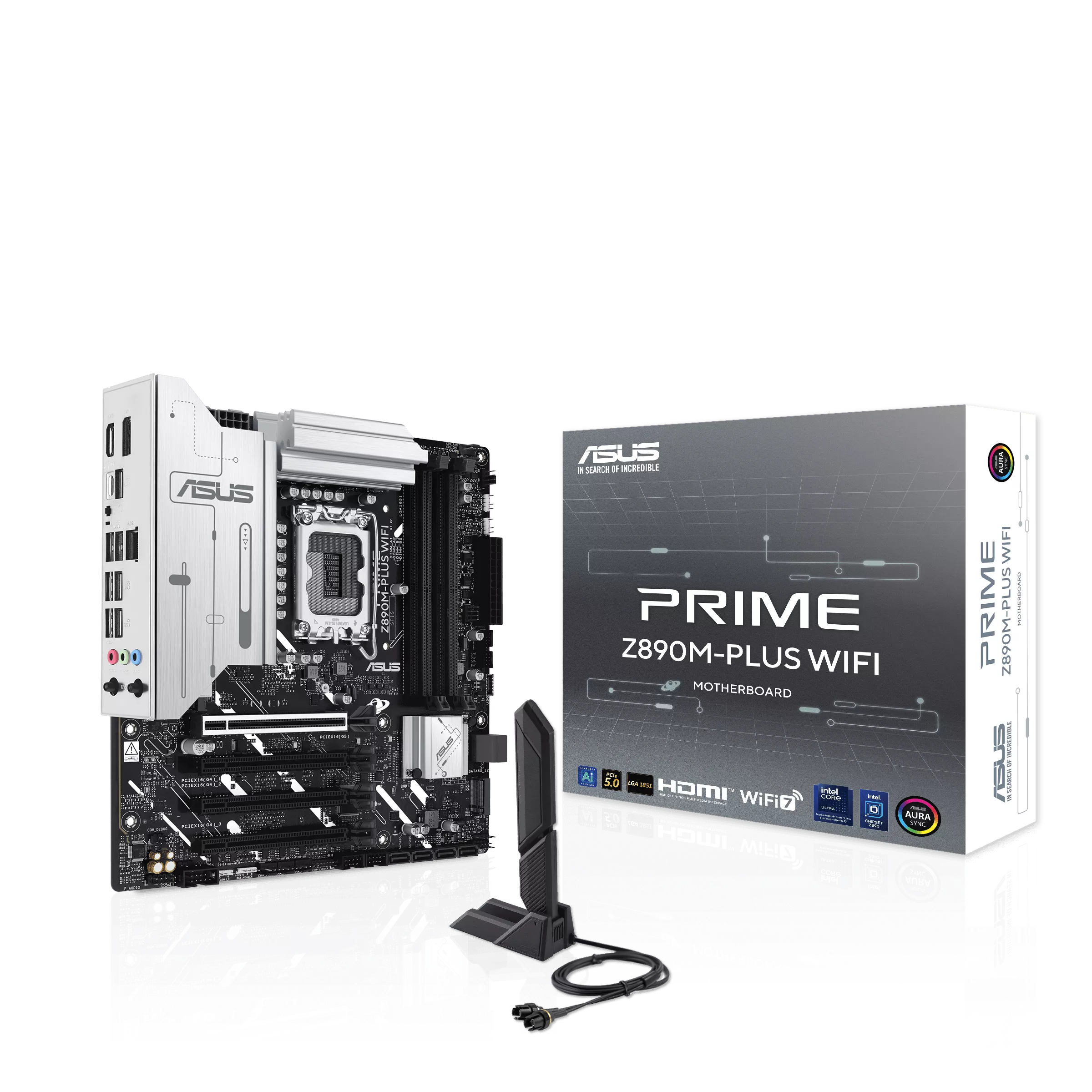

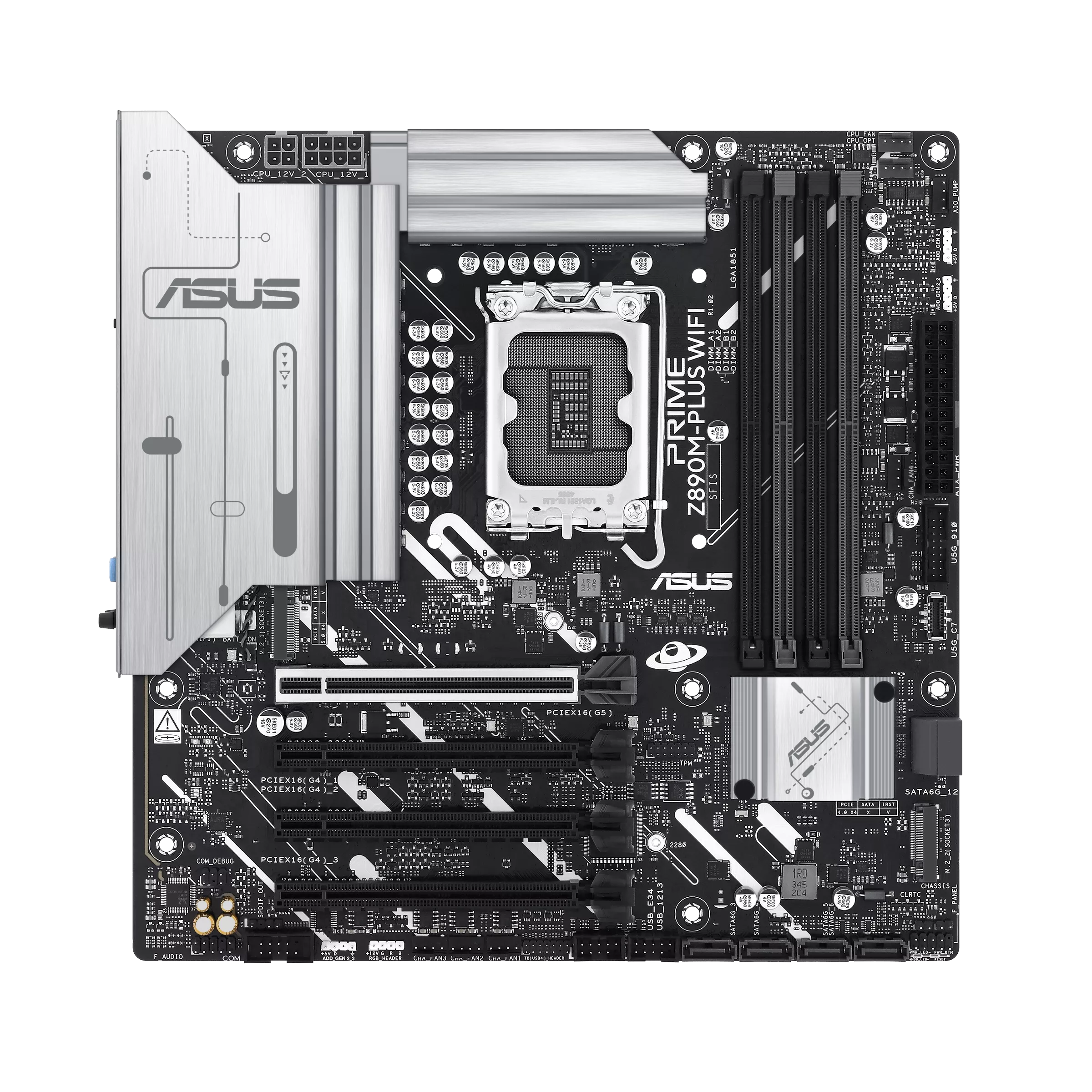

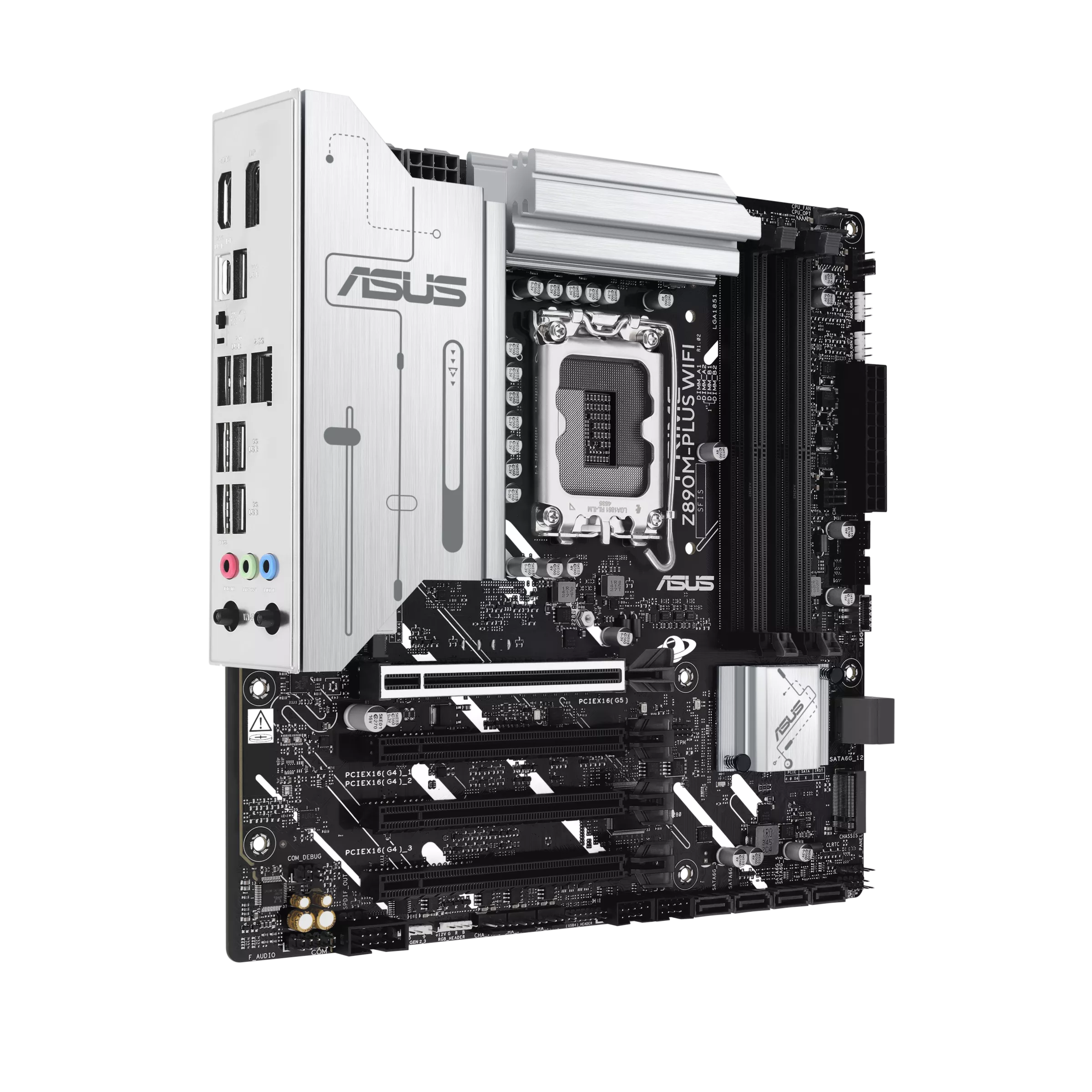

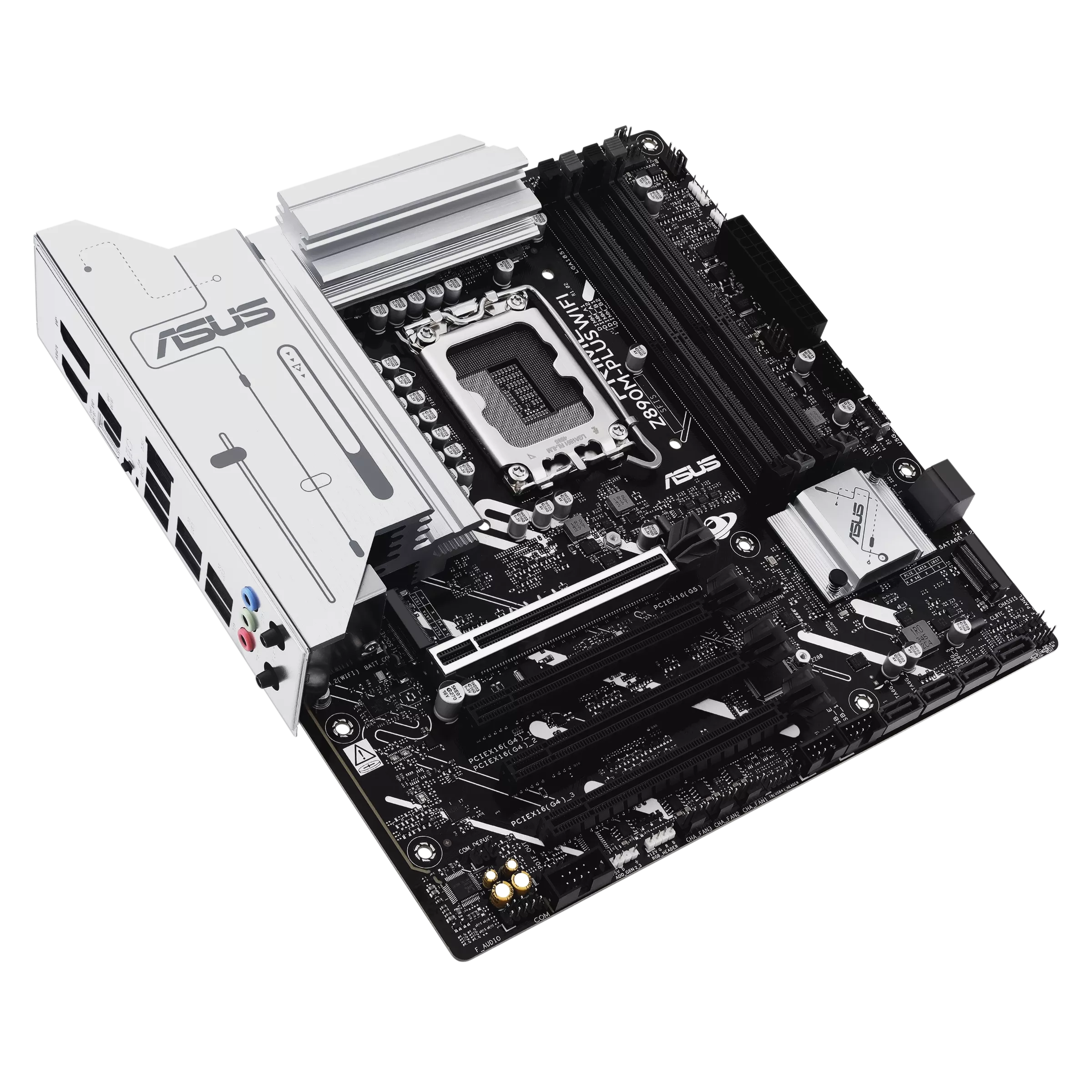

The ASUS PRIME Z890M-PLUS WIFI is part of the ASUS Prime motherboard range and is built as a compact but capable foundation for Intel LGA 1851 desktop systems. It supports DDR5 memory, a PCIe 5.0 x16 graphics slot, and three onboard M.2 slots for high-speed NVMe storage, making it suitable for gaming PCs, productivity systems, and general enthusiast builds. Its micro-ATX form factor helps it fit into smaller cases while still offering strong storage flexibility, modern rear I/O, integrated WiFi 7, and ASUS DIY-focused features. It is aimed at users who want a balanced current-generation Intel platform with solid connectivity and upgrade room in a more compact format.
Specifications
Chipset: Intel Z890
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: micro-ATX
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 192GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-7600+ (OC)
Memory profile support: Intel XMP, ASUS AEMP III
Primary graphics slot: 1 x PCIe 5.0 x16
Additional expansion slot: 1 x PCIe 4.0 x16 operating at x4
Additional expansion slots: 2 x PCIe 4.0 x16 operating at x1
Storage: 3 x M.2 slots
Primary M.2 support: PCIe 5.0 x4 NVMe
Additional M.2 support: 2 x PCIe 4.0 x4 NVMe
SATA: 6 x SATA 6Gb/s
Ethernet: Realtek 2.5Gb Ethernet

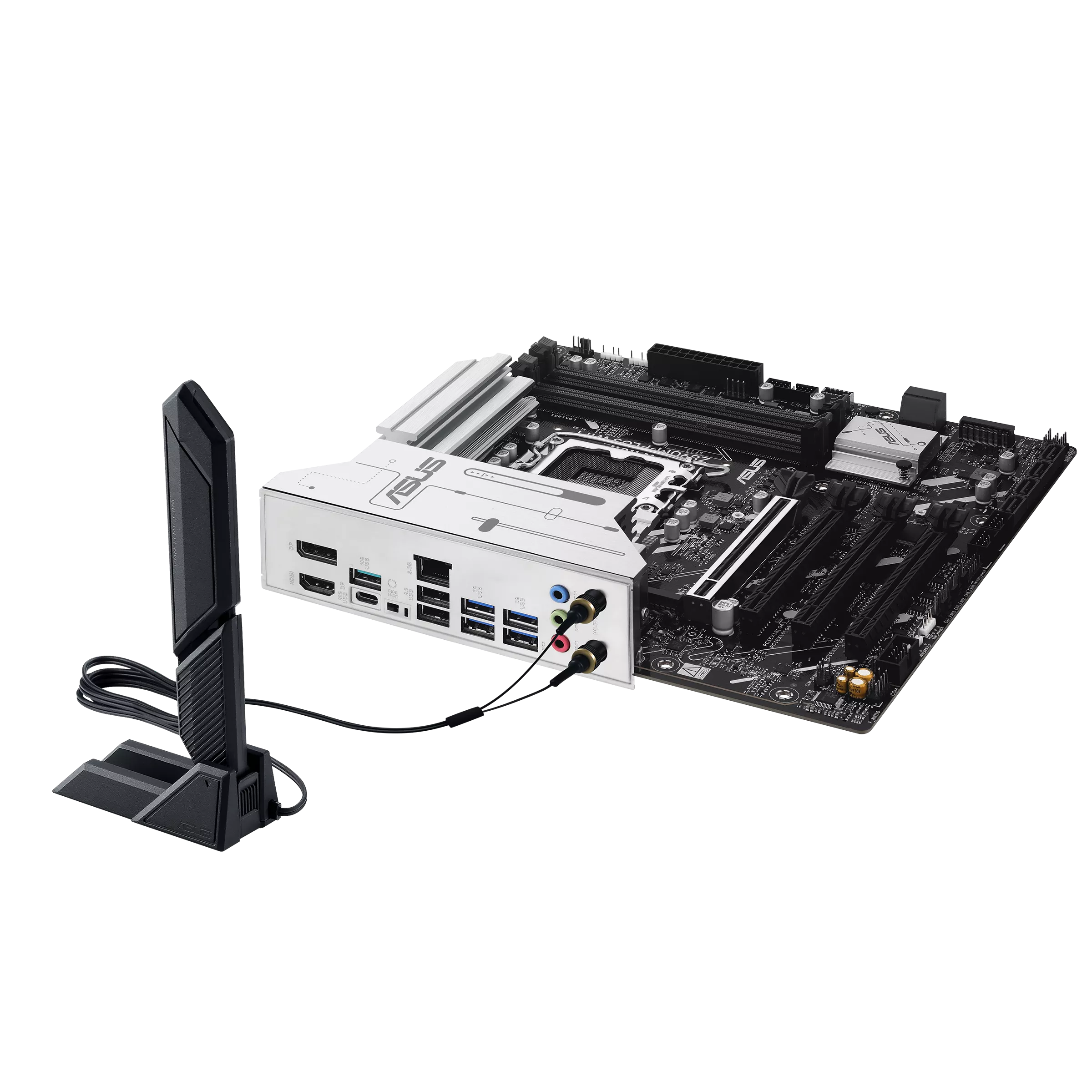

Wireless: WiFi 7

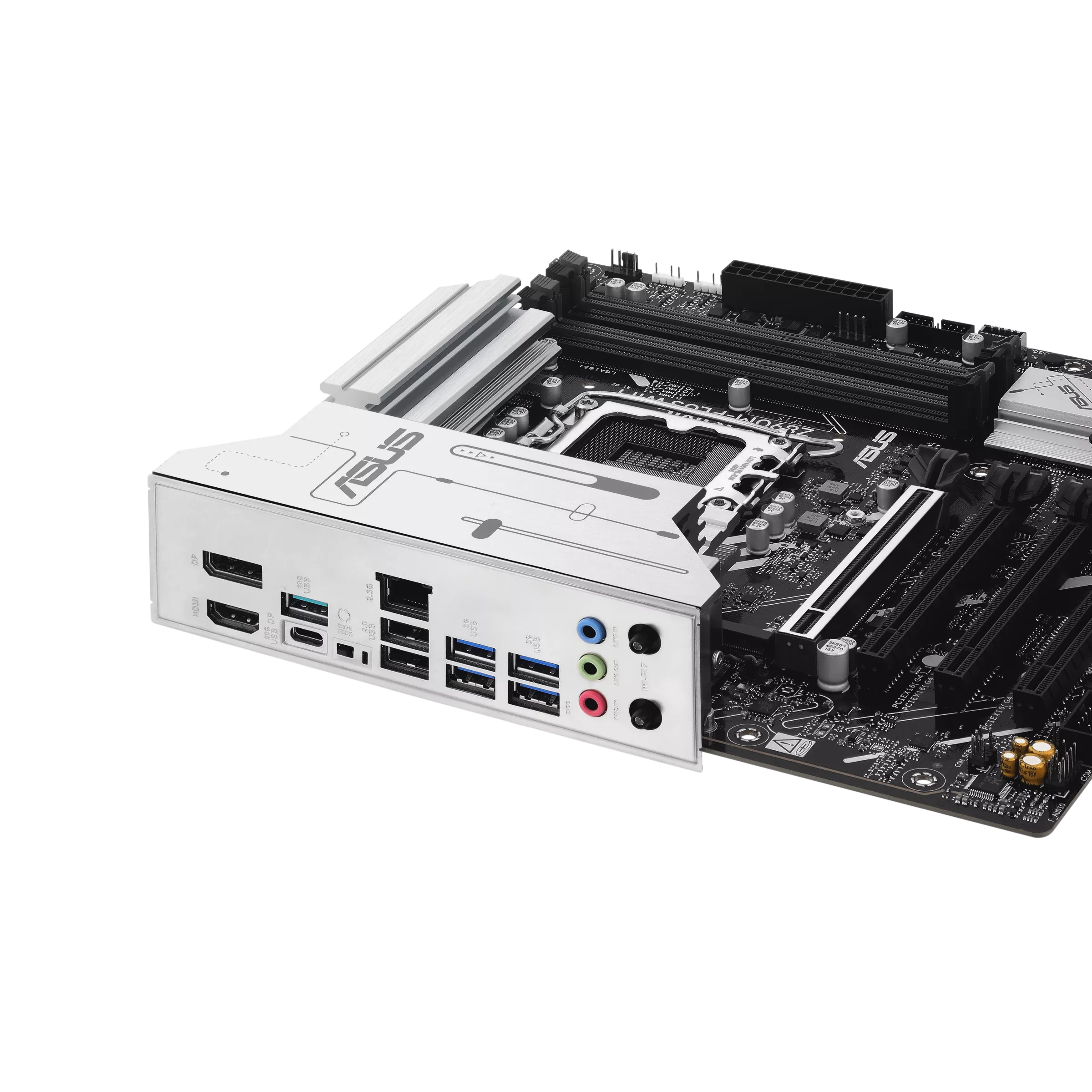

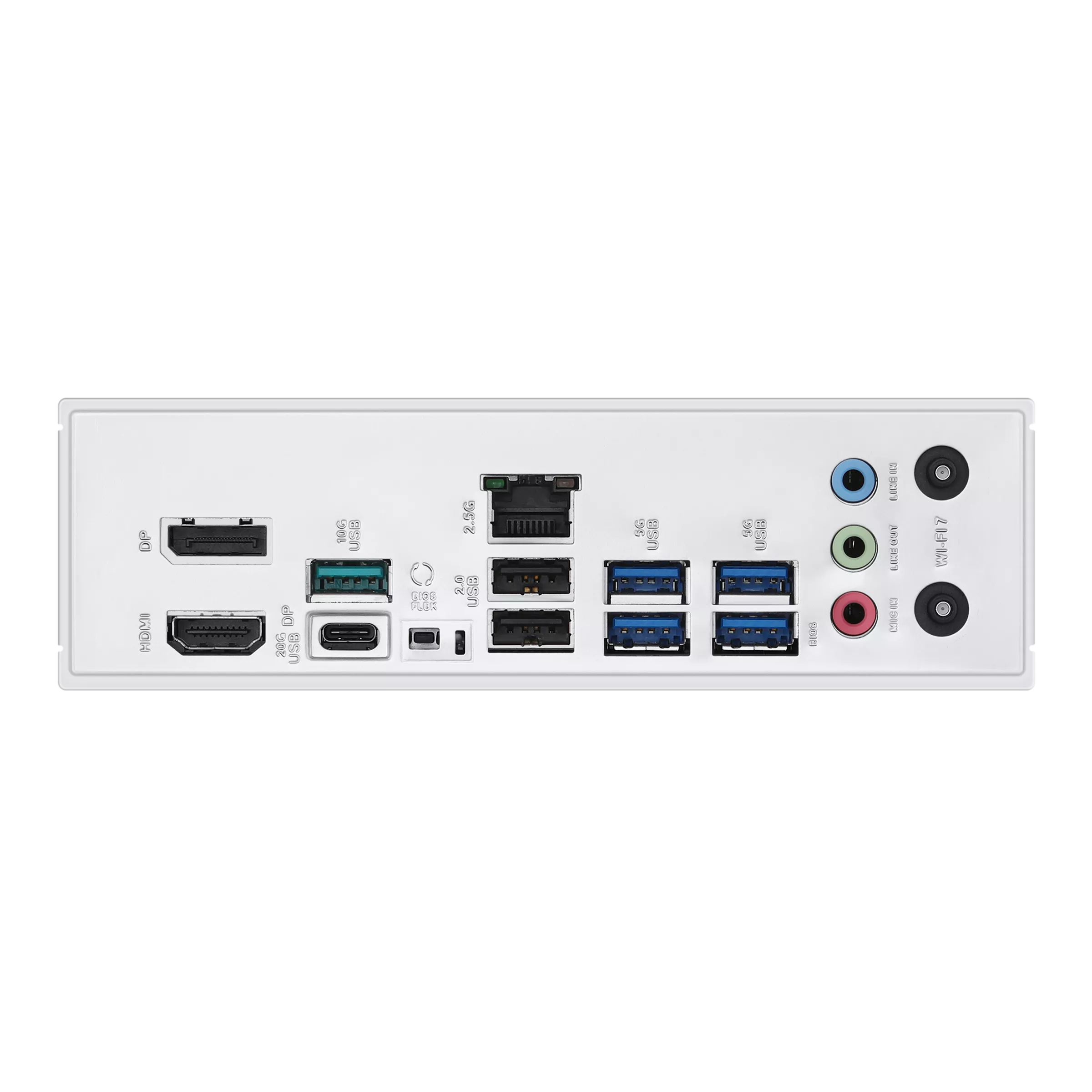

Rear USB: 1 x USB 20Gbps Type-C with DisplayPort Alt Mode
Rear USB: 1 x USB 10Gbps Type-A
Rear USB: 4 x USB 5Gbps Type-A
Rear USB: 4 x USB 2.0 Type-A
Front USB support: 1 x front USB 5Gbps Type-C header
Front USB support: USB header support for additional front-panel ports
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: High-definition audio
Special features: BIOS FlashBack, Thunderbolt header support, ASUS LANGuard, Aura Sync, ASUS DIY-friendly features
