Description

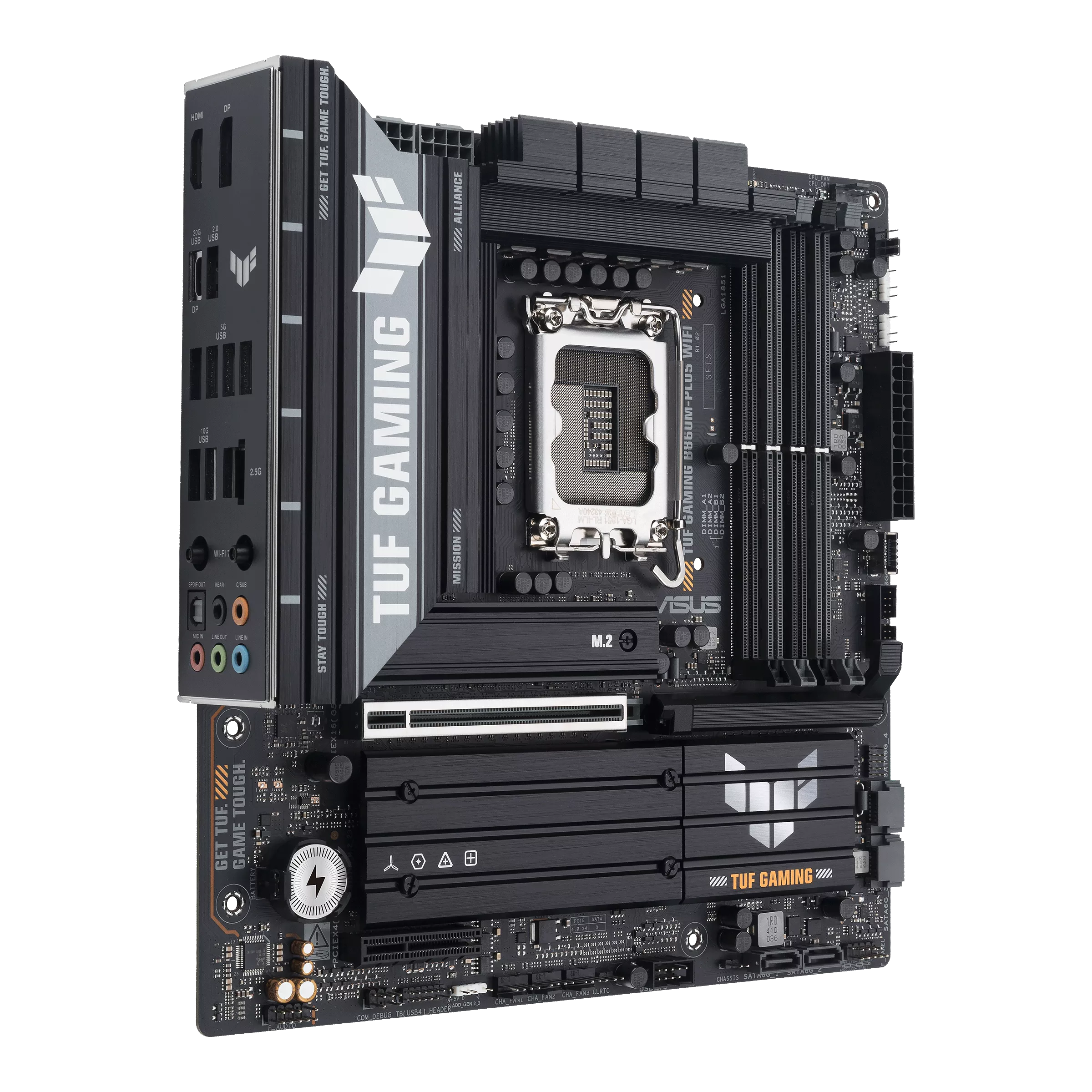

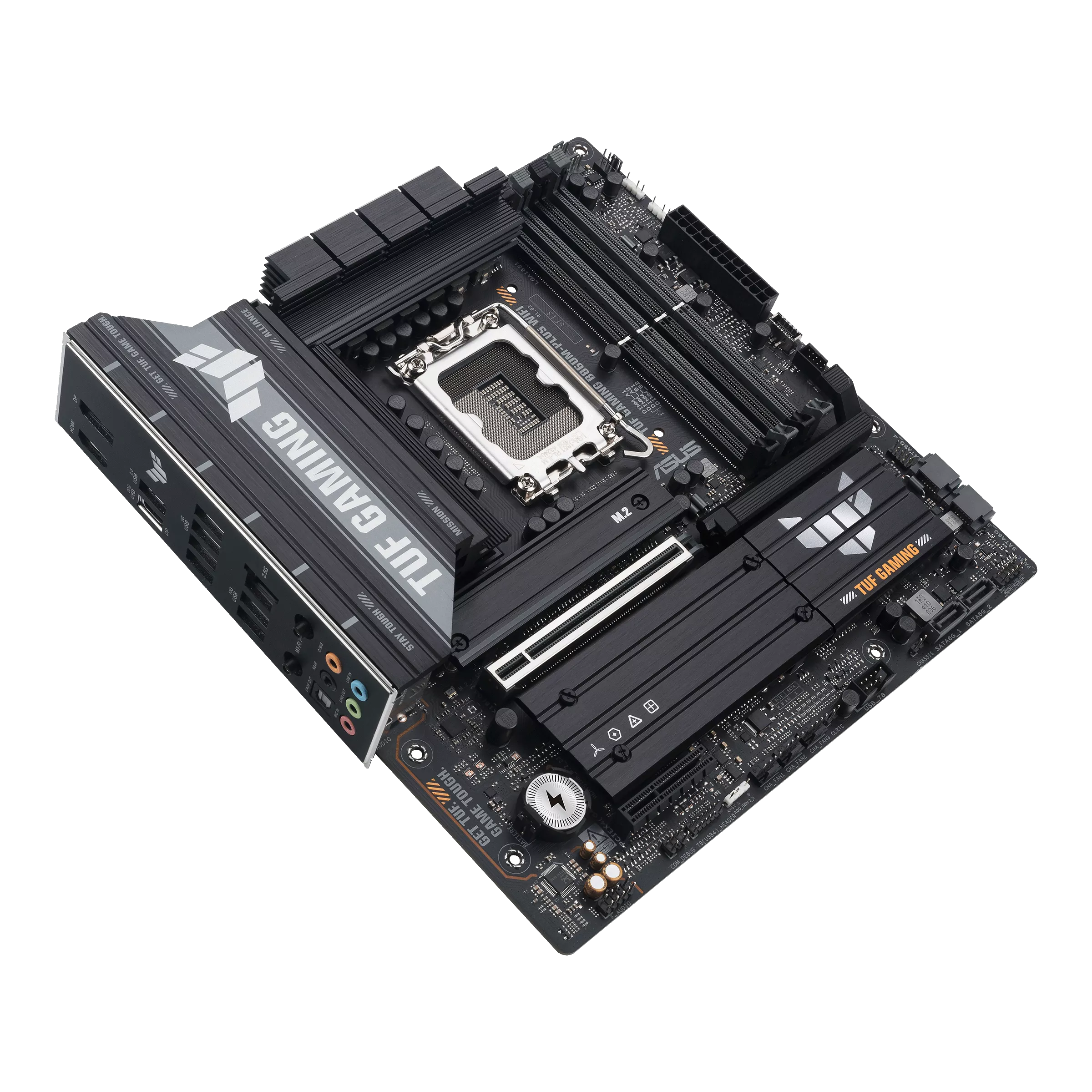

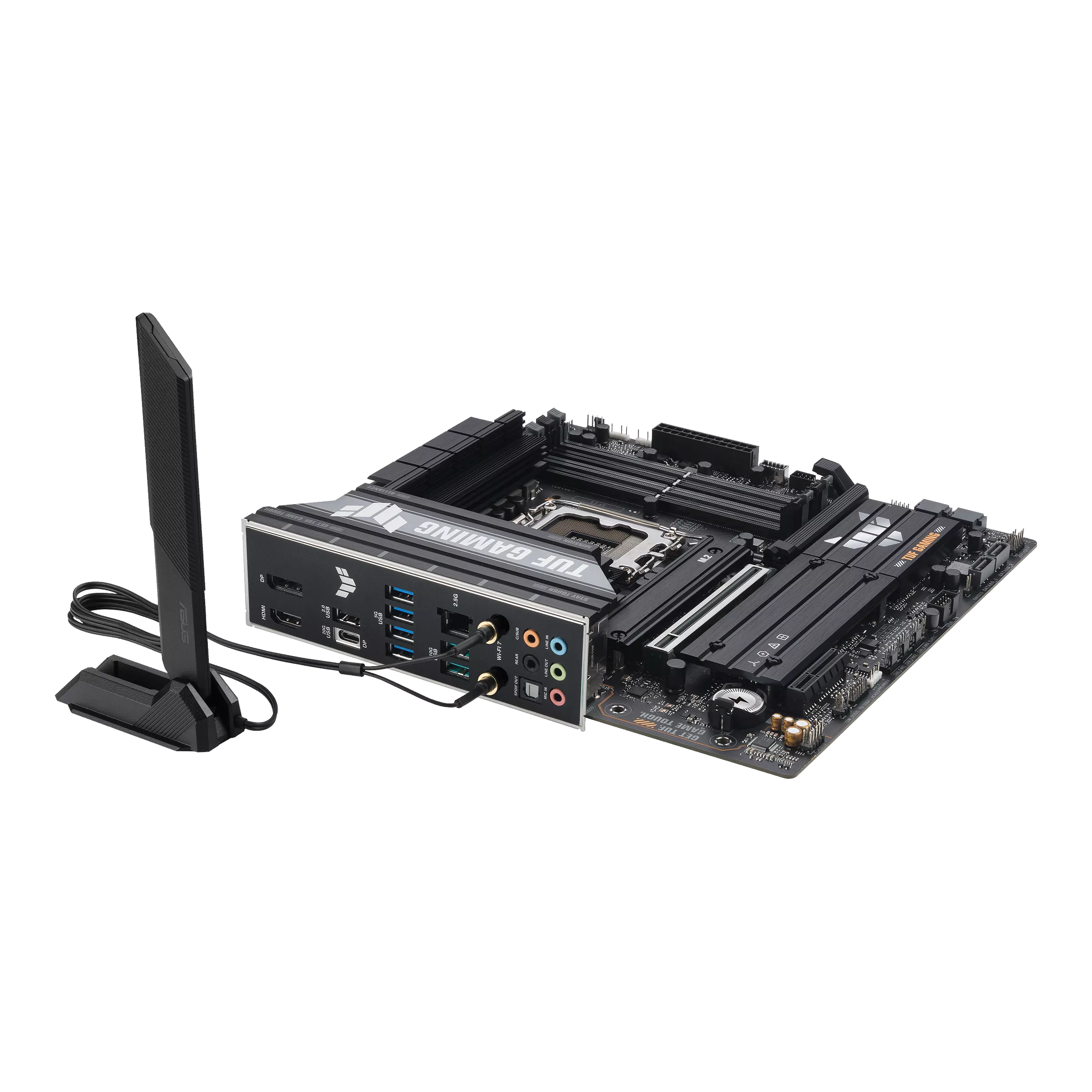

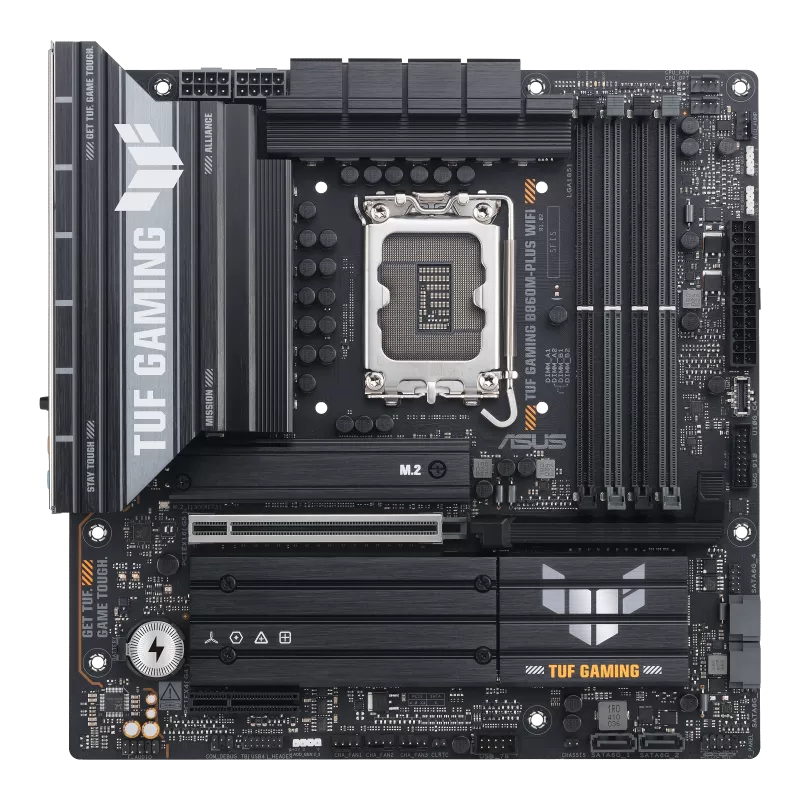

The ASUS TUF GAMING B860M-PLUS WIFI is part of ASUS’s TUF Gaming motherboard range and is built to provide a reliable foundation for current-generation Intel desktop systems. Its micro-ATX layout makes it suitable for more compact builds while still offering a full-speed PCIe 5.0 x16 slot for graphics, multiple onboard M.2 slots for NVMe storage, integrated WiFi 7, and high-speed wired networking. Like other TUF Gaming models, it focuses on reinforced construction, practical thermal design, and dependable operation under sustained load, making it well suited to gaming PCs, productivity systems, and general enthusiast builds.
Specifications
Chipset: Intel B860
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: micro-ATX
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: Up to 256GB
Memory profile support: Intel XMP 3.0
Primary graphics slot: 1 x PCIe 5.0 x16
Additional expansion slot: 1 x PCIe 4.0 x4
Storage: 3 x M.2 slots
Primary M.2 support: PCIe 5.0 x4
Additional M.2 support: 2 x PCIe 4.0 x4
SATA: 4 x SATA 6Gb/s
Ethernet: Realtek 2.5Gb Ethernet
Wireless: WiFi 7
Bluetooth: Bluetooth 5.4
Front USB support: 1 x USB 10Gbps Type-C front-panel connector
Power connectors: 1 x 24-pin main power, 2 x 8-pin +12V power connectors
Protection feature: TUF LANGuard
