Description

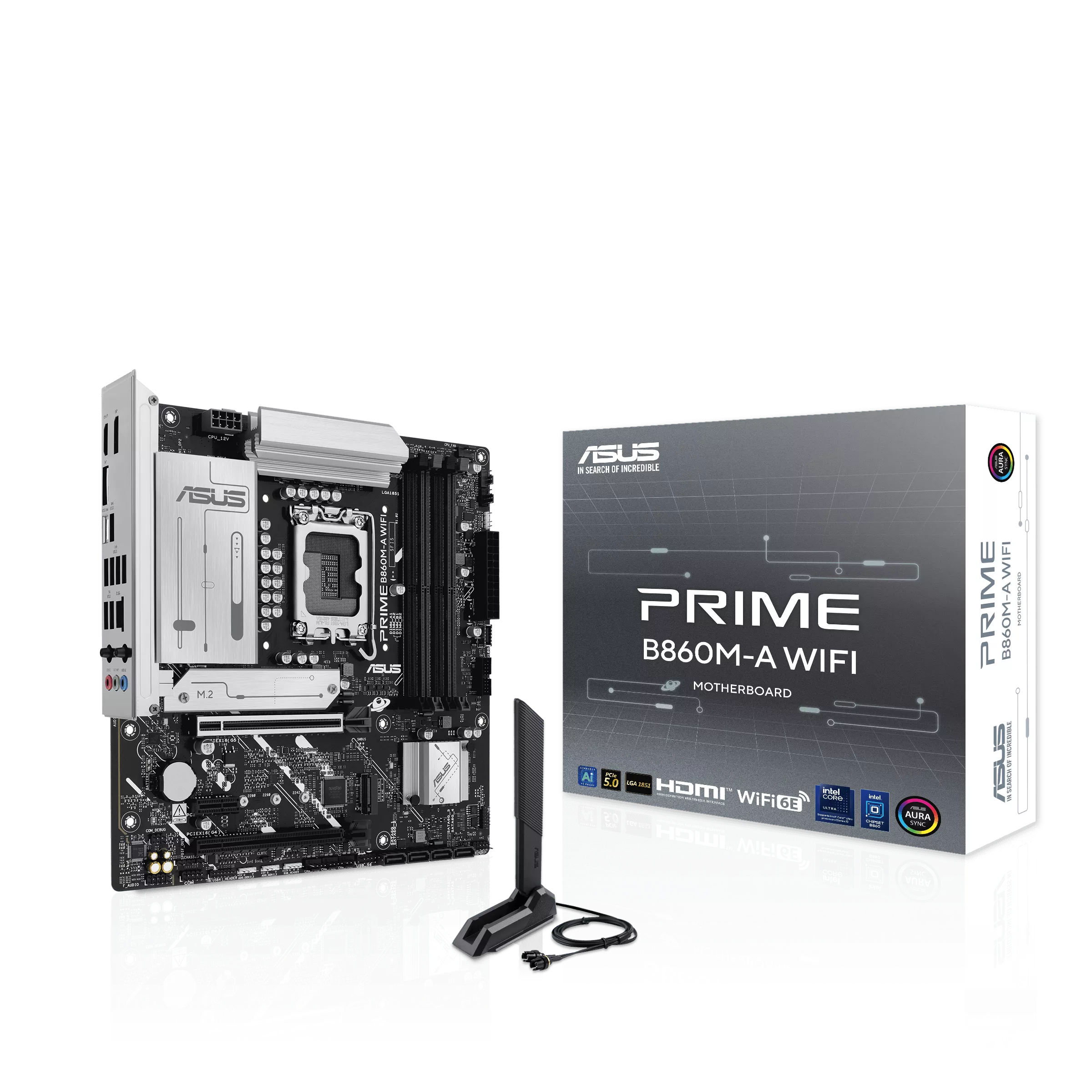

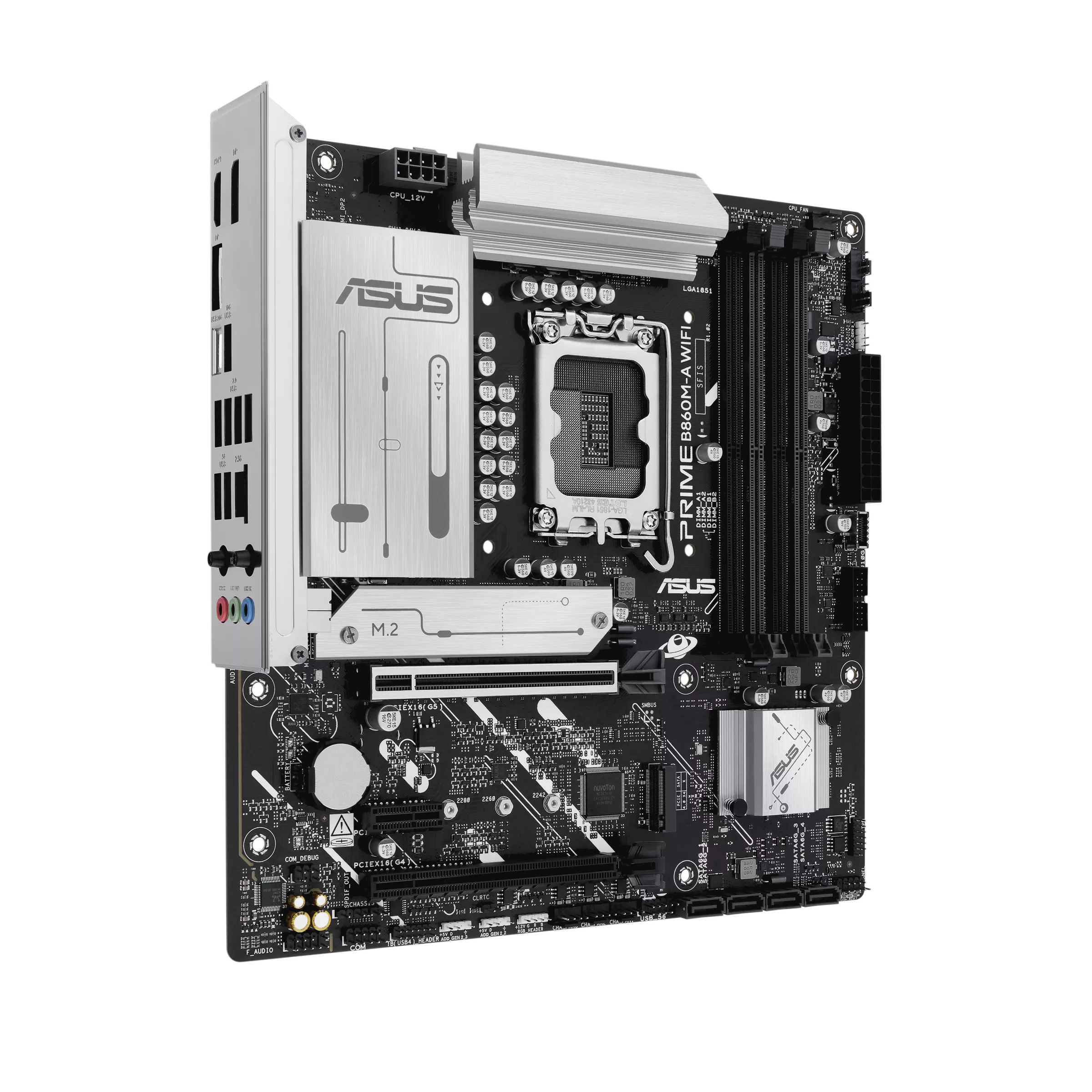

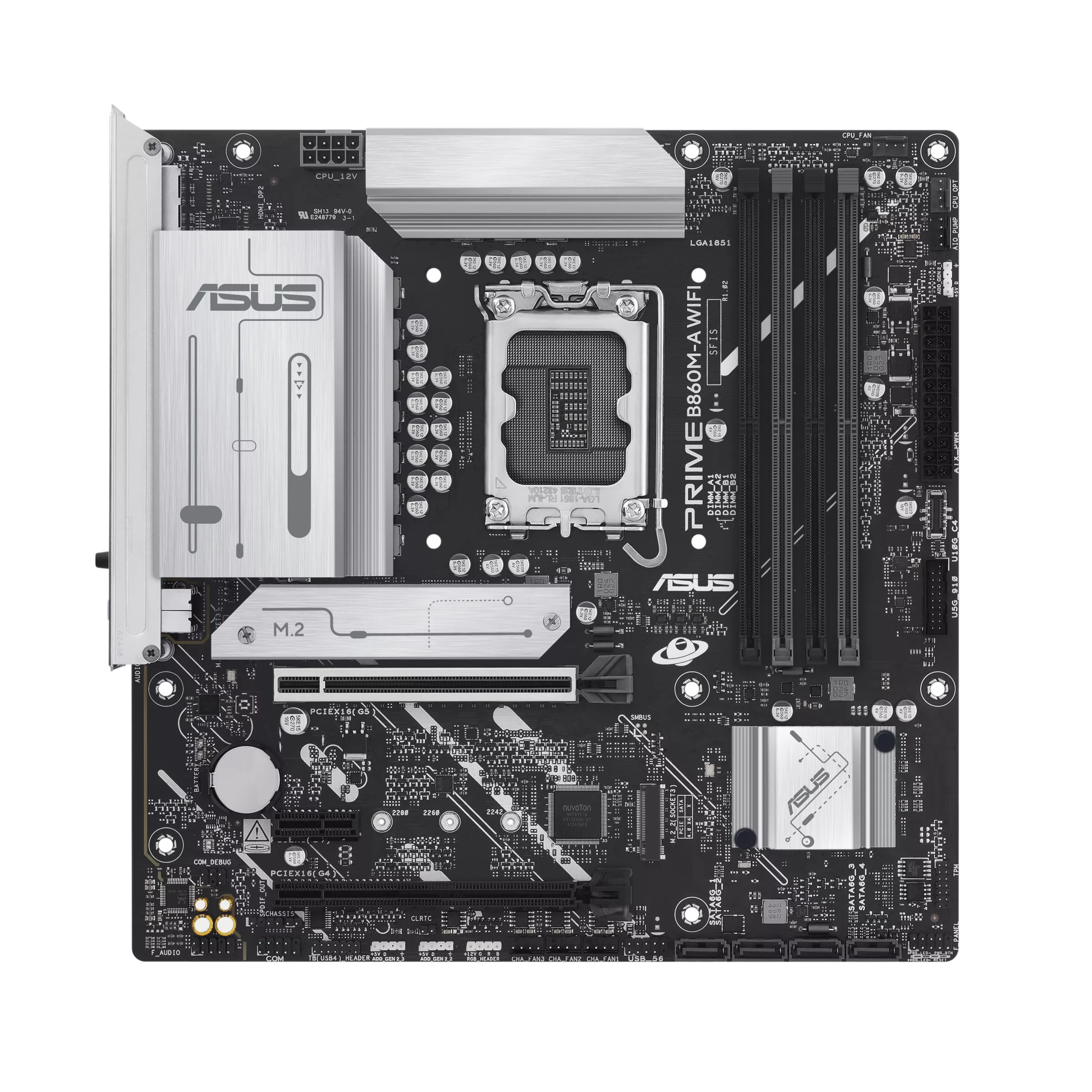

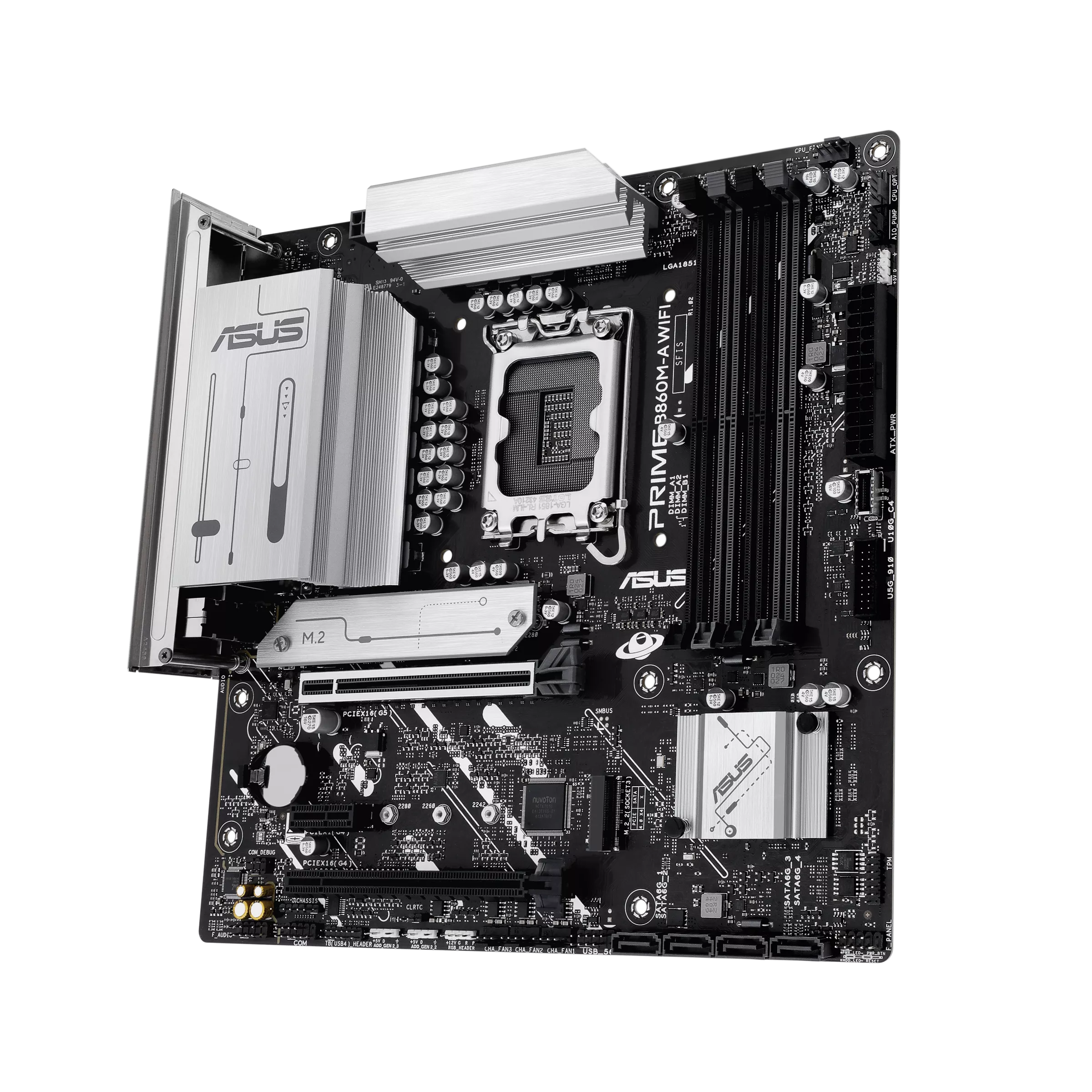

The ASUS PRIME B860M-A WIFI is part of the ASUS Prime motherboard range and is built as a compact foundation for Intel LGA 1851 desktop systems. It supports Intel Core Ultra Series 2 processors, DDR5 memory, and a PCIe 5.0 x16 graphics slot, while also offering two onboard M.2 slots for NVMe SSD storage and four SATA ports for additional drives. Its micro-ATX design makes it suitable for smaller PC cases without giving up essential modern features, and its combination of WiFi 6E, 2.5Gb Ethernet, multiple display outputs, and front USB support makes it well suited to home, office, and mainstream custom PC builds.
Specifications
Chipset: Intel B860
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: micro-ATX
Power design: 7+1+1+1 power stages, 80A
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 256GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-8666+ (OC)
Memory tuning support: AEMP III
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot
Additional expansion slot: 1 x PCIe 4.0 x16 operating at x4
Additional expansion slot: 1 x PCIe 4.0 x1
Storage: 2 x M.2 slots
Primary M.2 support: PCIe 5.0 x4 NVMe
Secondary M.2 support: PCIe 4.0 x4 NVMe
SATA: 4 x SATA 6Gb/s
Ethernet: Realtek 2.5Gb Ethernet
Wireless: WiFi 6E
Bluetooth: Bluetooth support
Display outputs: 2 x DisplayPort
Display outputs: 1 x HDMI
Rear USB: USB Type-C and USB Type-A connectivity
Front USB support: Front-panel USB Type-C and USB Type-A header support
Audio: High-definition audio
Cooling features: VRM heatsinks, M.2 heatsink, chassis fan headers
Special features: ASUS LANGuard, Aura Sync, SafeSlot, DIY-friendly motherboard features
