Description

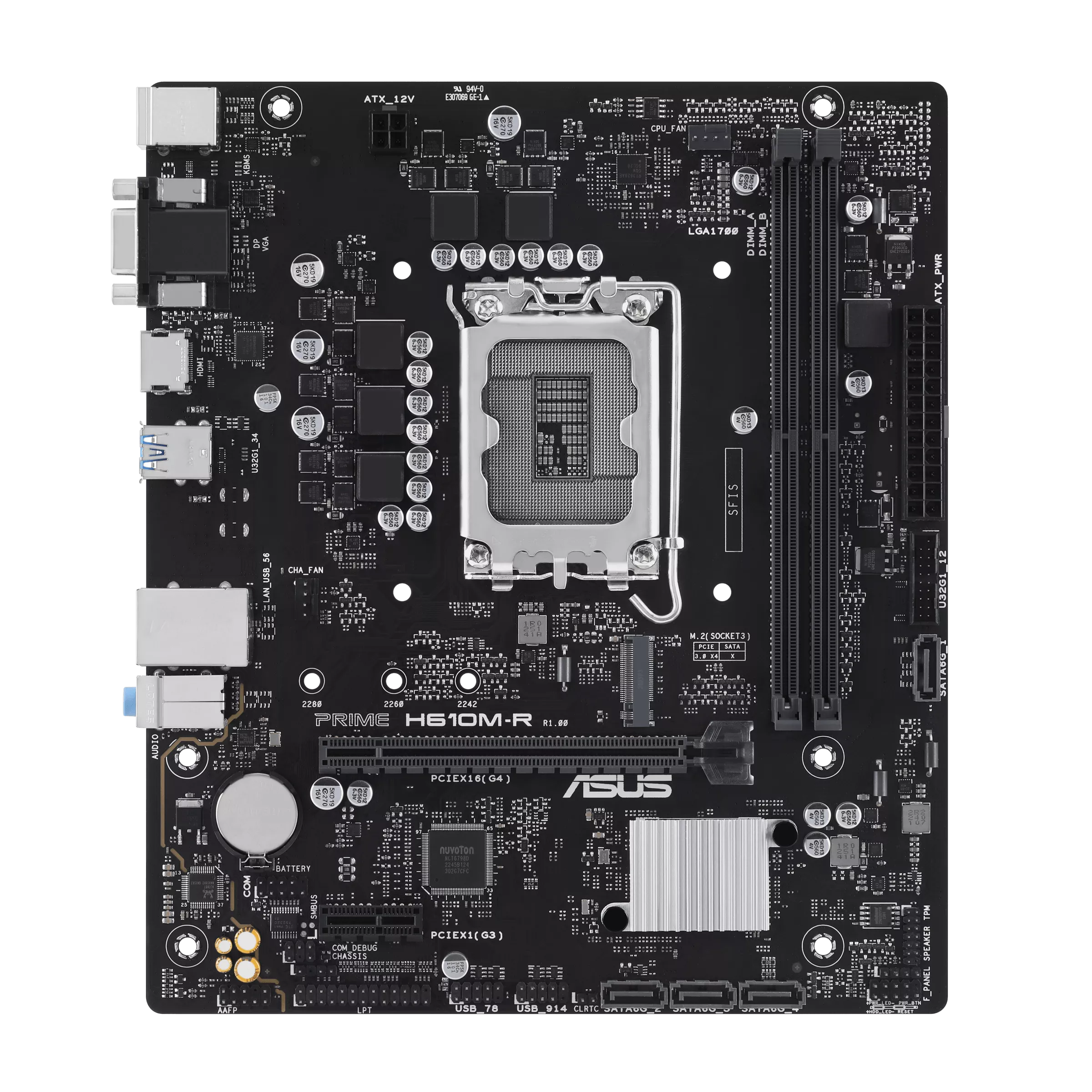

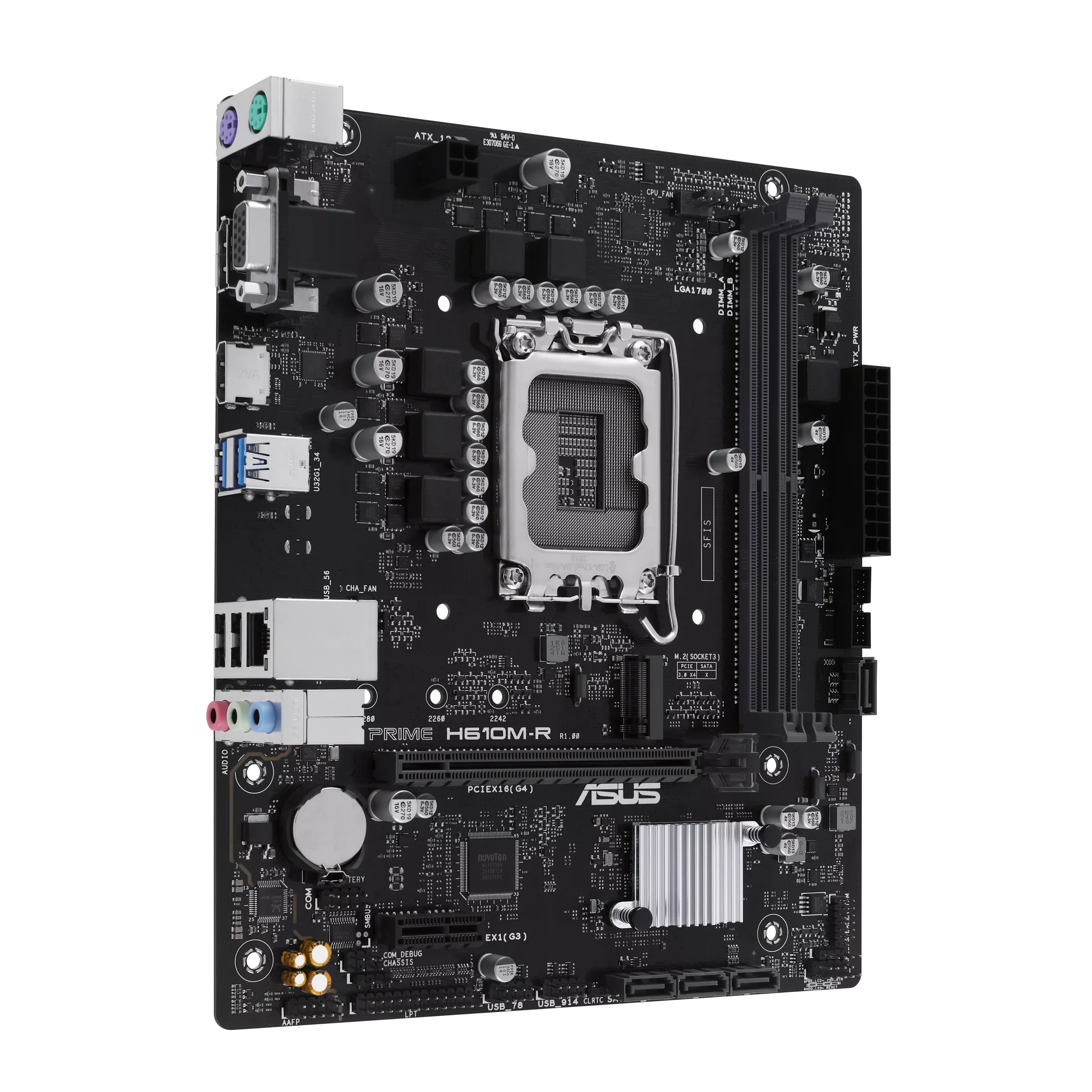

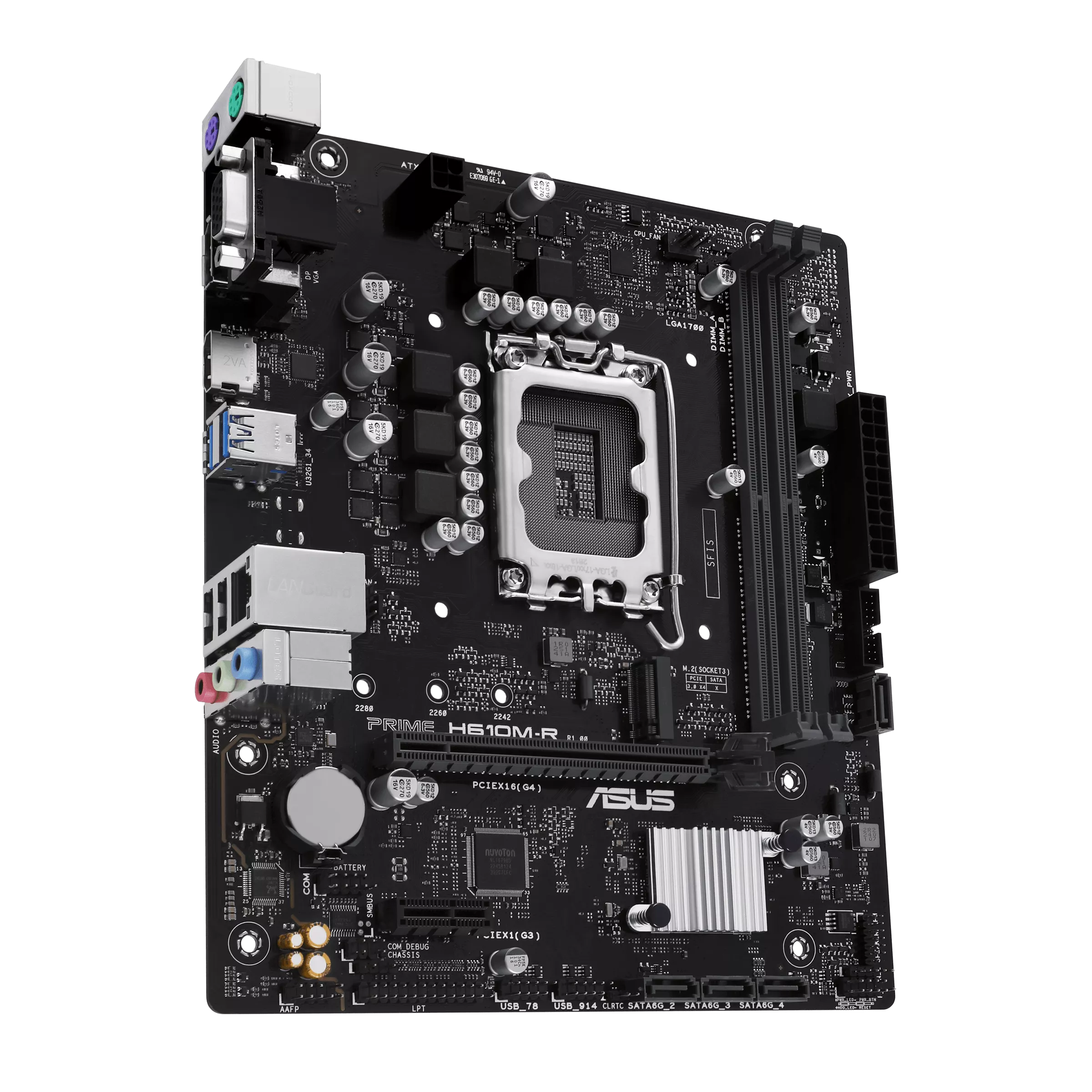

The ASUS PRIME H610M-R-SI is part of the ASUS Prime motherboard range and is built as a practical micro-ATX solution for Intel LGA 1700 systems. It supports modern Intel desktop CPUs, DDR5 memory, and PCIe 4.0 for the main graphics slot, while also offering an M.2 slot for NVMe SSD storage and multiple SATA ports for additional drives. Its compact board size makes it suitable for smaller desktop cases, while still providing the core features needed for everyday computing, home use, office workloads, and budget-oriented PC builds. The board also includes legacy-friendly connectivity such as VGA and internal COM and LPT support, which can be useful in certain business or system-integrator environments.
Specifications
Chipset: Intel H610
Socket: Intel LGA 1700
CPU support: Intel Core 14th Gen, 13th Gen, and 12th Gen processors, Pentium Gold, and Celeron processors
Form factor: micro-ATX
Memory type: DDR5
Memory support: 2 x DIMM slots
Memory architecture: Dual-channel
Primary graphics slot: 1 x PCIe 4.0 x16
Additional expansion slot: 1 x PCIe 3.0 x1
Storage: 1 x M.2 slot
M.2 support: PCIe NVMe support up to 32Gbps
SATA: 4 x SATA 6Gb/s
Ethernet: Realtek 1Gb Ethernet

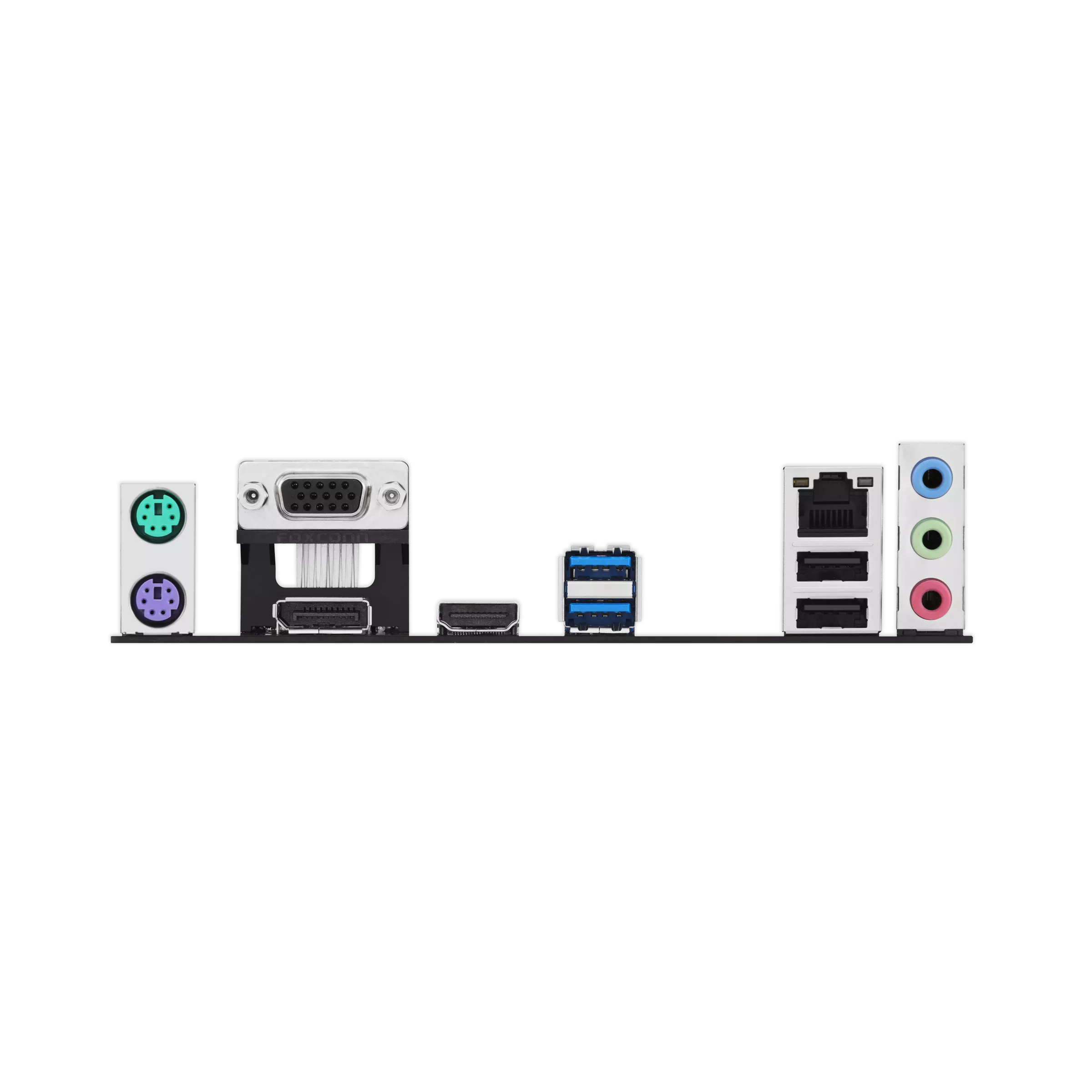

Rear USB: 2 x USB 3.2 Gen 1 Type-A
Rear USB: 2 x USB 2.0 Type-A
Front USB support: 1 x USB 3.2 Gen 1 header
Front USB support: 2 x USB 2.0 headers
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Display outputs: 1 x VGA
Audio: High-definition audio
Cooling: PCH heatsink
Fan headers: 1 x CPU fan header, 1 x chassis fan header
Power connectors: 1 x 24-pin main power, 1 x 4-pin CPU power
Special features: 5X Protection III, COM header, LPT header, TPM header, Clear CMOS header
