Description

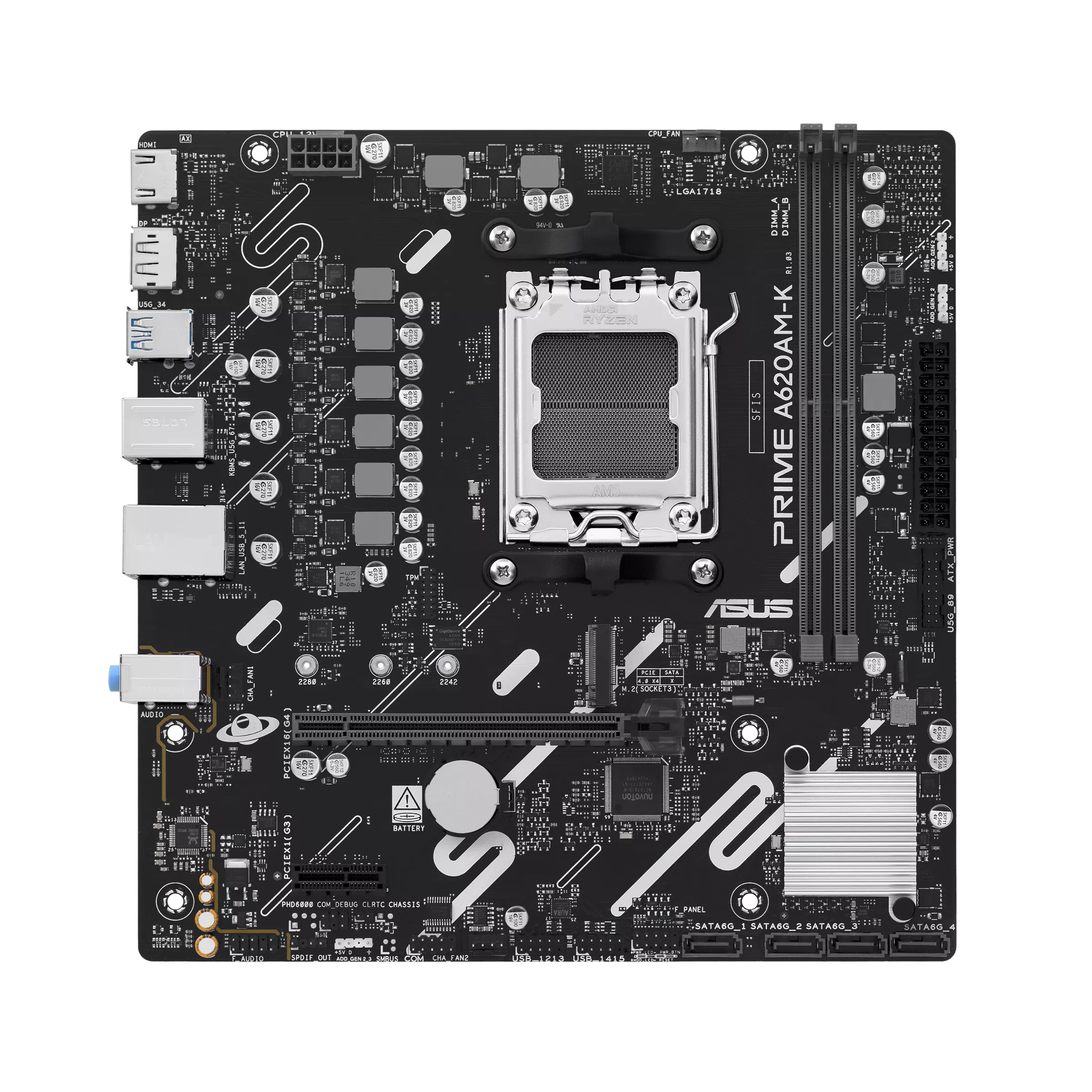

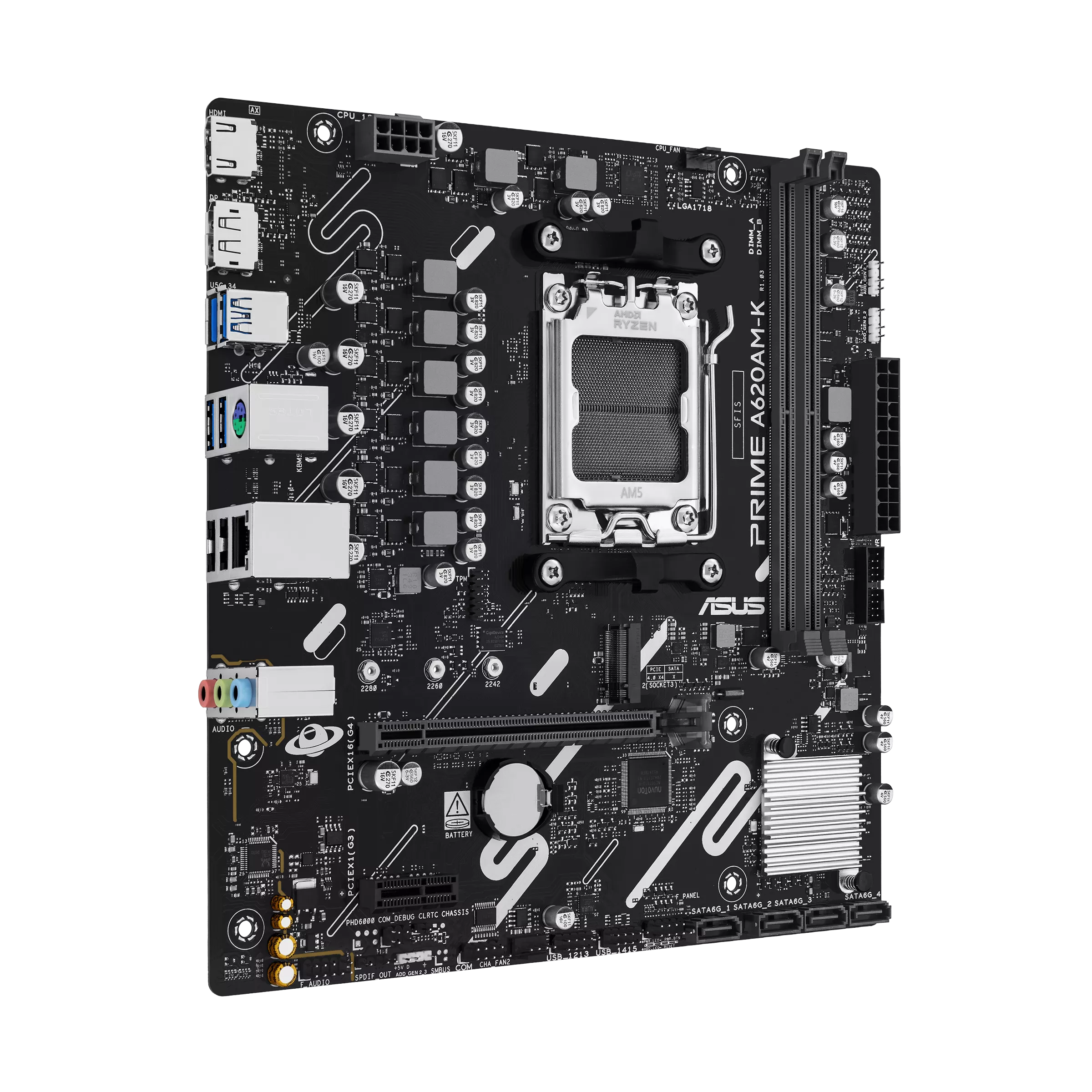

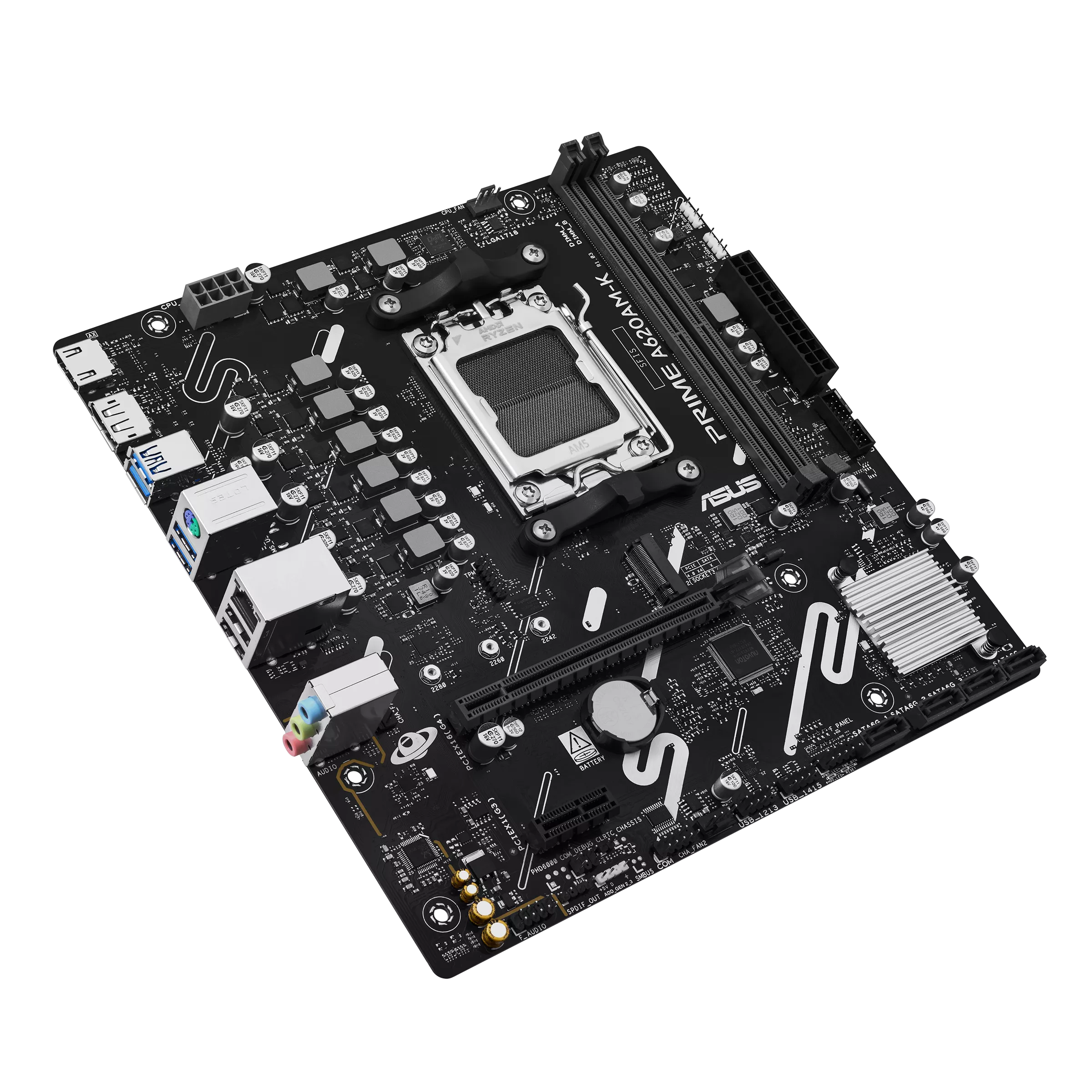

The ASUS PRIME A620M-K is designed for users who want a straightforward and dependable AM5 motherboard for modern AMD builds. Based on the AMD A620 chipset, it supports AMD Ryzen 7000, 8000, and 9000 Series desktop processors, making it a practical entry point into the AM5 platform for users who want DDR5 support and next-generation upgrade potential without stepping into more expensive motherboard ranges.
Its micro-ATX layout makes it suitable for compact desktop systems while still providing the features most users actually need. The board supports dual-channel DDR5 memory through two DIMM slots, giving enough memory bandwidth and capacity for modern multitasking, office use, content consumption, and mainstream gaming. It also includes a PCIe 4.0 x16 graphics slot for modern GPUs, making it suitable for both integrated graphics builds and dedicated gaming graphics card setups.
Storage support is kept practical and effective. The motherboard includes one PCIe 4.0 M.2 slot for high-speed NVMe SSDs as well as four SATA 6Gb/s ports for larger hard drives or additional SSD storage. This gives builders the flexibility to use a fast boot drive while still adding extra capacity for games, files, media, or backups.
For connectivity, the board includes HDMI and VGA display outputs for use with supported Ryzen processors that feature integrated graphics, along with Realtek Gigabit Ethernet for stable wired networking. ASUS also includes useful protection and control features such as Aura Sync support, Q-LED Core diagnostics, and ASUS 5X Protection III, helping make the board a sensible choice for users who want a stable, modern AM5 platform for a value-focused system.
Specifications
Chipset: AMD A620
Socket: AMD AM5
Form Factor: Micro-ATX
CPU Support:
Supports AMD Ryzen 9000 Series desktop processors
Supports AMD Ryzen 8000 Series desktop processors
Supports AMD Ryzen 7000 Series desktop processors
Memory Support:
2 x DDR5 DIMM slots
Dual-channel memory architecture
Up to 96GB memory support
Supports AMD EXPO memory profiles
Supports DDR5 overclocking
Graphics Outputs:
1 x HDMI
1 x VGA
Expansion Slots:
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage:
1 x M.2 slot
4 x SATA 6Gb/s ports
Supports NVMe SSD storage
RAID support available
Networking:
1 x Realtek 1Gb Ethernet port
USB Connectivity:
Rear USB 5Gbps Type-A ports
Front USB 5Gbps header support
Additional USB 2.0 connectivity through rear I/O and headers
Cooling and Protection Features:
ASUS 5X Protection III
Q-LED Core
Fan control support
2-ounce copper PCB design
Aura Sync support
