Description

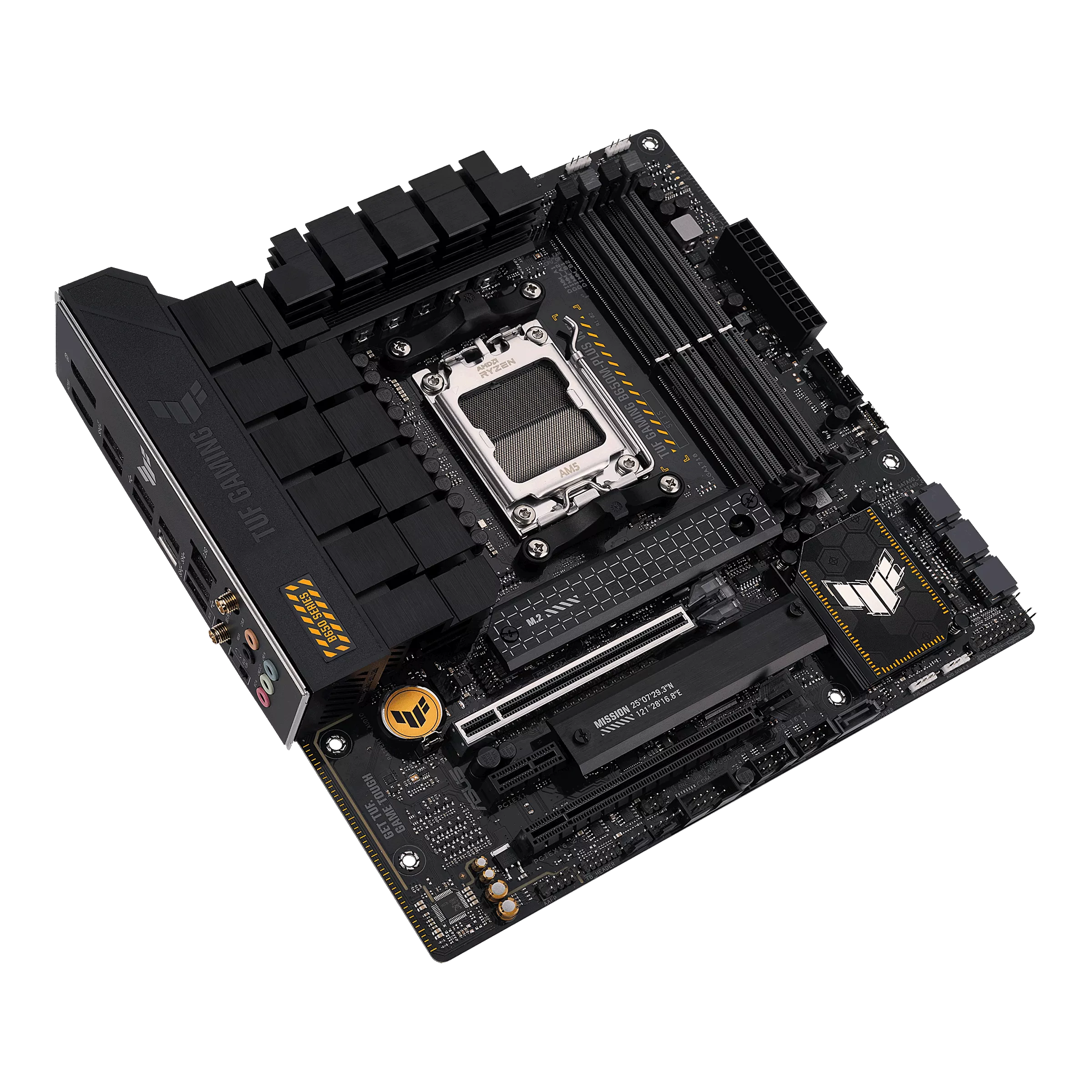

The ASUS TUF GAMING B650M-PLUS WIFI is designed for AMD Ryzen AM5 desktop platforms and balances performance, durability, and modern connectivity in a compact micro-ATX form factor. It supports DDR5 memory, high-speed NVMe storage, PCIe 5.0 support for its primary M.2 slot, and built-in wireless networking for flexible system placement. As part of the TUF Gaming range, it focuses on dependable components, solid VRM cooling, and practical expansion for gaming and general enthusiast use. Its combination of wired and wireless networking, multiple USB options, and modern display outputs also makes it a strong foundation for current-generation gaming and productivity systems.
Specifications
Chipset: AMD B650
Socket: AMD Socket AM5
CPU support: AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series desktop processors
Form factor: micro-ATX
Memory support: 4 x DIMM slots
Maximum memory: 128GB
Memory type: DDR5
Memory architecture: Dual-channel
Memory support profile: AMD EXPO
Storage: 2 x M.2 slots
Primary M.2 support: PCIe 5.0 x4
Secondary M.2 support: PCIe 4.0 x4
SATA: 4 x SATA 6Gb/s
Ethernet: 1 x Realtek 2.5Gb Ethernet
Wireless: Wi-Fi 6
Bluetooth: Bluetooth 5.2

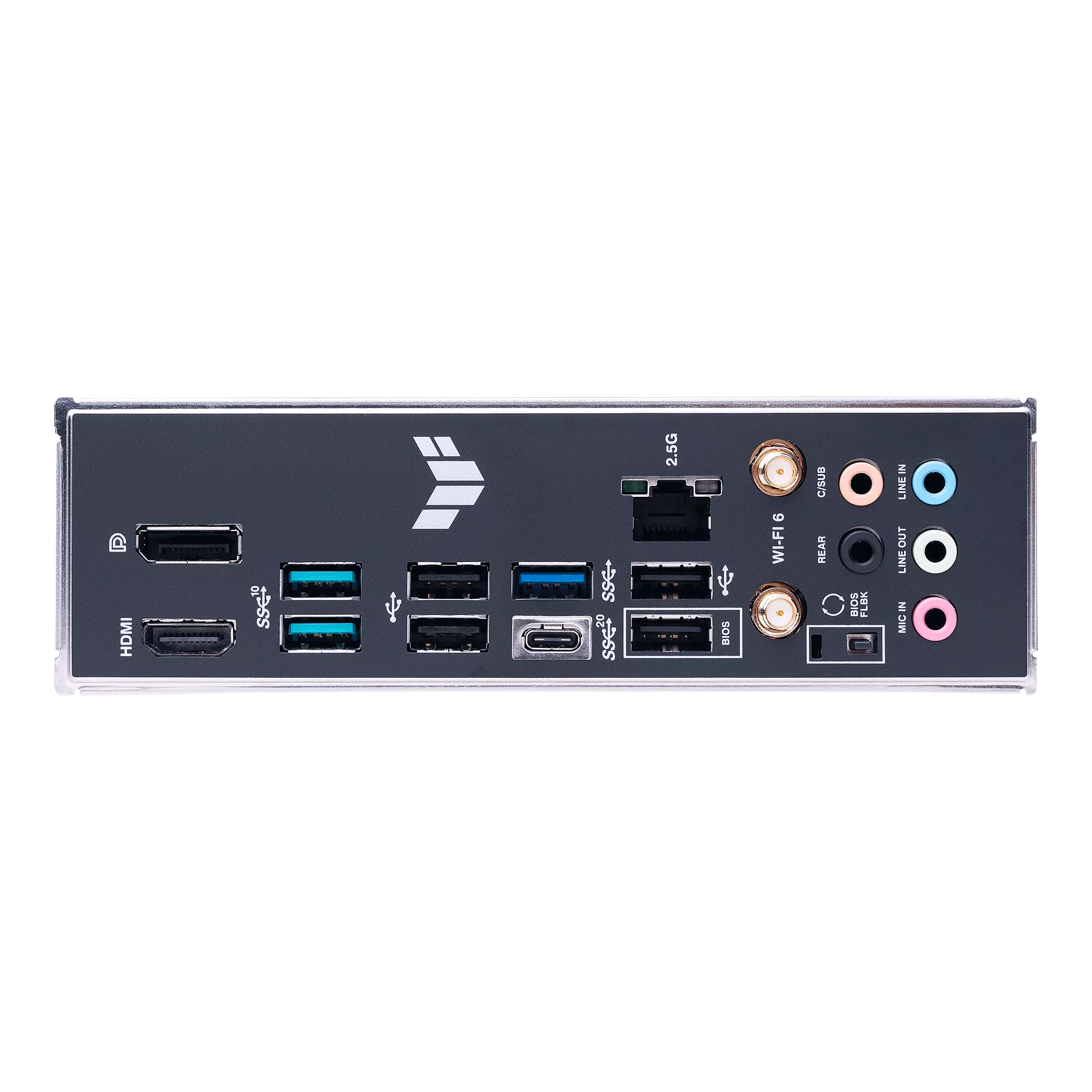

Rear USB: 1 x USB 3.2 Gen 2×2 Type-C
Rear USB: 2 x USB 3.2 Gen 2 Type-A
Rear USB: 1 x USB 3.2 Gen 1 Type-A
Rear USB: 4 x USB 2.0 Type-A
Front USB support: 1 x USB 3.2 Gen 1 Type-C connector
Front USB support: 1 x USB 3.2 Gen 1 header
Front USB support: 2 x USB 2.0 headers
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: 5 x audio jacks
Expansion slots: 1 x PCIe x16 slot
Expansion slots: 1 x PCIe x16 slot operating at x4
Expansion slots: 1 x PCIe x1 slot
BIOS feature: BIOS FlashBack button
Networking protection: TUF LANGuard
PCB design: 6-layer PCB
Power design: 12+2+2 power stages
Cooling design: Enlarged VRM heatsinks
