Description

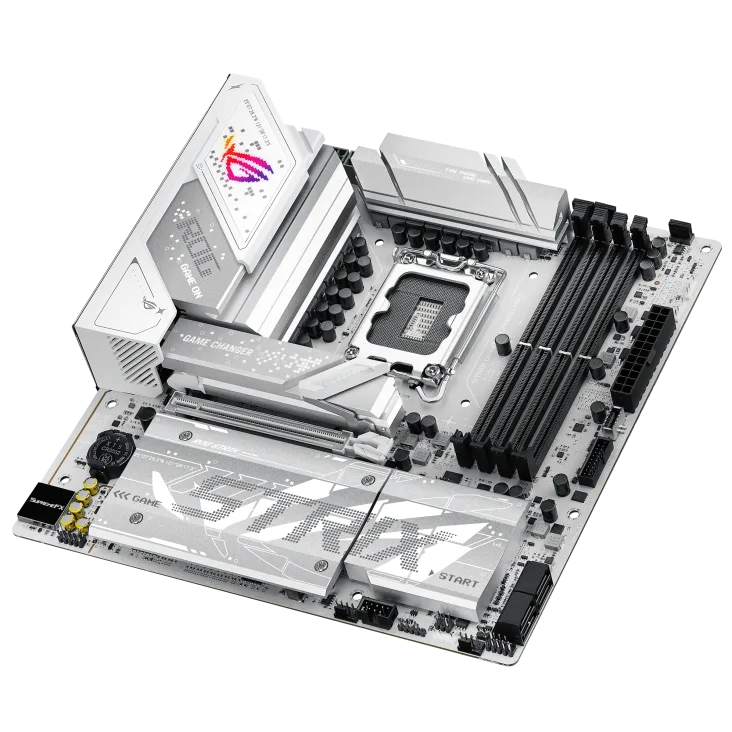

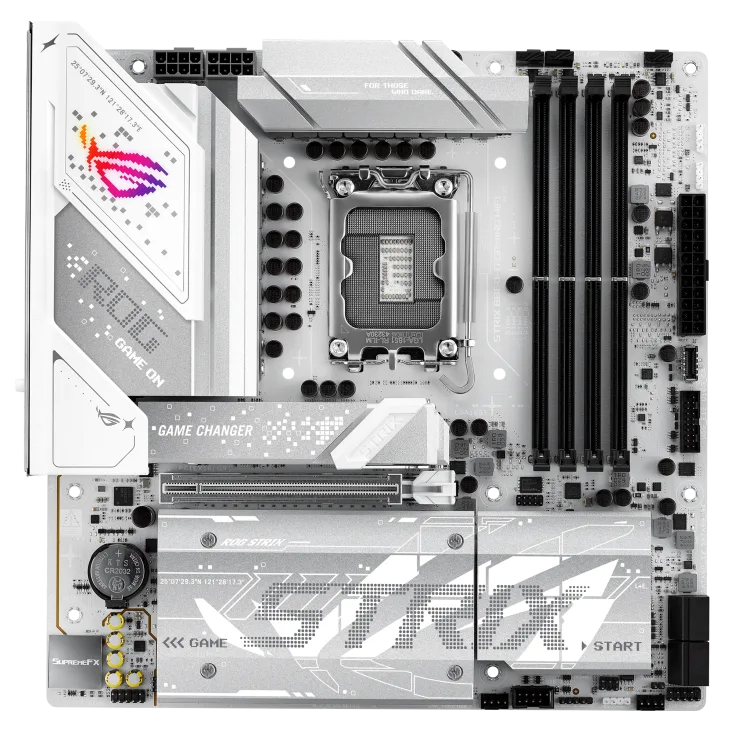

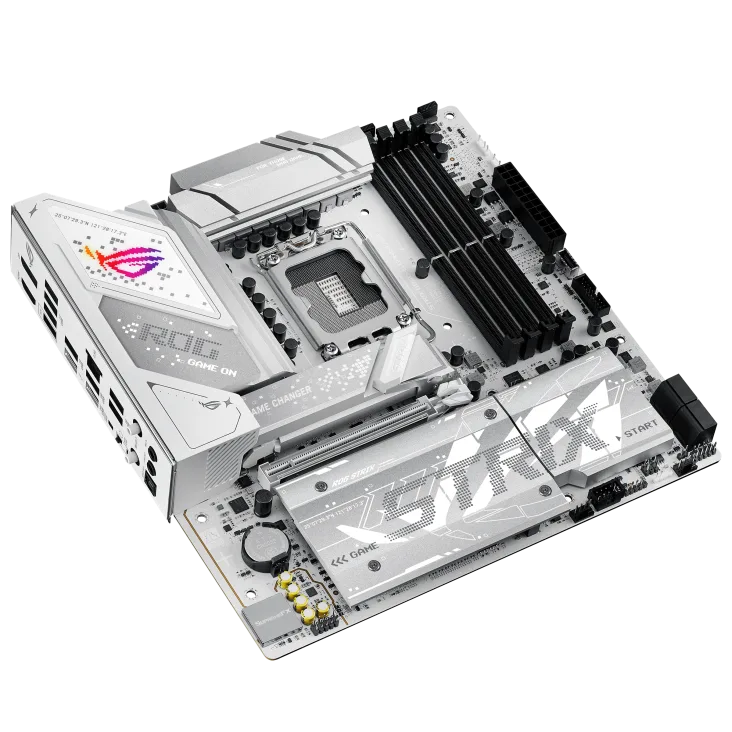

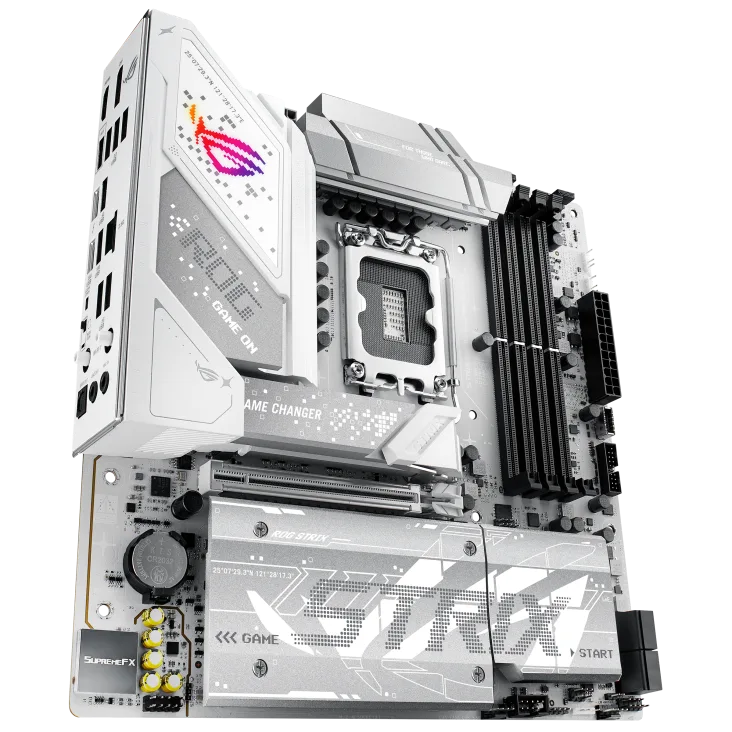

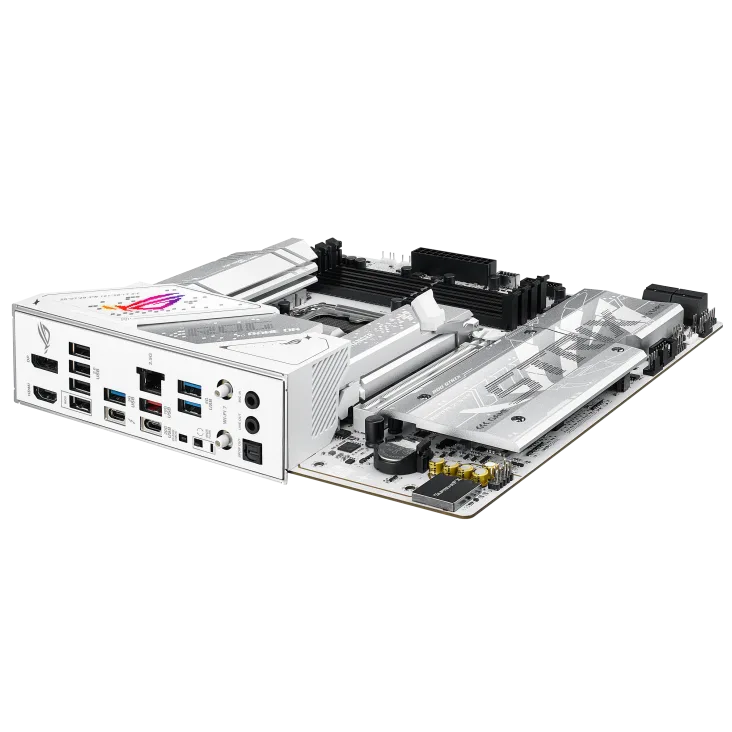

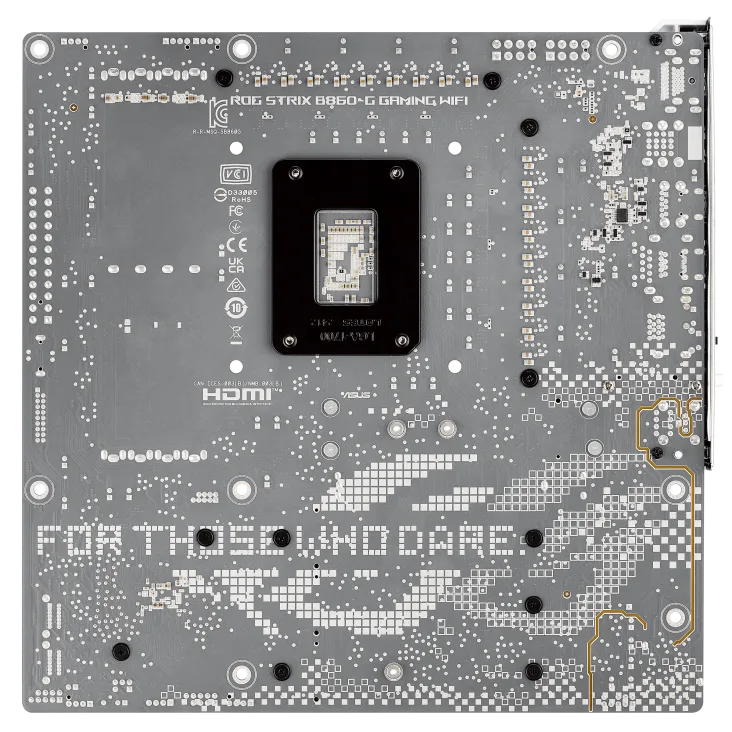

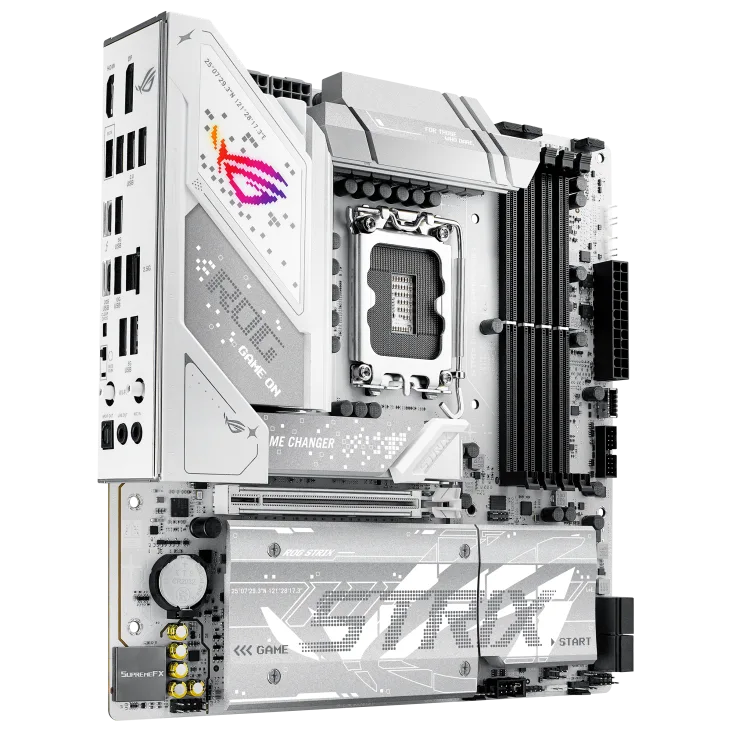

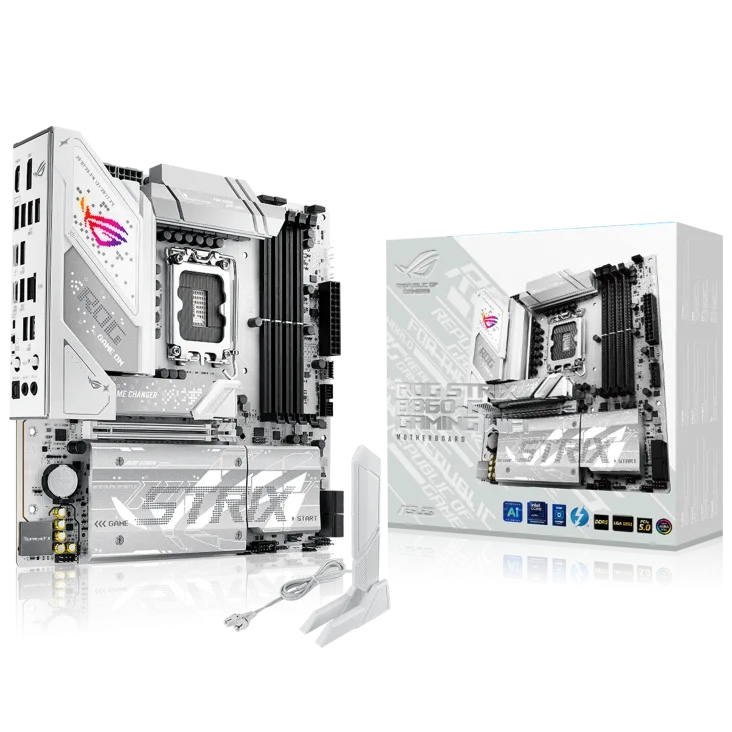

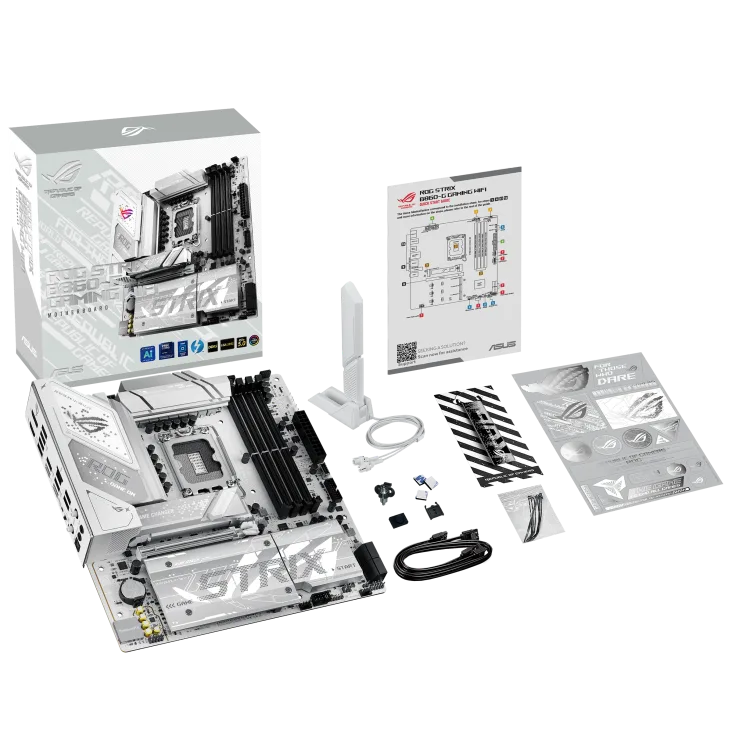

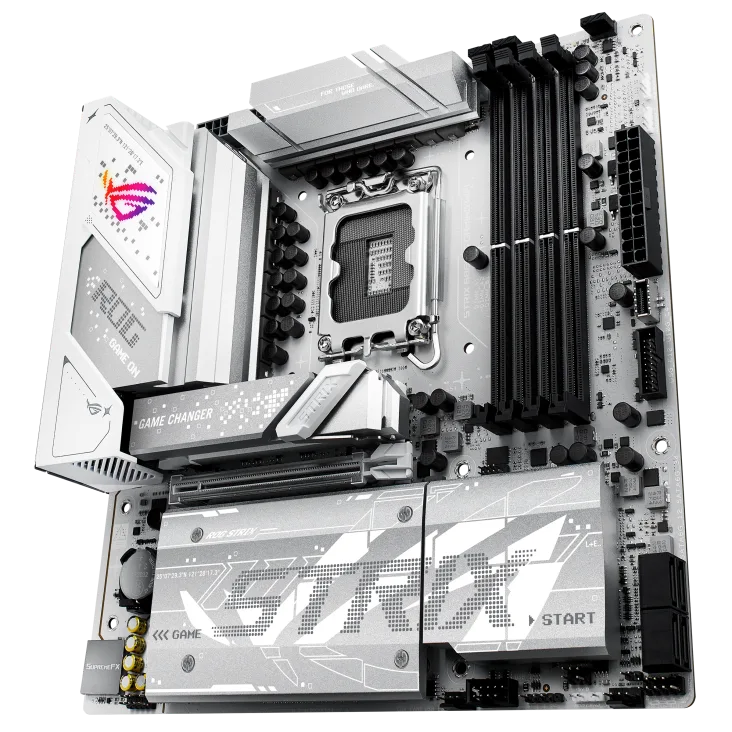

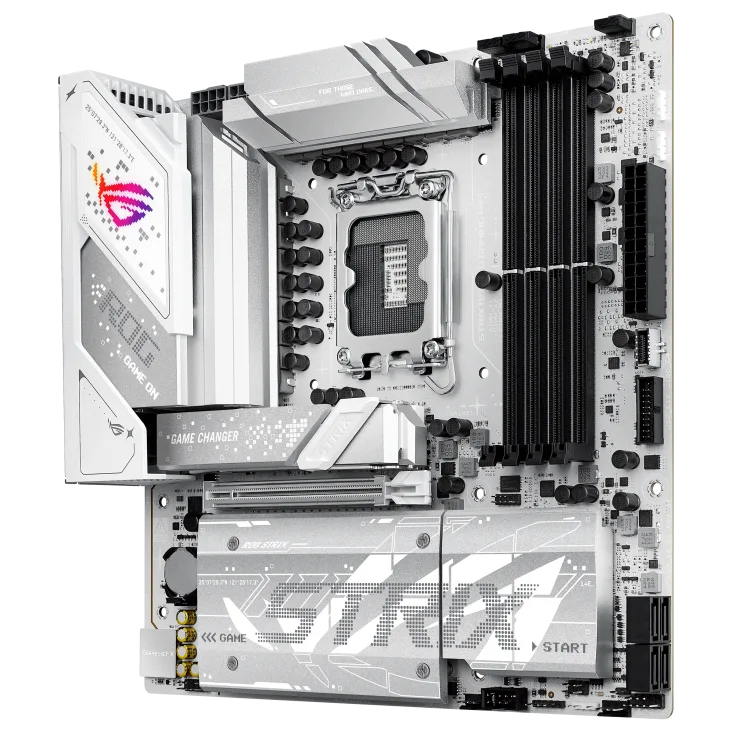

The ASUS ROG STRIX B860-G GAMING WIFI is part of ASUS’s premium ROG Strix motherboard lineup and is designed for users who want a compact but feature-rich Intel platform. Its micro-ATX layout still provides room for a full PCIe 5.0 x16 graphics slot, four onboard M.2 slots, four SATA ports, and broad cooling and connectivity options, making it suitable for advanced gaming systems, creator PCs, and enthusiast desktop builds. The board also includes high-speed wireless networking, premium audio, and ASUS DIY-focused features that make building, upgrading, and tuning easier.
Specifications
Chipset: Intel B860
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: micro-ATX
Power design: 14+1+2+1 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: Up to 192GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-9066+ MT/s (OC)
Memory profile support: Intel XMP, ASUS AEMP III
Primary graphics slot: 1 x PCIe 5.0 x16
Storage: 4 x M.2 slots
Primary M.2 support: 1 x PCIe 5.0 x4 NVMe
Additional M.2 support: 3 x PCIe 4.0 x4 NVMe
SATA: 4 x SATA 6Gb/s
Ethernet: Intel 2.5Gb Ethernet
Wireless: WiFi 7
Bluetooth: Bluetooth 5.4

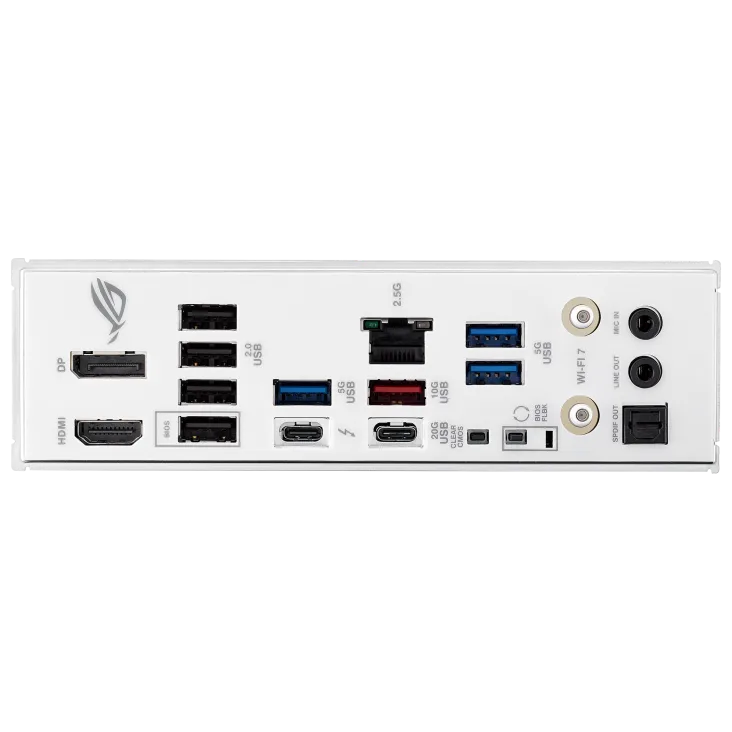

Rear USB: 1 x Thunderbolt 4 / USB Type-C
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: ROG SupremeFX 7.1 high-definition audio
Special features: BIOS FlashBack, Clear CMOS, PCIe Slot Q-Release Slim, ASUS WiFi Q-Antenna, Aura Sync RGB
