Description
The ASUS TUF GAMING B760-PLUS WIFI is part of ASUS’s TUF Gaming motherboard range and is designed to provide a dependable foundation for Intel LGA 1700 gaming and performance-focused desktop builds. It supports DDR5 memory, a PCIe 5.0 x16 graphics slot, and three onboard PCIe 4.0 M.2 slots for high-speed NVMe storage, making it suitable for gaming, streaming, content creation, and general enthusiast use. Its ATX form factor gives it room for multiple expansion devices and improved cooling support, while integrated WiFi 6 and 2.5Gb Ethernet provide flexible networking. Like other TUF models, it emphasizes reinforced construction, practical thermal design, and stable everyday operation under load.
Specifications
Chipset: Intel B760
Socket: Intel LGA 1700
CPU support: Intel Core 14th Gen, 13th Gen, and 12th Gen processors, Pentium Gold, and Celeron processors
Form factor: ATX
Power design: 12+1 DrMOS
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 128GB
Memory architecture: Dual-channel
Memory profile support: Intel XMP
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot Core+
Additional expansion slot: 1 x PCIe 4.0 x16 operating at x4
Additional expansion slots: 2 x PCIe 3.0 x1
Storage: 3 x M.2 slots
M.2 support: 3 x PCIe 4.0 x4 NVMe
SATA: 4 x SATA 6Gb/s
Ethernet: Realtek 2.5Gb Ethernet
Wireless: WiFi 6
Bluetooth: Bluetooth 5.2

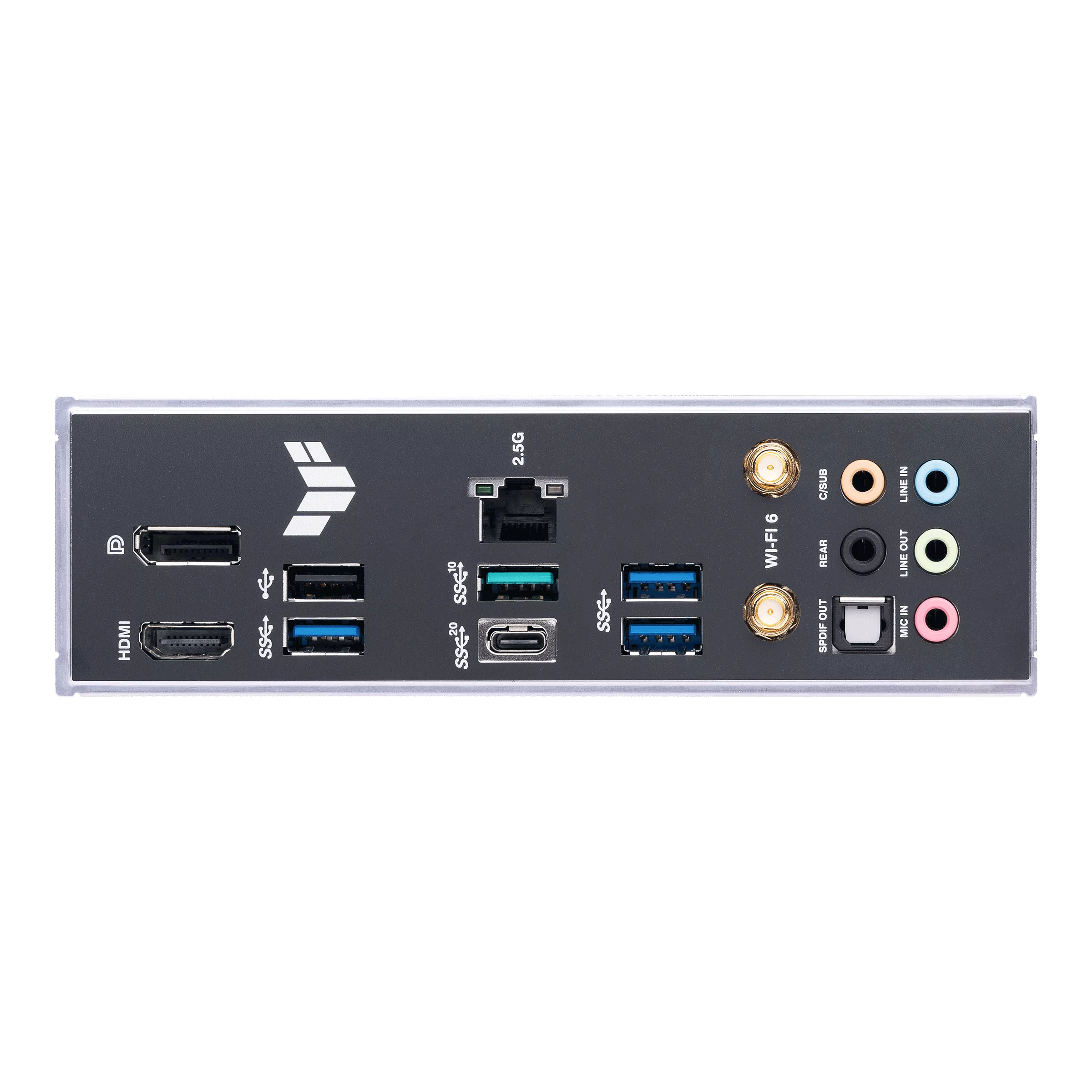

Rear USB: 1 x USB 3.2 Gen 2×2 Type-C
Rear USB: 1 x USB 3.2 Gen 2 Type-A
Rear USB: 3 x USB 3.2 Gen 1 Type-A
Rear USB: 1 x USB 2.0 Type-A
Front USB support: 1 x front USB 3.2 Gen 2 Type-C header
Front USB support: 1 x USB 3.2 Gen 1 header
Front USB support: 2 x USB 2.0 headers
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: 7.1-channel high-definition audio
Cooling features: VRM heatsinks, M.2 heatsinks, multiple fan headers
Special features: BIOS FlashBack, Aura Sync, TUF LANGuard, SafeSlot Core+, Q-LED
