Description

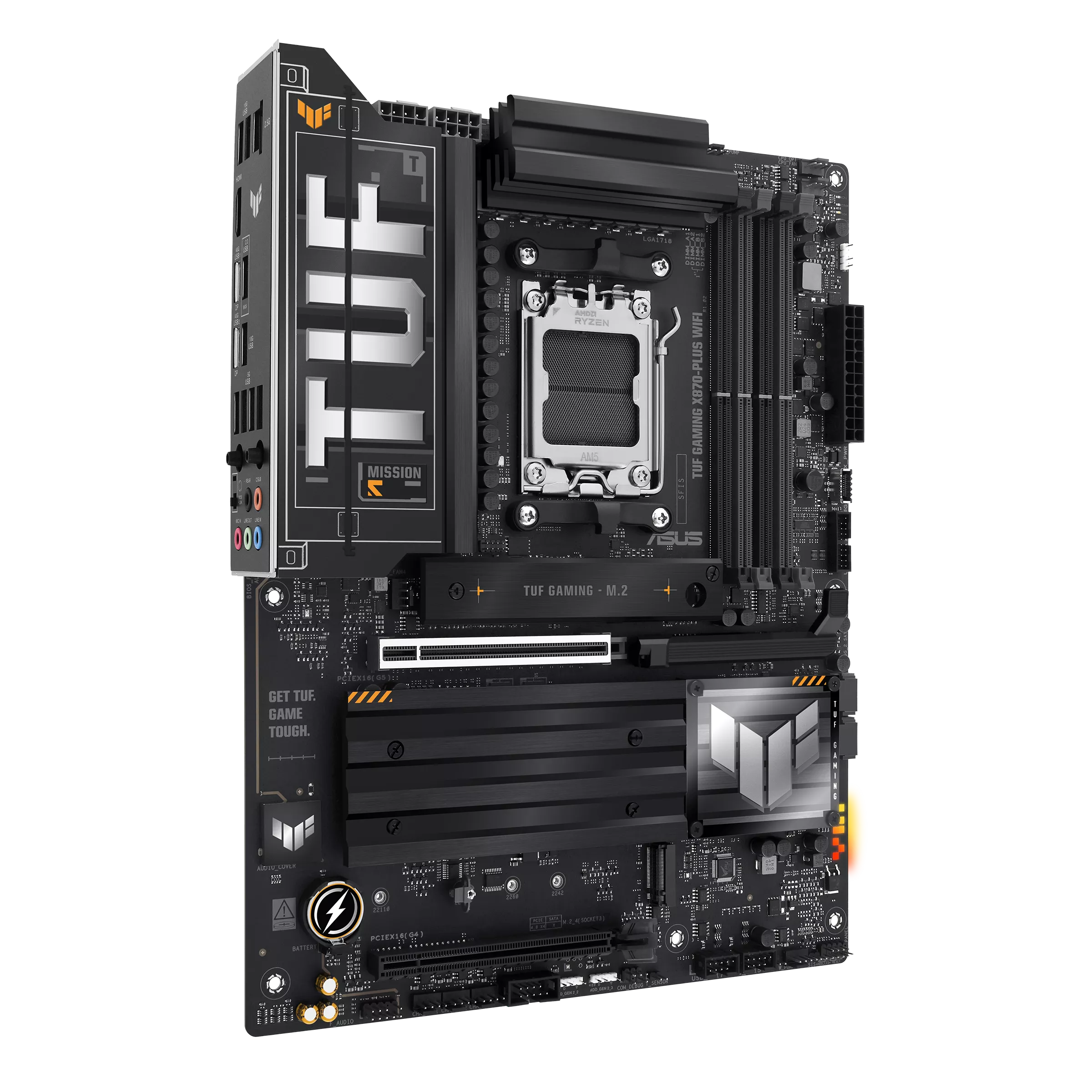

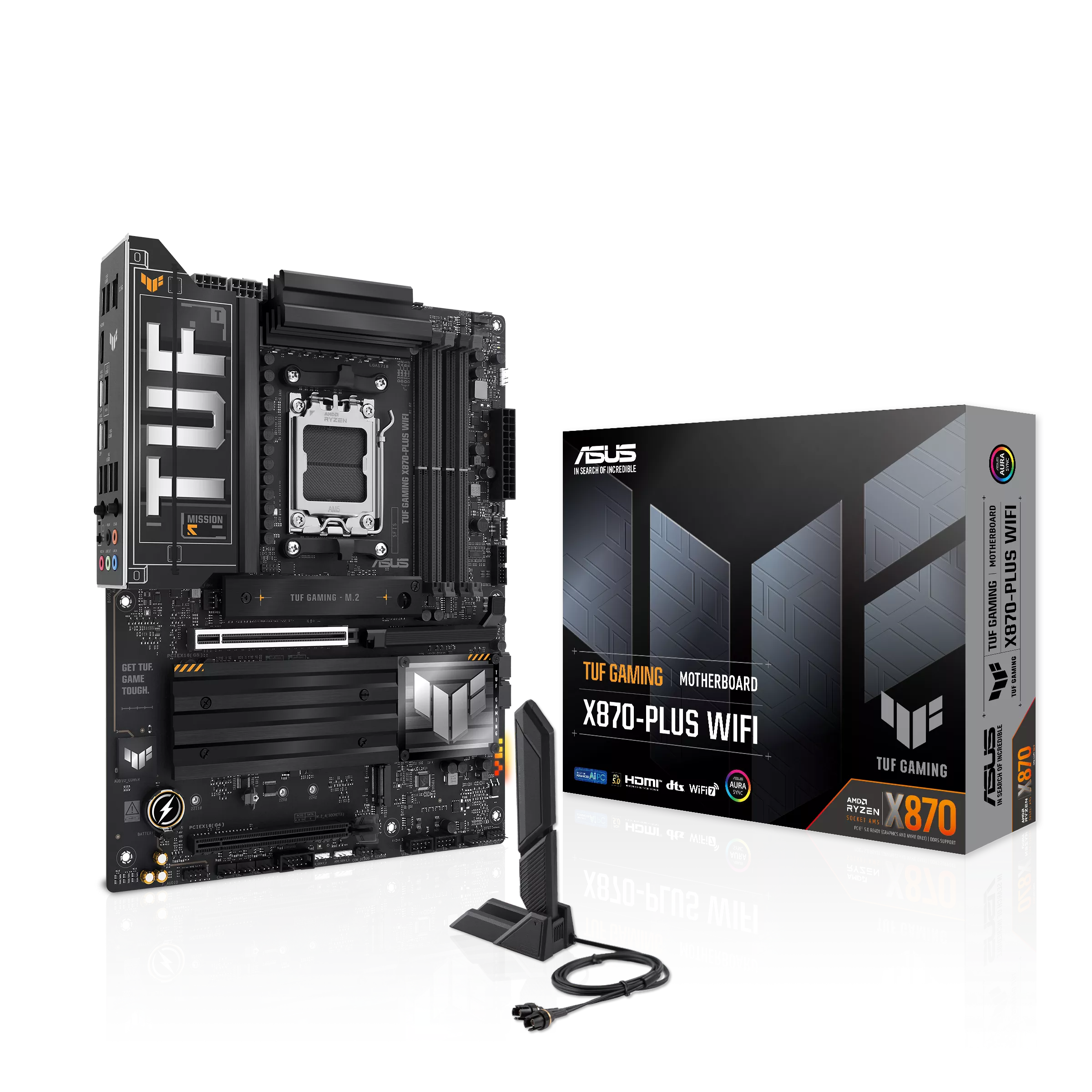

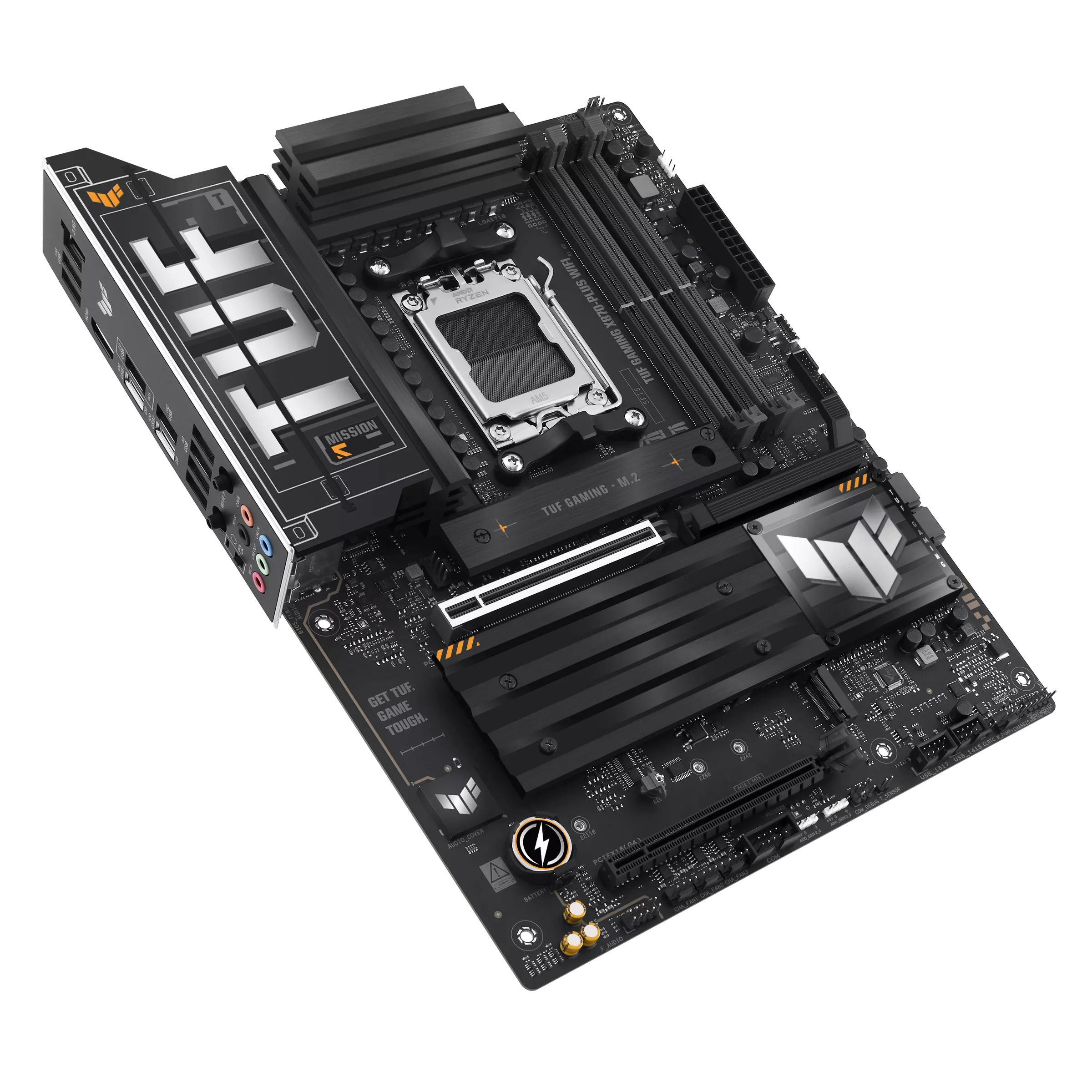

ASUS Motherboard/ATX/AM5/4xDIMM/Max192The ASUS TUF GAMING X870-PLUS WIFI is part of ASUS’s TUF Gaming motherboard lineup and is designed to deliver a stable, feature-rich foundation for modern AMD AM5 builds. It uses a full ATX layout, giving it space for multiple expansion cards, high-speed storage, and extensive cooling support, while also offering next-generation connectivity for gaming and productivity systems. The board supports DDR5 memory, PCIe 5.0 for the main graphics slot, and multiple NVMe drives through four onboard M.2 slots. With built-in WiFi 7, 2.5Gb Ethernet, BIOS FlashBack, and TUF-focused durability features, it suits high-performance gaming builds, upgrade-focused enthusiast systems, and modern creator PCs.
Specifications
Chipset: AMD X870
Socket: AMD Socket AM5
CPU support: AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series desktop processors
Form factor: ATX
Power design: 16+2+1 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 256GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-8000+ (OC)
Memory profile support: AMD EXPO, ASUS AEMP
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot
Additional expansion slot: 1 x PCIe 4.0 x16 slot
Storage: 4 x M.2 slots
Primary M.2 support: PCIe 5.0 x4
Additional M.2 support: PCIe 5.0 x4 and PCIe 4.0 x4 depending on slot and CPU configuration
SATA: 2 x SATA 6Gb/s
Ethernet: 2.5Gb Ethernet

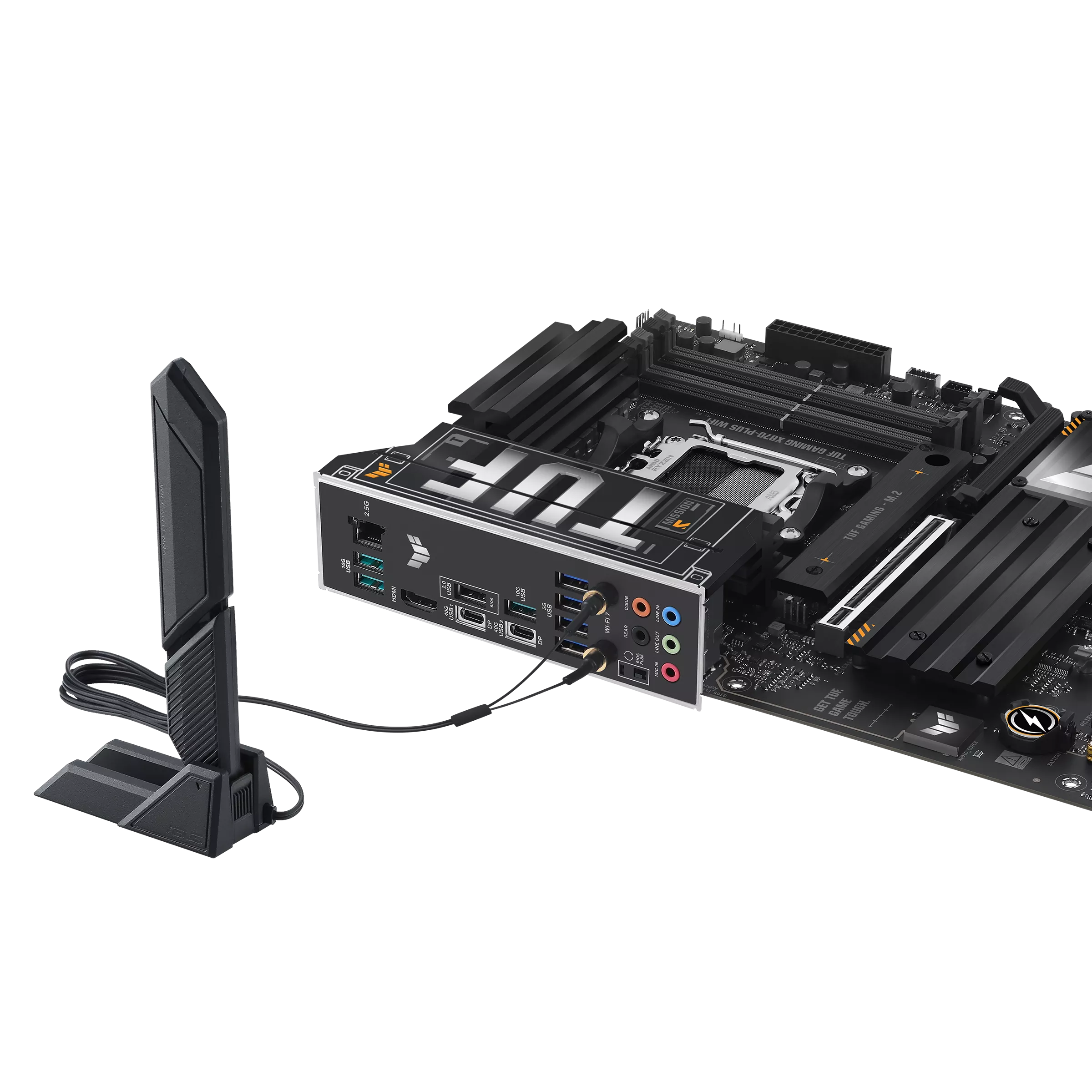

Wireless: WiFi 7
Bluetooth: Bluetooth 5.4
Rear USB: 2 x USB4 40Gbps Type-C
Rear USB: 3 x USB 10Gbps Type-A
Rear USB: 4 x USB 5Gbps Type-A
Rear USB: 1 x USB 2.0 Type-A
Front USB support: 1 x USB 20Gbps Type-C header
Front USB support: 1 x USB 5Gbps header
Front USB support: 2 x USB 2.0 headers
Display outputs: 1 x HDMI
Display outputs: 1 x DisplayPort
Audio: 7.1-channel high-definition audio
Cooling design: Enlarged VRM heatsinks and M.2 heatsinks
Special features: BIOS FlashBack, Q-Antenna, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Aura Sync
