Description

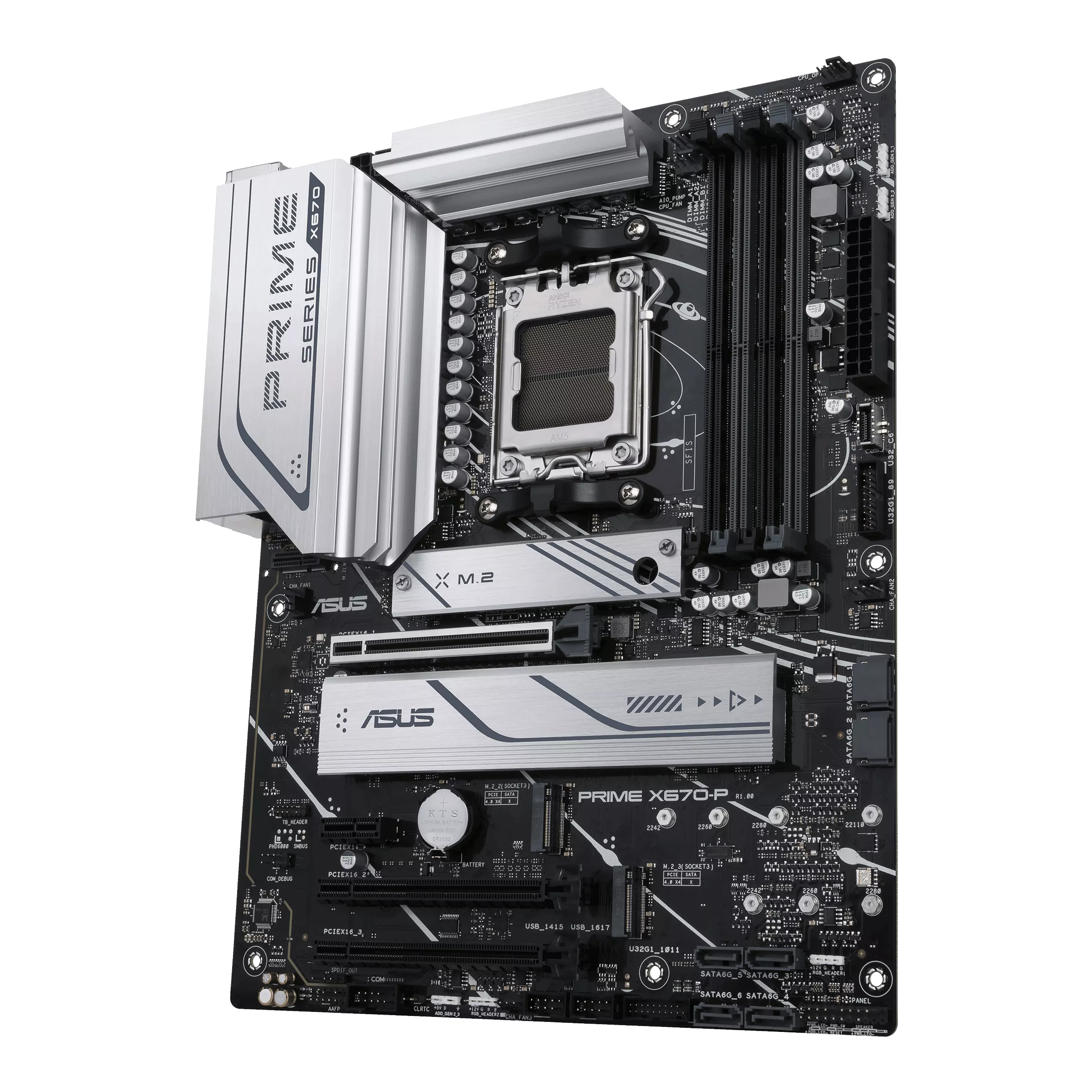

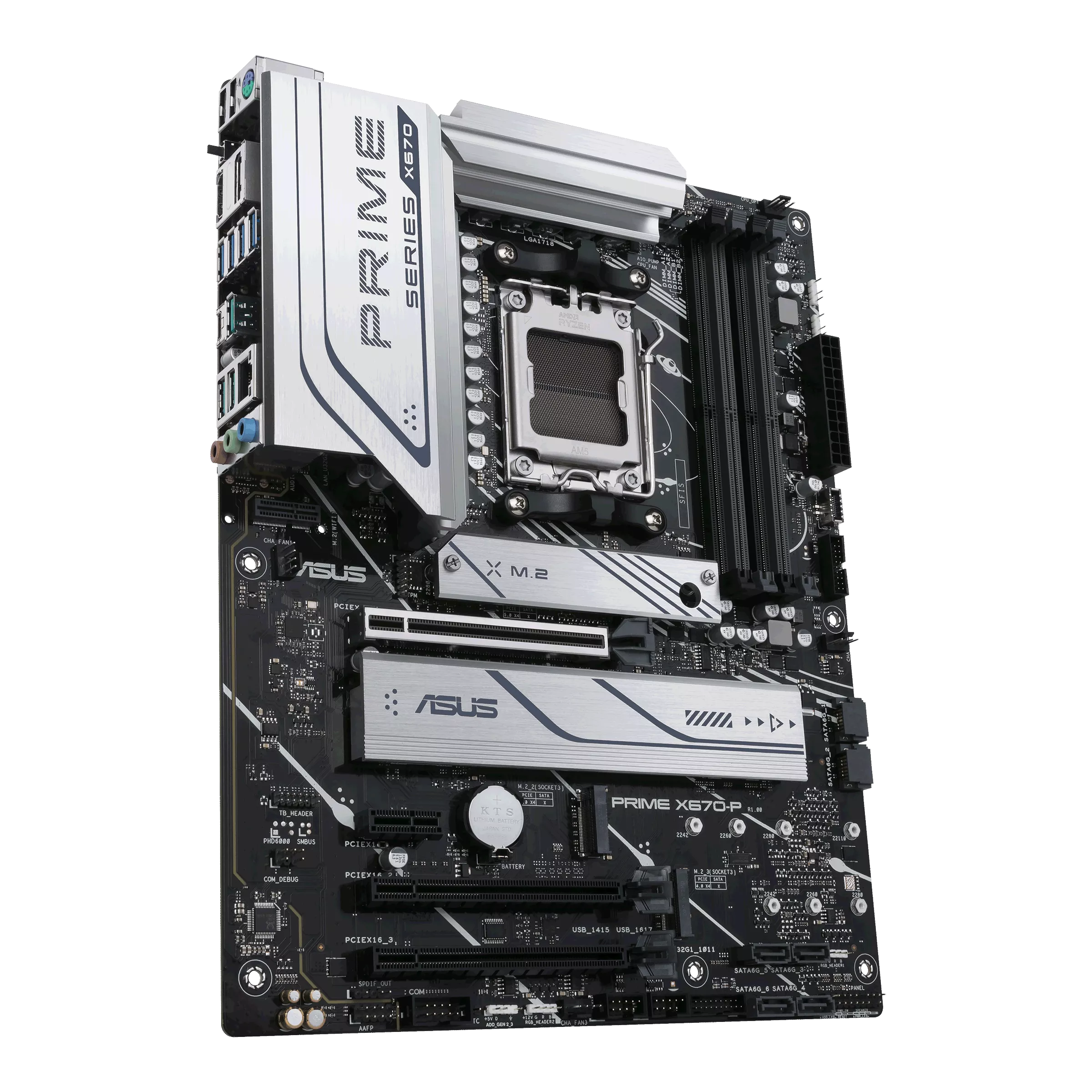

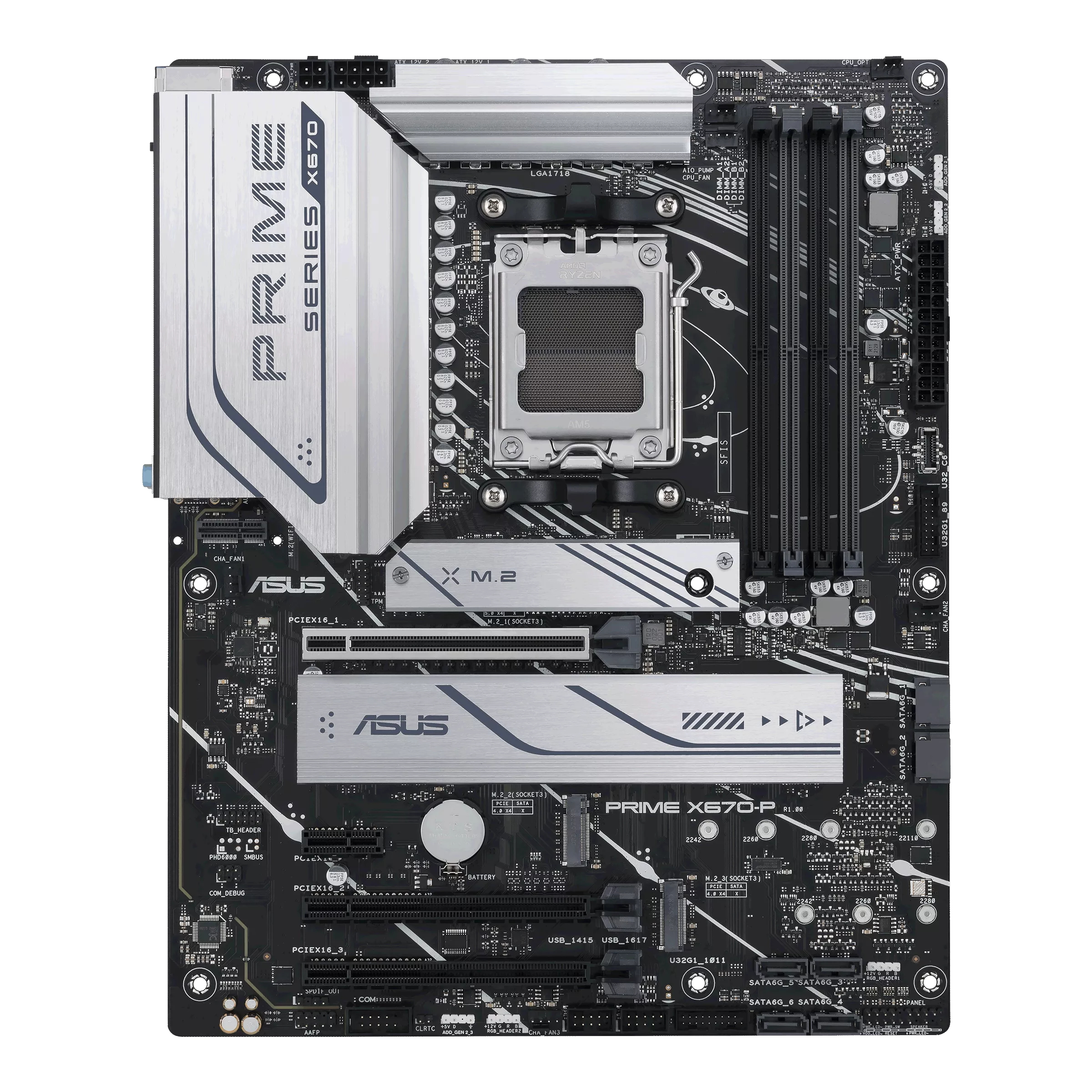

ASUS Motherboard/ATX/AM5/4xDIMThe ASUS PRIME X670-P is part of the ASUS Prime motherboard range and is built for AMD AM5 desktop systems using the X670 chipset. It supports DDR5 memory, high-speed NVMe storage, and a full ATX board layout that provides room for multiple expansion cards, storage devices, and cooling hardware. The board is aimed at users who want a modern AMD platform with strong core features, including PCIe 5.0 storage support, USB Type-C connectivity, BIOS FlashBack, and 2.5Gb Ethernet networking. Its feature set makes it suitable for gaming systems, productivity PCs, and general enthusiast builds that need solid platform capability without moving into a more premium ROG or TUF tier.
Specifications
Chipset: AMD X670
Socket: AMD Socket AM5
CPU support: AMD Ryzen 7000 Series desktop processors
Form factor: ATX
Power design: 12+2 DrMOS
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 128GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-6400+ (OC)
Memory profile support: AMD EXPO
Storage: 3 x M.2 slots
Primary M.2 support: PCIe 5.0 x4 NVMe
Additional M.2 support: PCIe 4.0 x4 NVMe
SATA: 6 x SATA 6Gb/s
Primary expansion slot: 1 x PCIe 4.0 x16
Additional expansion slots: 2 x PCIe 4.0 x16 slots operating at x4, 1 x PCIe 3.0 x1
Ethernet: Realtek 2.5Gb Ethernet
Wireless support: V-M.2 slot for WiFi module support

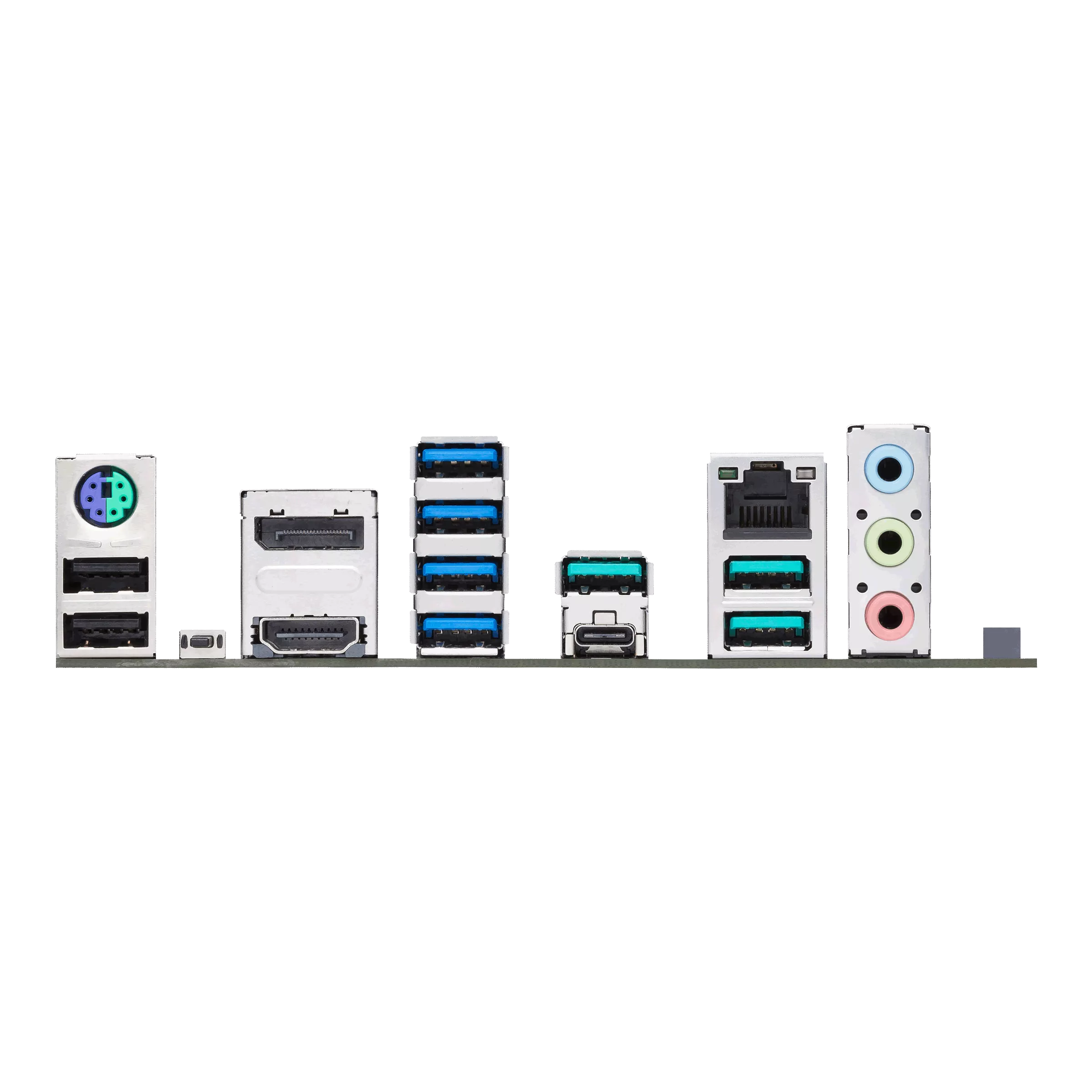

Rear USB: 1 x USB 3.2 Gen 2×2 Type-C
Rear USB: 3 x USB 3.2 Gen 2 Type-A
Rear USB: 4 x USB 3.2 Gen 1 Type-A
Rear USB: 2 x USB 2.0 Type-A
Front USB support: 1 x front USB Type-C connector
Front USB support: 2 x USB 3.2 Gen 1 headers
Front USB support: 2 x USB 2.0 headers
Display outputs: 1 x DisplayPort
Display outputs: 1 x HDMI
Audio: 3 x audio jacks
BIOS feature: BIOS FlashBack
Other rear I/O: 1 x PS/2 keyboard/mouse combo port
