Description
The ROG STRIX B650-A GAMING WIFI is part of ASUS’s ROG Strix motherboard lineup and is built for users who want a feature-rich AMD AM5 platform for gaming and mainstream enthusiast workloads. It supports Ryzen 7000, 8000, and 9000 Series desktop processors, DDR5 memory, and high-speed NVMe storage, including PCIe 5.0 support for the primary M.2 slot. Its ATX layout provides room for multiple expansion slots, several storage devices, and strong rear I/O connectivity. With integrated WiFi 6E, 2.5Gb Ethernet, reinforced PCIe construction, and ROG styling, it suits both performance builds and visually themed systems.
Specifications
Chipset: AMD B650
Socket: AMD Socket AM5
CPU support: AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series desktop processors
Form factor: ATX
Power design: 12+2 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: 128GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-6400+ (OC)
Memory profile support: AMD EXPO
Storage: 3 x M.2 slots
Primary M.2 support: PCIe 5.0 NVMe
Additional M.2 support: 2 x PCIe 4.0 NVMe
SATA: 4 x SATA 6Gb/s
Primary expansion slot: 1 x PCIe x16 slot
Additional expansion slot: 1 x PCIe x16 slot operating at x4
Additional expansion slots: 2 x PCIe x1
Ethernet: 2.5Gb Ethernet
Wireless: WiFi 6E

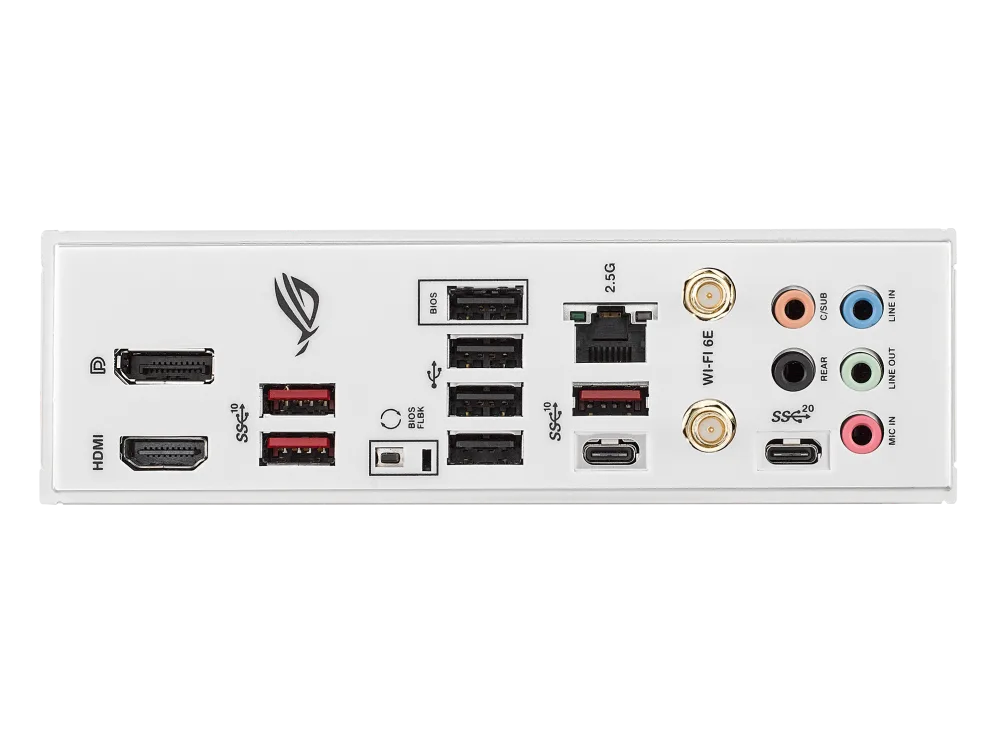

Rear USB: 1 x USB 3.2 Gen 2×2 Type-C
Rear USB: 3 x USB 3.2 Gen 2 Type-A
Rear USB: 1 x USB 3.2 Gen 2 Type-C
Rear USB: 4 x USB 2.0
Display outputs: 1 x HDMI
Display outputs: 1 x DisplayPort
Internal headers: Front USB headers, Thunderbolt header, S/PDIF out header
Power connectors: 24-pin main power, 8-pin ATX12V, 4-pin ATX12V
