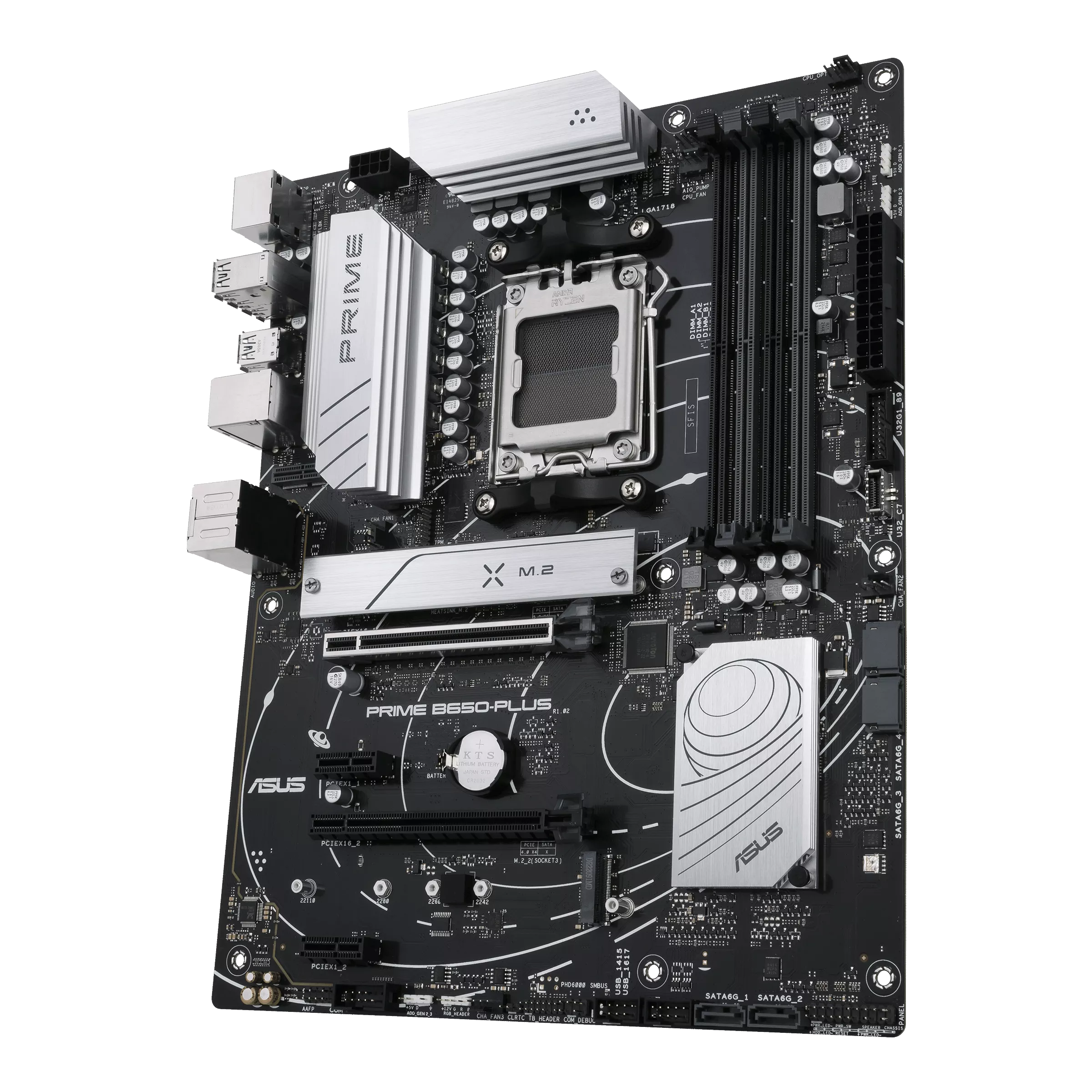

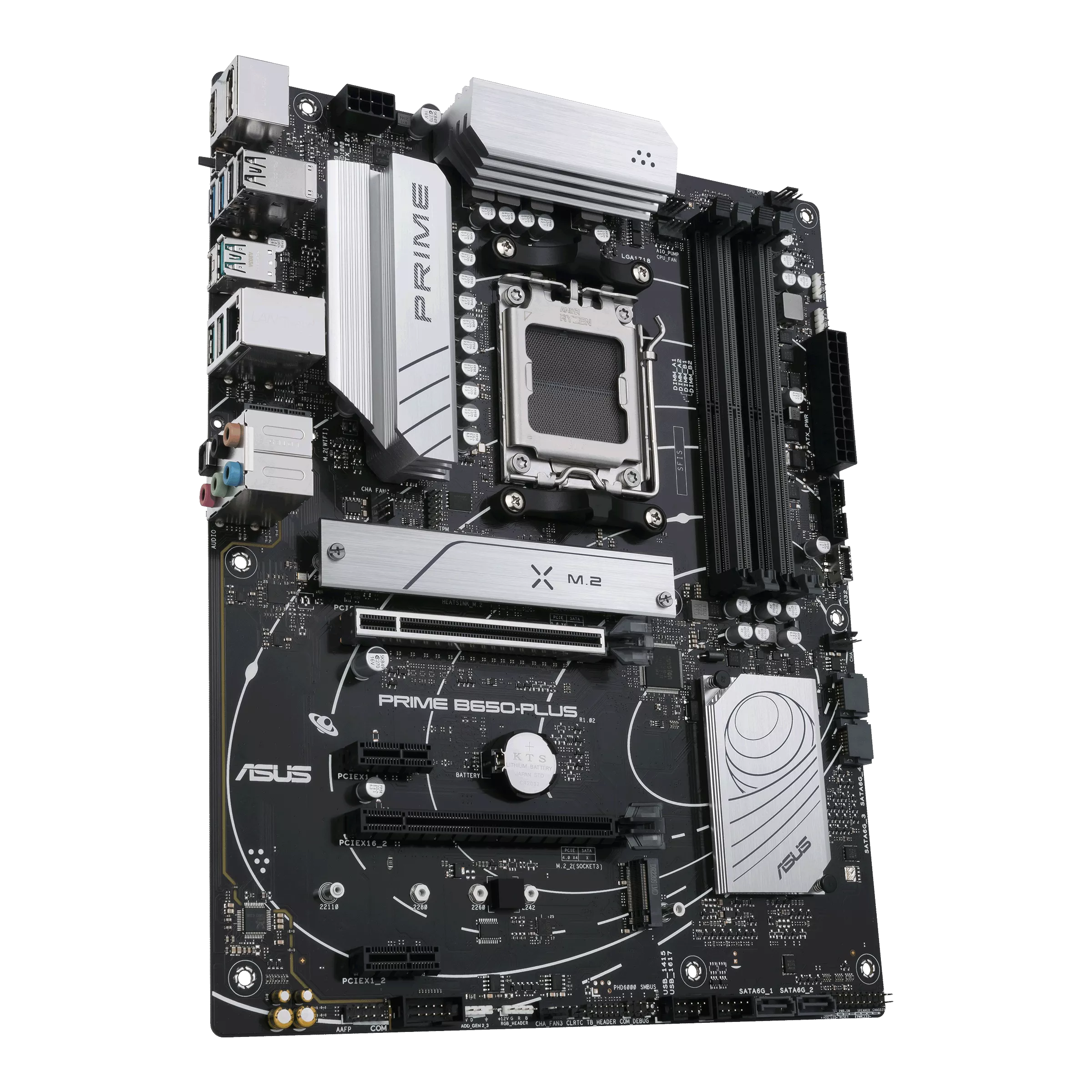

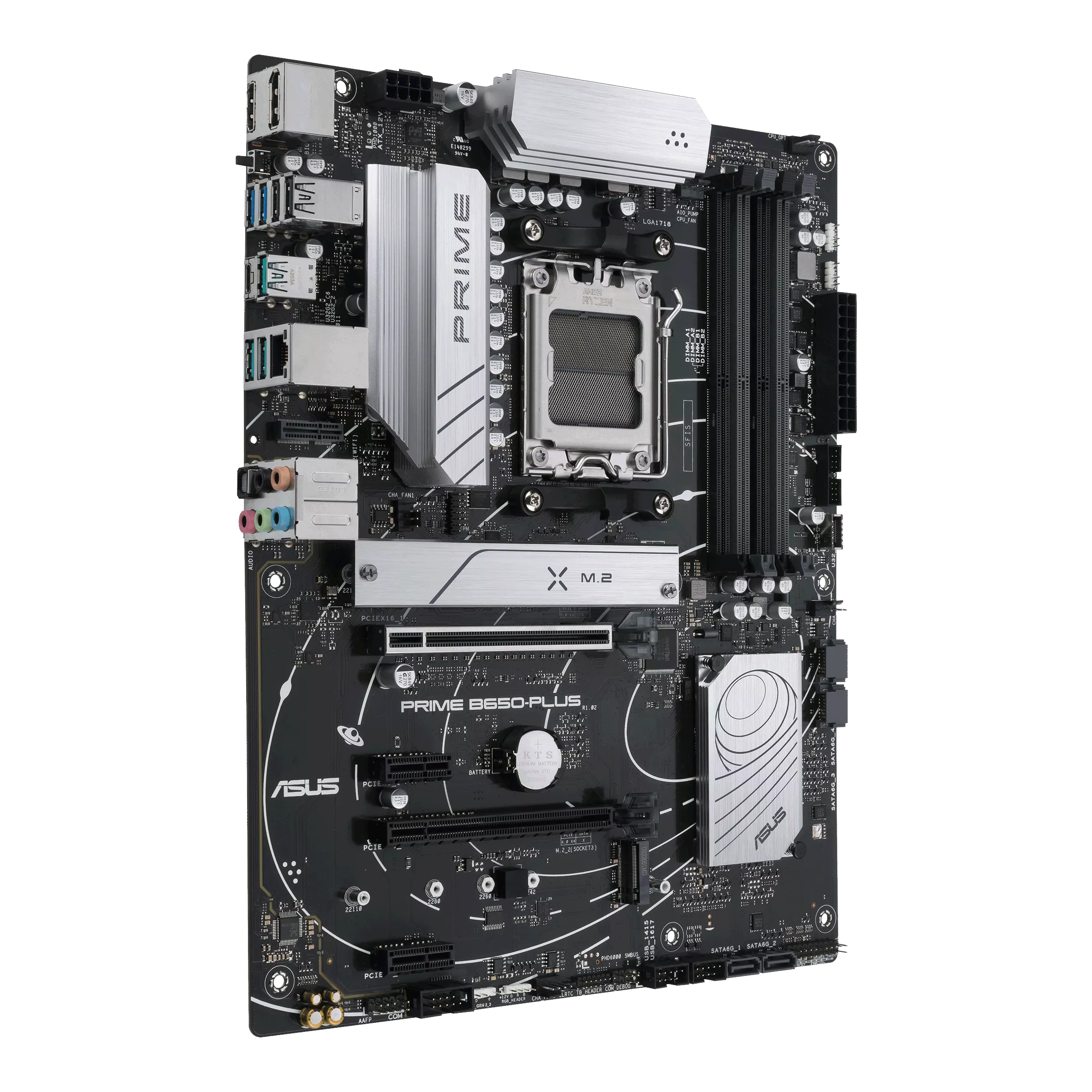

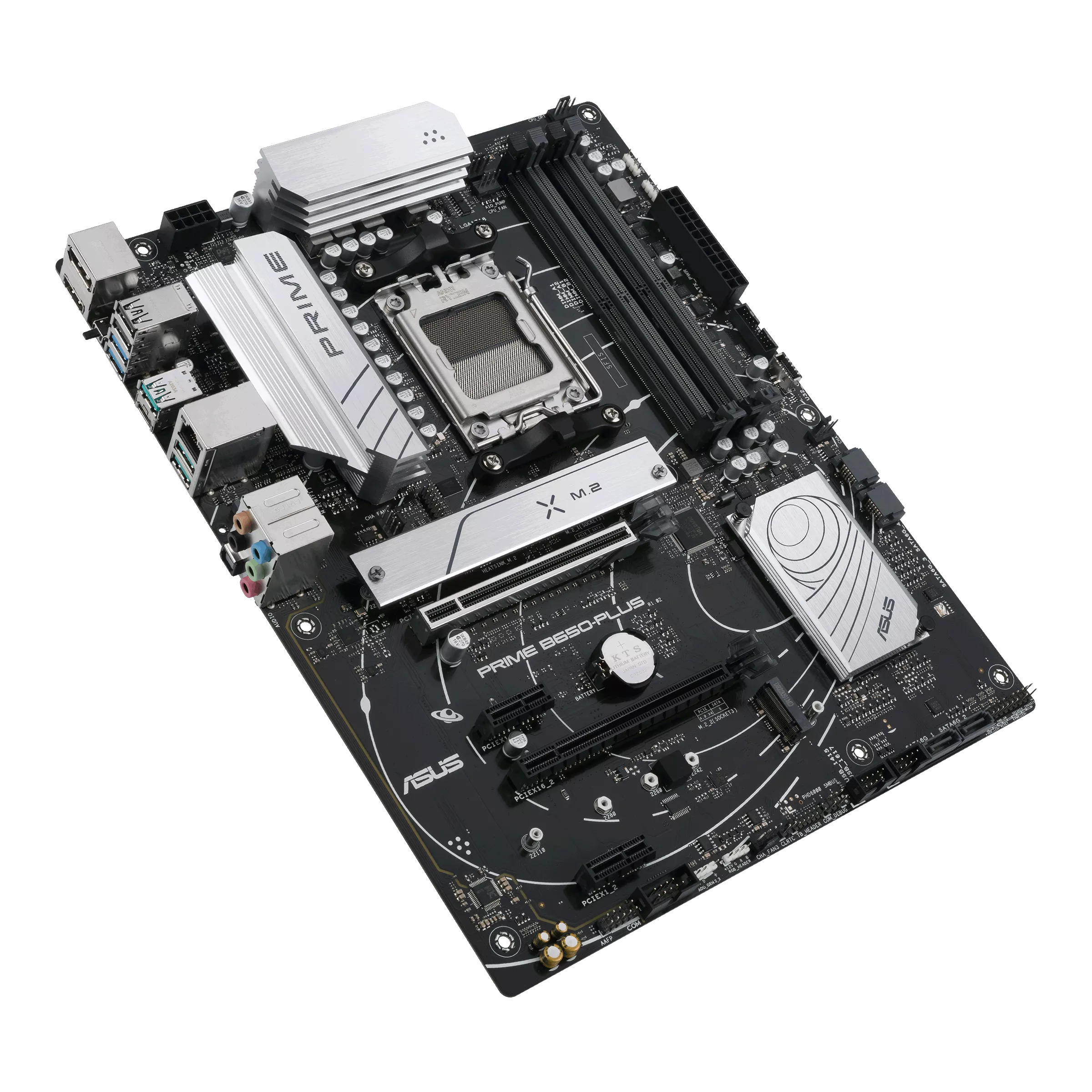

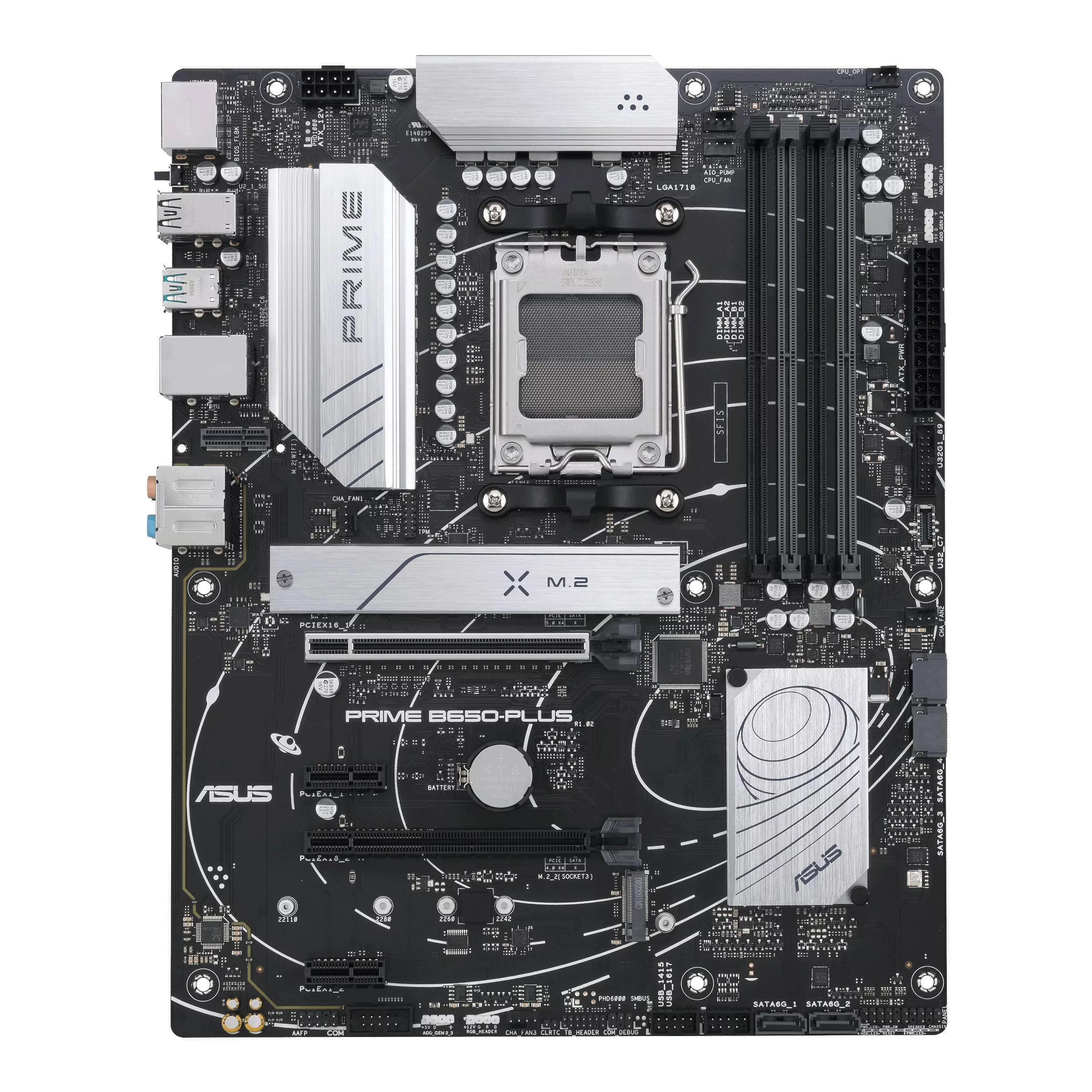

ASUS PRIME B650-PLUS | AM5 | DDR5

Description

The ASUS PRIME B650-PLUS is a full-size ATX motherboard aimed at users who want a balanced AM5 platform for gaming, content creation, office productivity, and long-term desktop upgrades. Built on the AMD B650 chipset, it supports AMD Ryzen 7000, 8000, and 9000 series desktop processors, giving builders access to a current-generation platform with support for newer CPUs, DDR5 memory, and next-generation storage.

One of the main strengths of this board is that it gives you the features that actually matter in a modern system without turning into overpriced RGB nonsense. You get DDR5 support for faster memory performance, a PCIe 5.0 M.2 slot for very fast NVMe storage, a second M.2 slot for additional SSD expansion, and full-size ATX spacing that makes the board easier to work with in a normal case. It is a cleaner, more practical option for builders who want a capable motherboard with room for upgrades.

For graphics and expansion, the board includes a primary PCIe 4.0 x16 slot for modern graphics cards, along with additional PCIe slots for expansion devices. Networking is handled by Realtek 2.5Gb Ethernet, which is a noticeable upgrade over standard Gigabit LAN for faster local transfers and better high-speed network support. ASUS also includes display outputs for systems using supported Ryzen processors with integrated graphics, making it useful for both gaming systems and non-GPU office or work builds.

Storage and connectivity are also strong for this class. You get two M.2 slots, four SATA ports, rear USB 3.2 Gen 2 including Type-C, front USB Type-C header support, and BIOS FlashBack for easier firmware recovery and updates. ASUS’s PRIME series also focuses on reliable power delivery, practical cooling design, and user-friendly BIOS tuning, making this board a good fit for builders who want stability, sensible features, and a clean foundation for a modern AM5 PC.

Specifications
Chipset: AMD B650
Socket: AMD AM5
Form Factor: ATX

CPU Support:
AMD Ryzen 9000 Series desktop processors
AMD Ryzen 8000 Series desktop processors
AMD Ryzen 7000 Series desktop processors

Memory Support:
4 x DDR5 DIMM slots
Dual-channel memory architecture
Supports AMD EXPO memory profiles
Supports high-speed DDR5 overclocking

Expansion Slots:
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot operating in x4 mode
2 x PCIe 4.0 x1 slots

Storage:
2 x M.2 slots
Primary M.2 supports PCIe 5.0 x4 with supported CPUs
Secondary M.2 supports PCIe 4.0 x4
4 x SATA 6Gb/s ports

Networking:
1 x Realtek 2.5Gb Ethernet

Display Outputs:
1 x DisplayPort
1 x HDMI

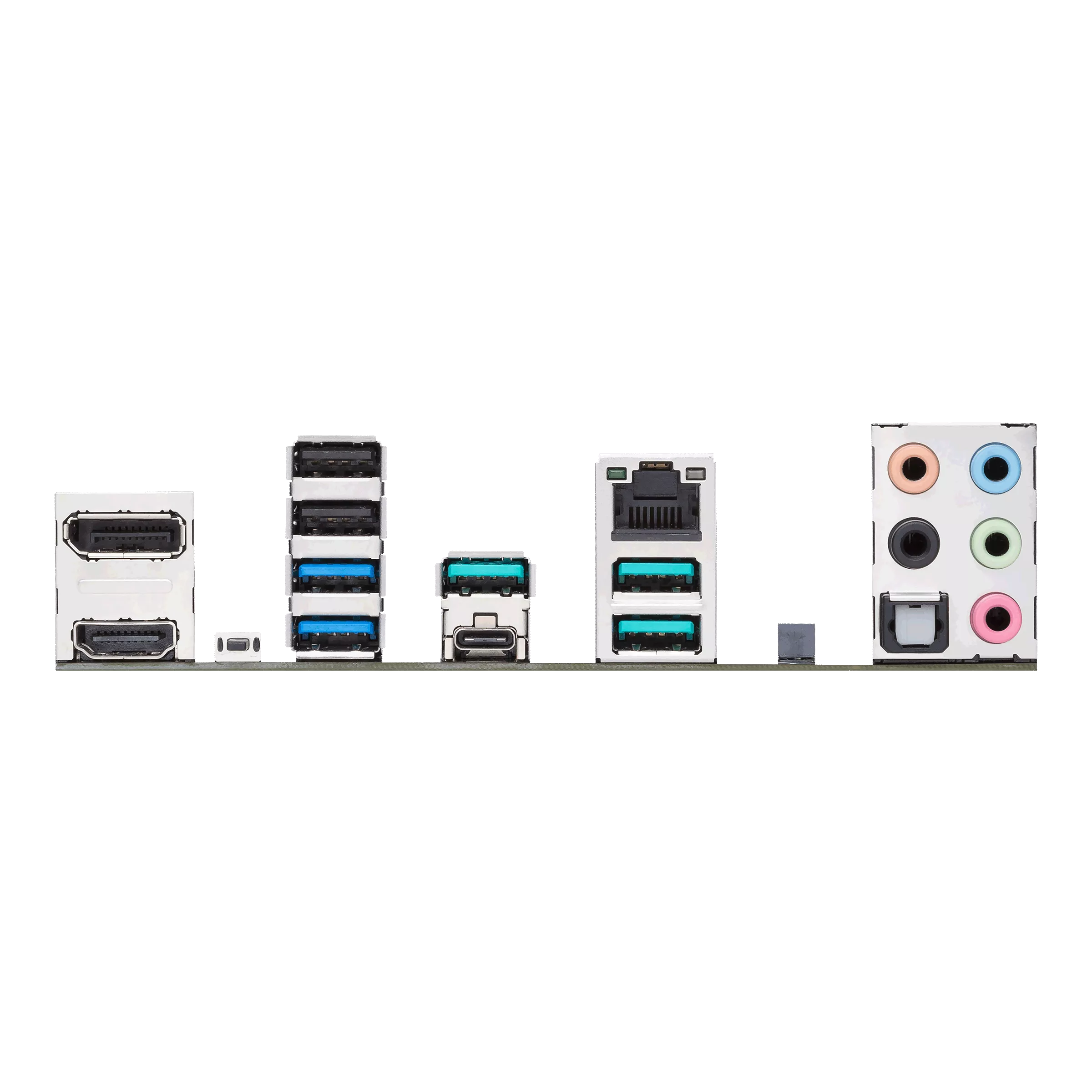

Rear USB Ports:
4 x USB 3.2 Gen 2 ports
2 x USB 3.2 Gen 1 ports
2 x USB 2.0 ports

Front USB Support:
1 x front USB Type-C connector
1 x USB 3.2 Gen 1 header
2 x USB 2.0 headers

Audio:
High definition audio
5 x audio jacks
1 x optical S/PDIF out

Internal Features:
BIOS FlashBack button
Aura Sync RGB support
Vertical Key E M.2 slot for optional WiFi module
USB4 header support
Fan and cooling control options
ASUS UEFI BIOS tuning support

Cooling and Build Features:
Heatsink design for power and chipset cooling
Fan Xpert support
6-layer PCB design
Designed for stable daily use and modern AM5 upgrades
