Description

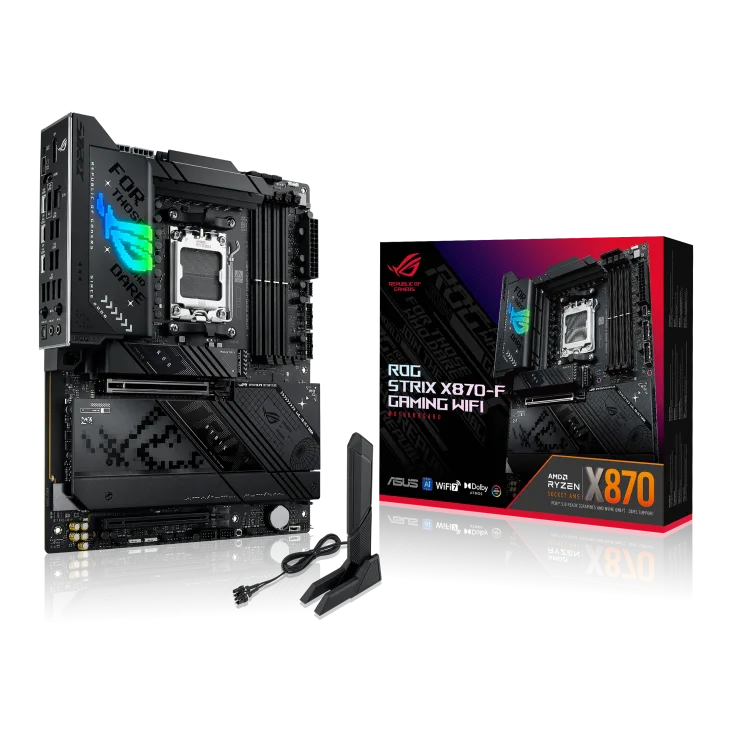

The ASUS ROG STRIX X870-F GAMING WIFI is part of the upper-tier ROG Strix motherboard lineup and is designed for users building modern AM5 gaming and enthusiast PCs. Its ATX layout gives it room for multiple expansion devices, several NVMe drives, and broad cooling support, making it suitable for high-performance gaming, streaming, and creator builds. The board supports DDR5 memory, PCIe 5.0 for the main graphics slot, and high-speed storage through four onboard M.2 slots, including Gen5 support. It also includes advanced connectivity such as WiFi 7, dual USB4 ports, 2.5Gb Ethernet, premium audio, and ASUS DIY-friendly features, making it a strong option for users who want both platform flexibility and a high-end feature set.
Specifications
Chipset: AMD X870
Socket: AMD Socket AM5
CPU support: AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series desktop processors
Form factor: ATX
Power design: 16-stage power solution
Memory type: DDR5
Memory support: 4 x DIMM slots
Maximum memory: Up to 192GB
Memory architecture: Dual-channel
Memory overclocking support: Up to DDR5-8000+ depending on CPU and configuration
Memory profile support: AMD EXPO, ASUS AEMP
Primary graphics slot: 1 x PCIe 5.0 x16 SafeSlot
Additional expansion slots: PCIe 4.0 expansion support
Storage: 4 x M.2 slots
Gen5 M.2 support: 2 x PCIe 5.0 x4 M.2 slots with supported Ryzen 9000 and 7000 Series CPUs
Additional M.2 support: PCIe 4.0 M.2 support
SATA: 2 x SATA 6Gb/s
Ethernet: 2.5Gb Ethernet
Wireless: WiFi 7
Bluetooth: Bluetooth 5.4

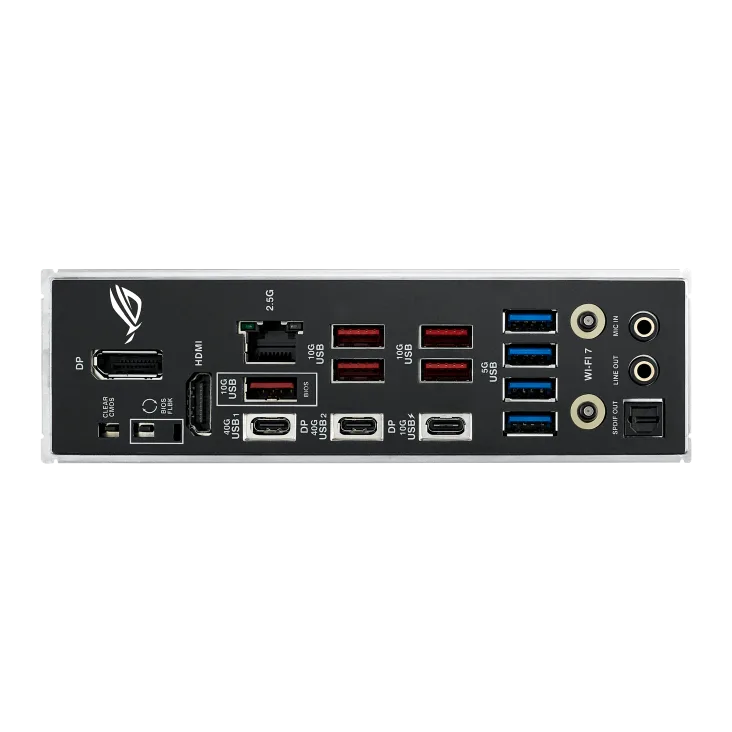

Rear USB: 2 x USB4 40Gbps Type-C
Rear USB: Multiple USB 10Gbps Type-A ports
Rear USB: USB 2.0 Type-A connectivity
Display outputs: 1 x HDMI
Front USB support: USB Type-C front-panel header
Audio: ROG SupremeFX 7.1 high-definition audio
Audio codec: ALC4080
Special features: BIOS FlashBack, Clear CMOS, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Aura Sync RGB
Motherboard dimensions: 305 x 244 mm
