Description

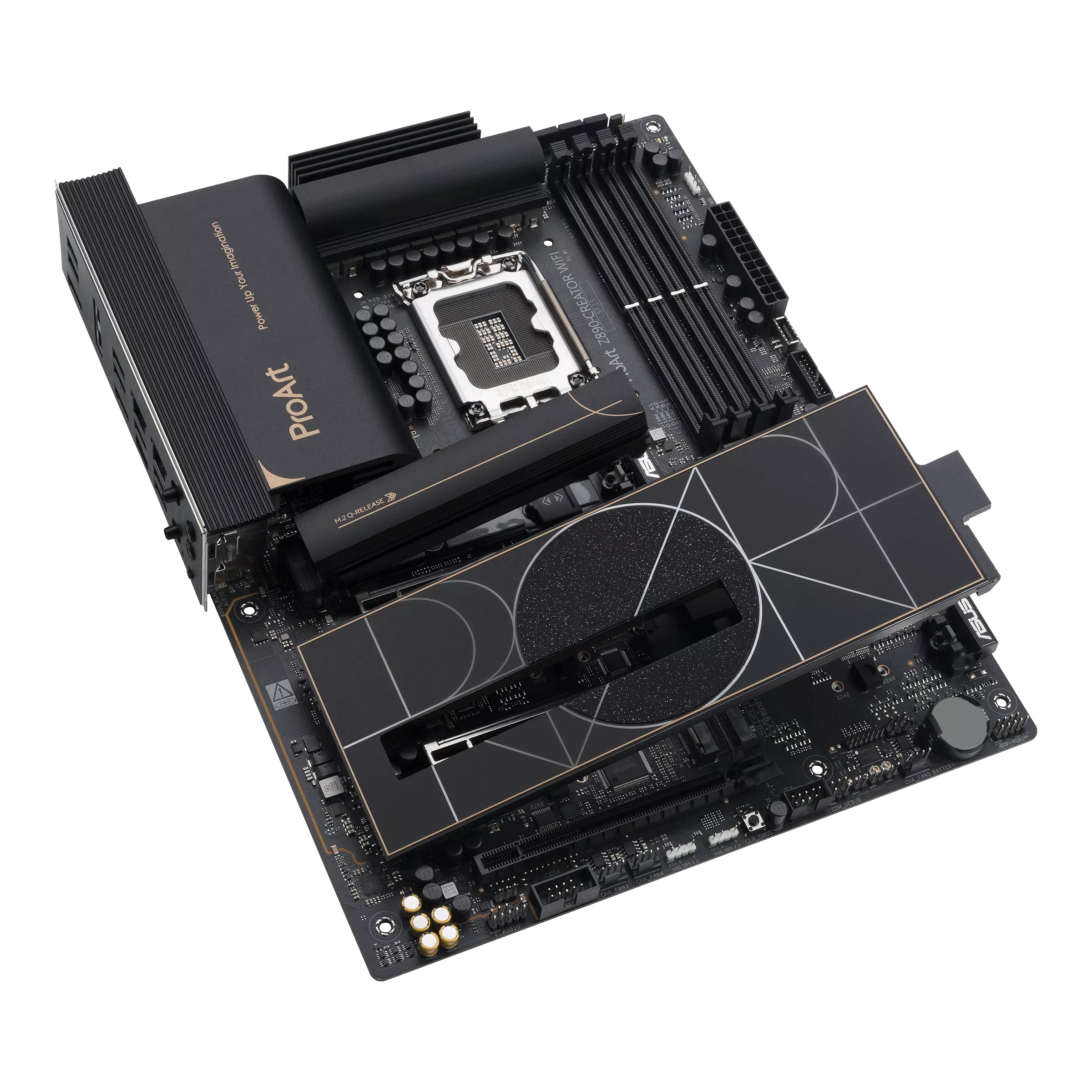

The ASUS PROART Z890-CREATOR WIFI is part of ASUS’s ProArt motherboard range and is designed for creators and professionals who need a feature-rich platform for modern Intel desktop systems. Its ATX layout provides room for multiple graphics or add-in cards, several NVMe drives, and broad cooling support, making it suitable for video editing, 3D work, photography, music production, and other intensive workflows. The board supports Intel Core Ultra Processors (Series 2), DDR5 memory, dual PCIe 5.0 x16 slots, and extensive high-speed I/O including Thunderbolt 5 and USB4 connectivity. With dual wired networking, WiFi 7, creator-focused software support, and ASUS DIY-friendly features, it is built for users who want both performance and professional connectivity.
Specifications
Chipset: Intel Z890
Socket: Intel LGA 1851
CPU support: Intel Core Ultra Processors (Series 2)
Form factor: ATX
Power design: 16+1+2+2 power stages
Memory type: DDR5
Memory support: 4 x DIMM slots
Memory architecture: Dual-channel
Storage: 5 x M.2 slots
Primary M.2 support: 1 x PCIe 5.0 x4 NVMe
Additional M.2 support: 4 x PCIe 4.0 x4 NVMe
SATA: 4 x SATA 6Gb/s
Primary graphics slots: 2 x PCIe 5.0 x16 SafeSlots
Lane configuration: x16 single-card or x8/x8 dual-card operation
Additional expansion slot: 1 x PCIe 4.0 x16 operating at x4
Ethernet: 1 x 10Gb Ethernet
Ethernet: 1 x 2.5Gb Ethernet
Wireless: WiFi 7

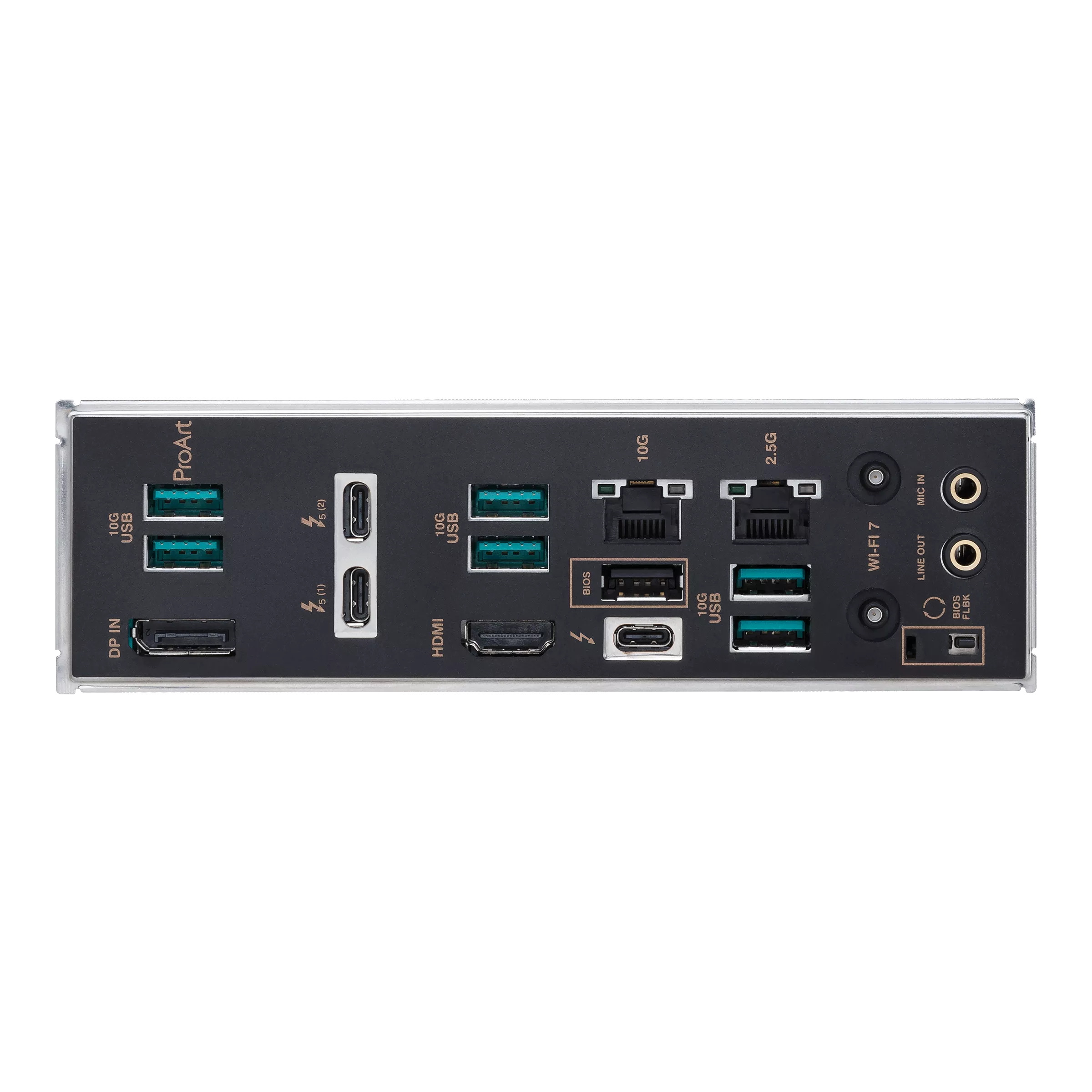

Rear USB: 2 x Thunderbolt 5 Type-C
Rear USB: 1 x USB4 / Thunderbolt Type-C
Rear USB: 6 x USB 10Gbps Type-A
Rear USB: 1 x USB 2.0 Type-A
Front USB support: 1 x USB 20Gbps Type-C front-panel connector
Front USB support: 1 x USB 5Gbps header
Front USB support: 1 x USB 2.0 header
Display output: 1 x HDMI 2.1
Display input: 1 x DisplayPort input for Thunderbolt video pass-through
Audio: 2 x gold-plated audio jacks
Networking focus: Creator and workstation-class dual LAN setup
Special features: BIOS FlashBack, creator-focused ASUS features, PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Side, M.2 Q-Latch, WiFi Q-Antenna
