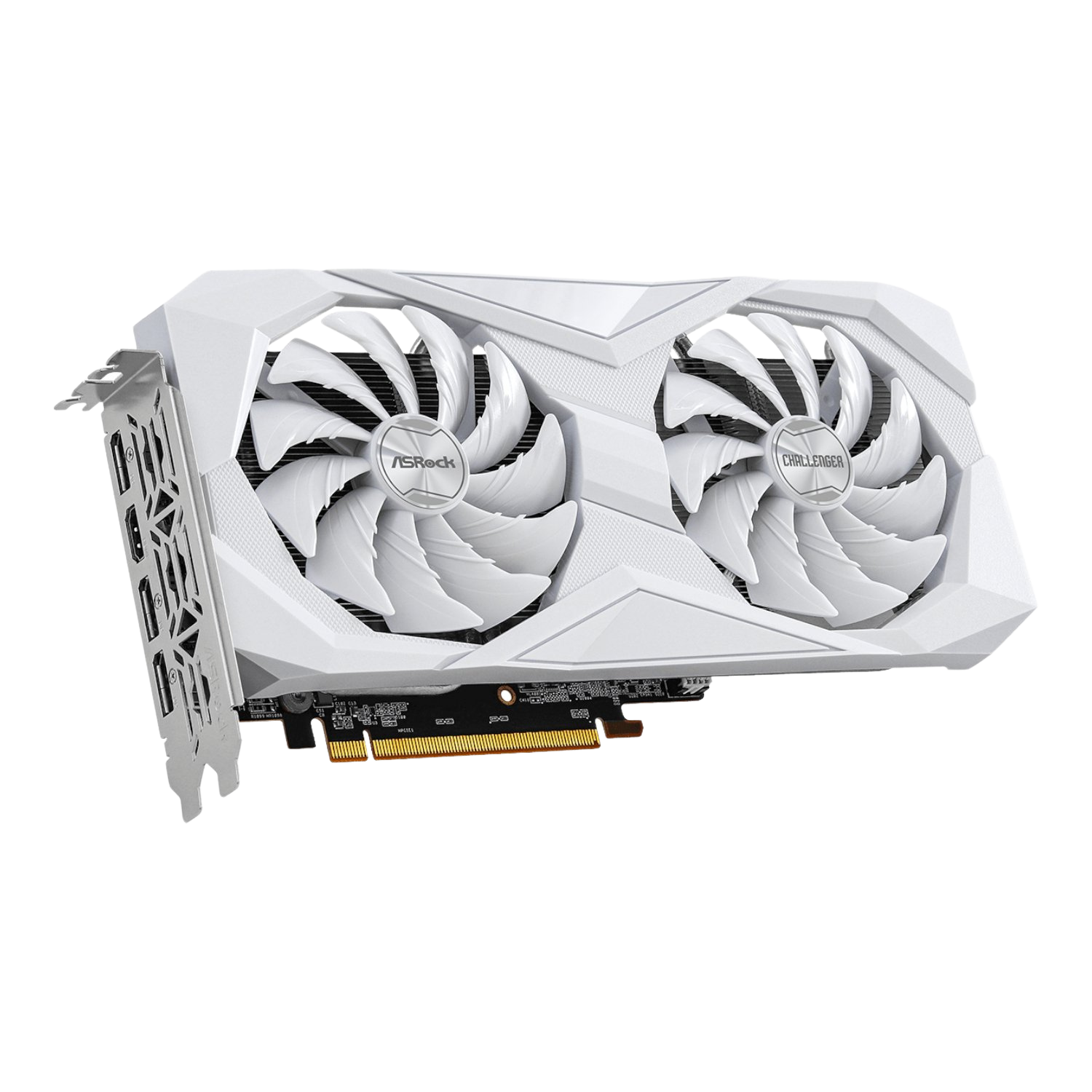

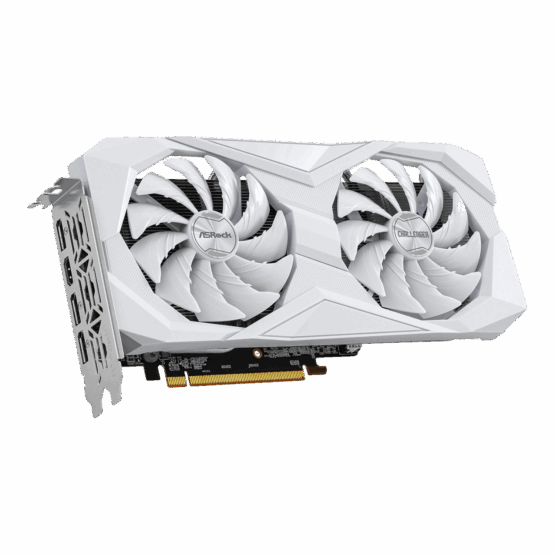

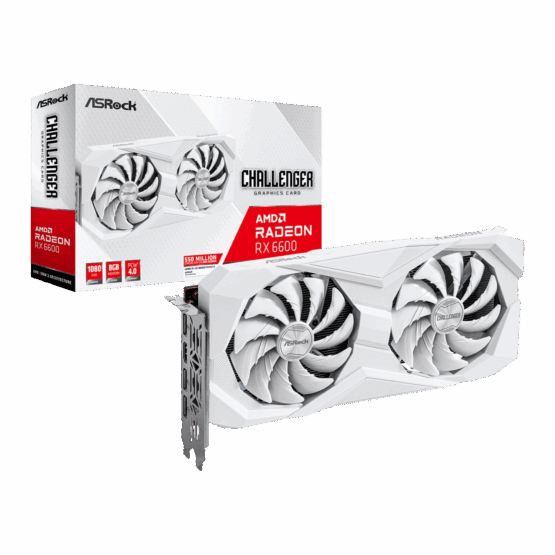

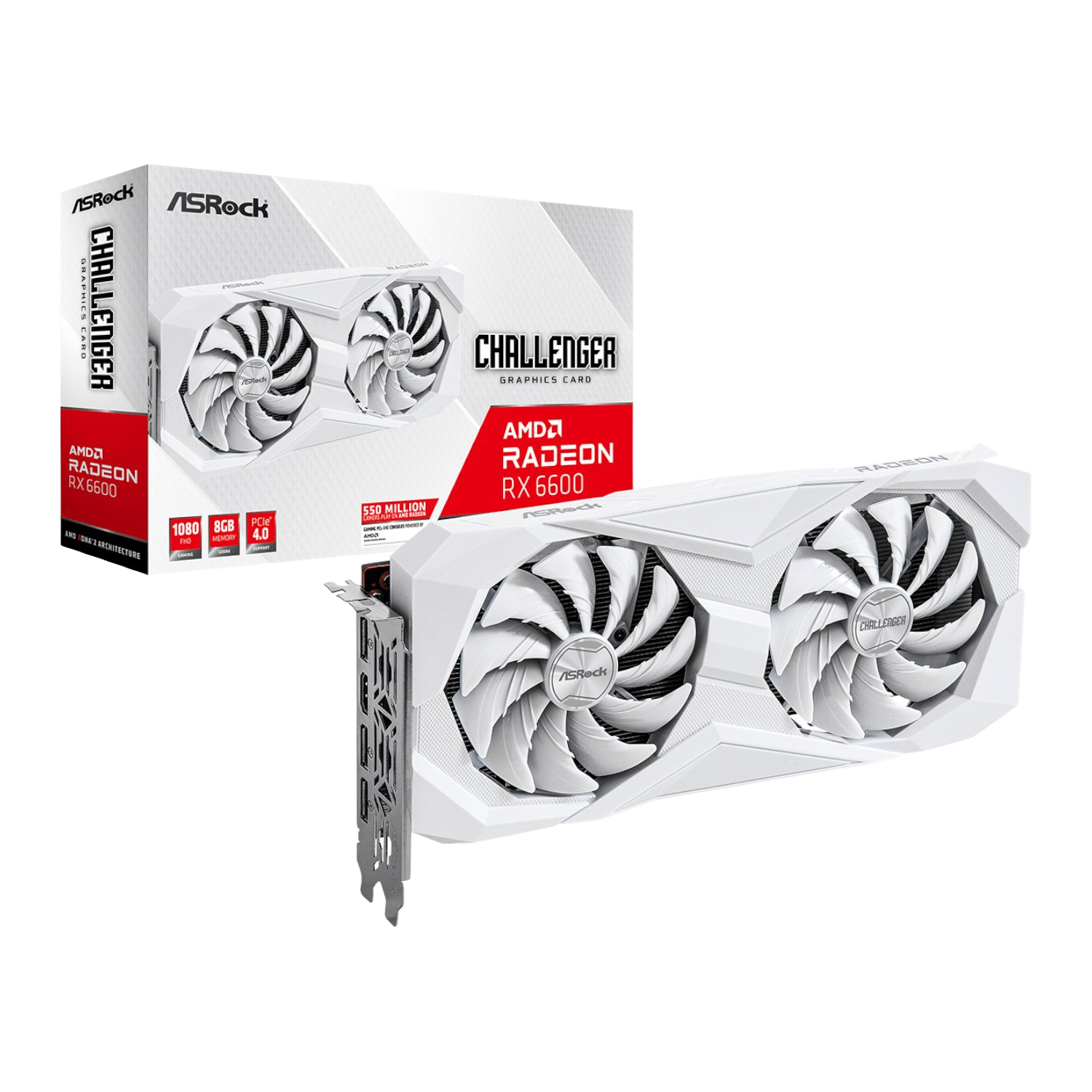

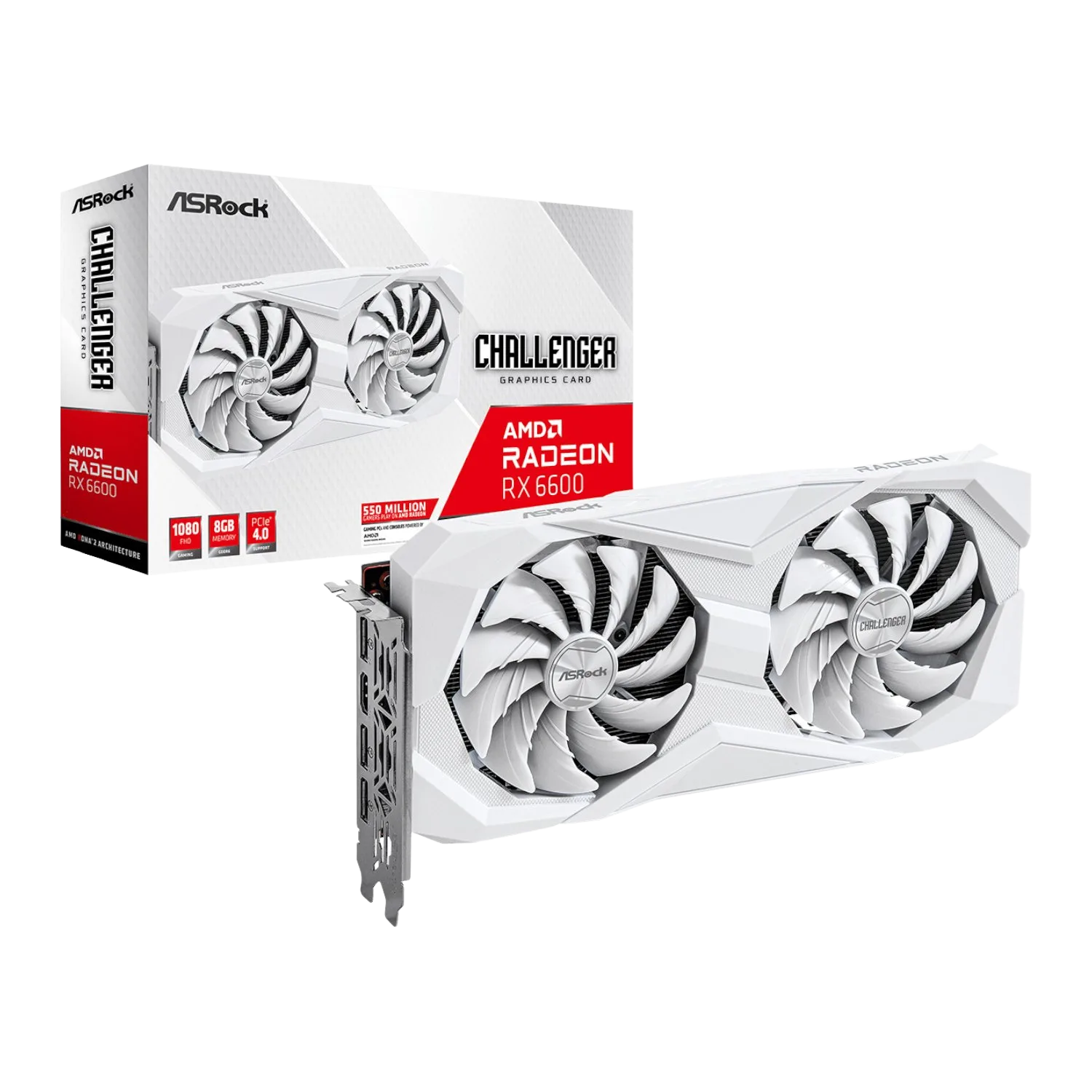

ASRock Radeon RX 6600 Challenger D 8GB GDDR6 White Edition

Description

🔧 Specifications:

🖥️ GPU Engine

• GPU Model: AMD Radeon™ RX 6600

• Architecture: AMD RDNA™ 2

• Stream Processors: 1792

• Game Clock: 2044 MHz

• Boost Clock: Up to 2491 MHz

🎮 Memory

• Memory Size: 8GB GDDR6

• Memory Interface: 128-bit

• Memory Speed: 14 Gbps

• Memory Bandwidth: Up to 224 GB/s

🔌 Interface & Connectivity

• Bus Interface: PCI Express 4.0 x8

• Display Outputs:

  • 3 × DisplayPort 1.4 with DSC

  • 1 × HDMI 2.1

🌡️ Cooling

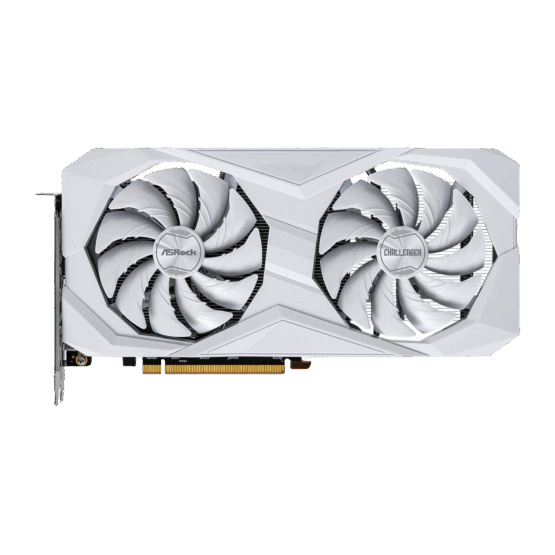

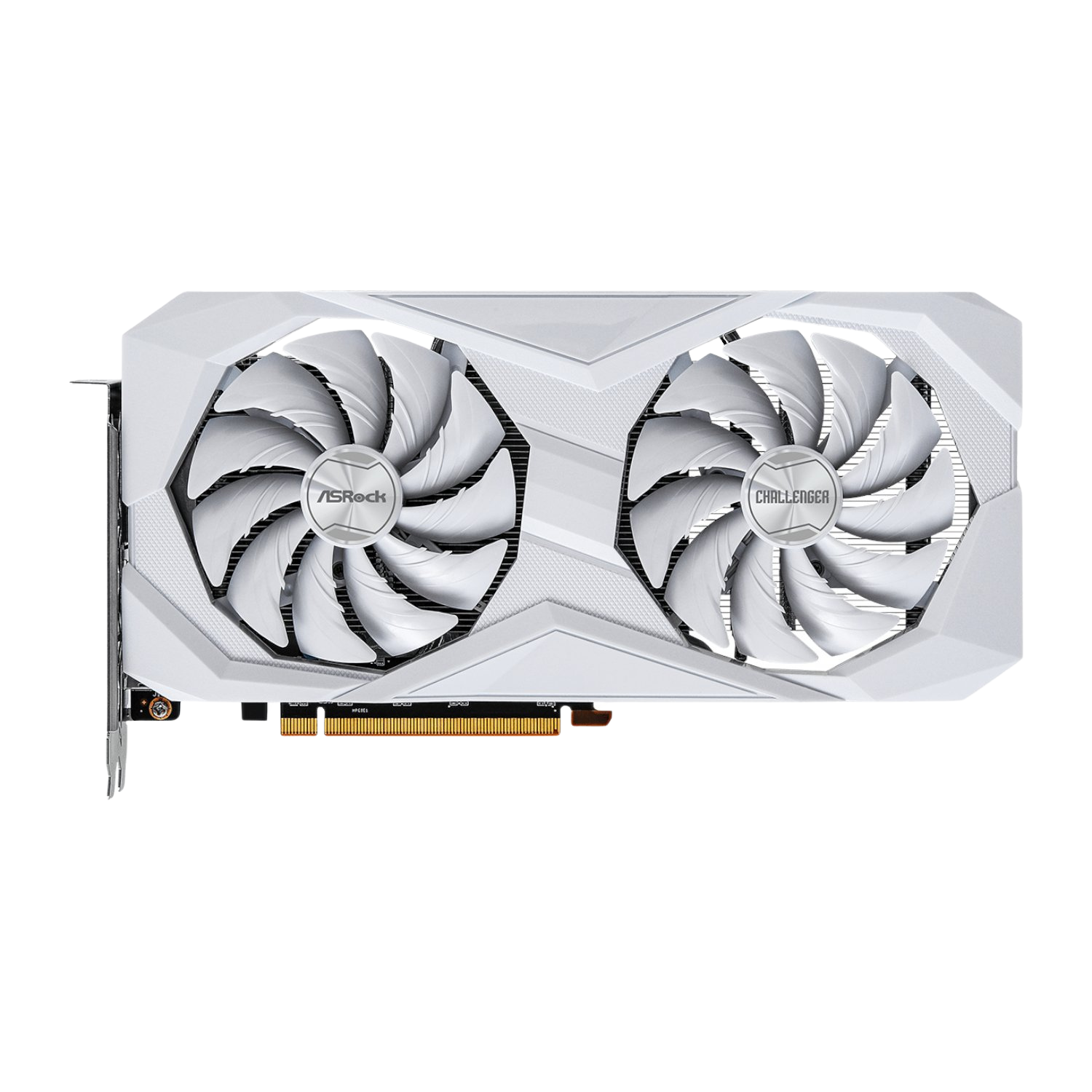

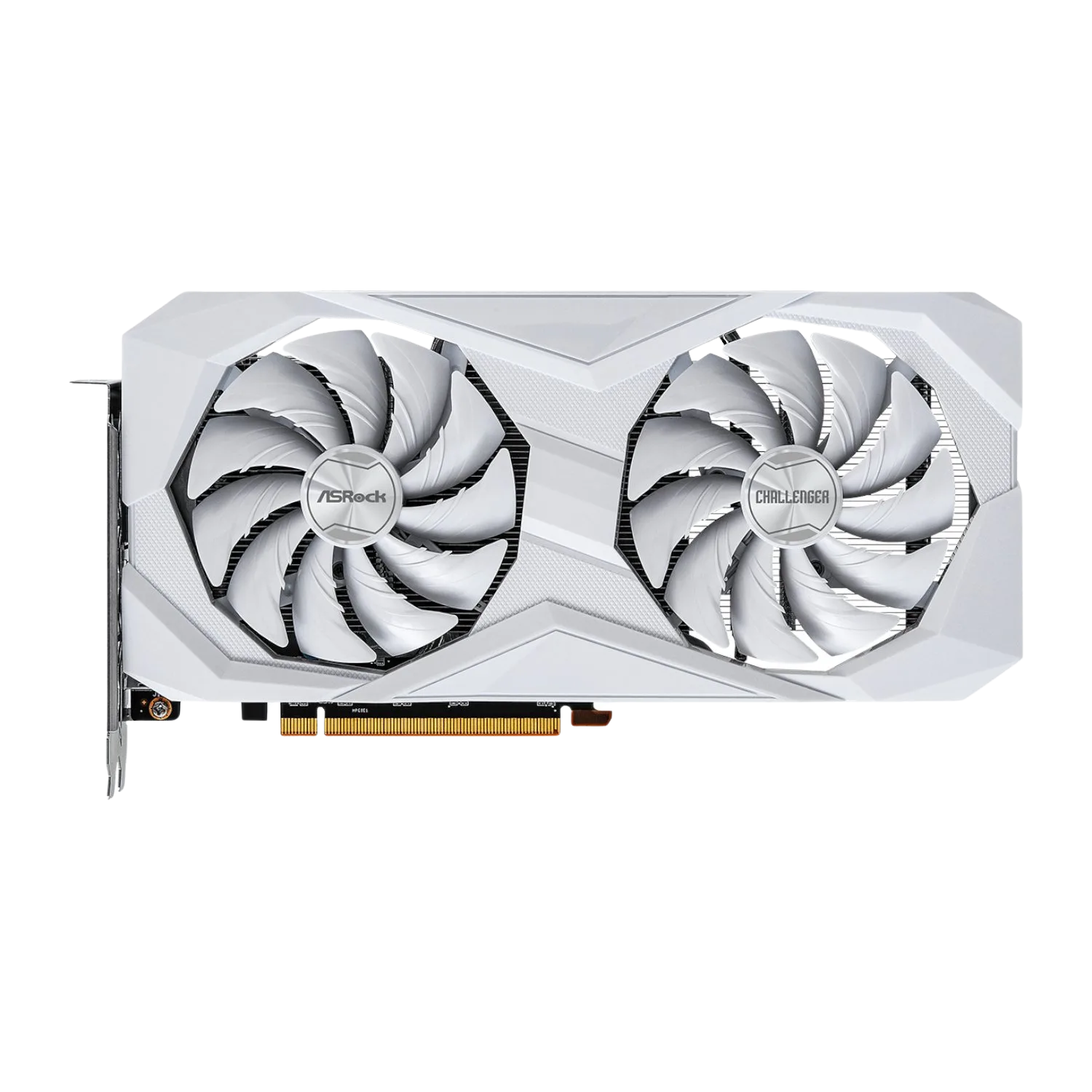

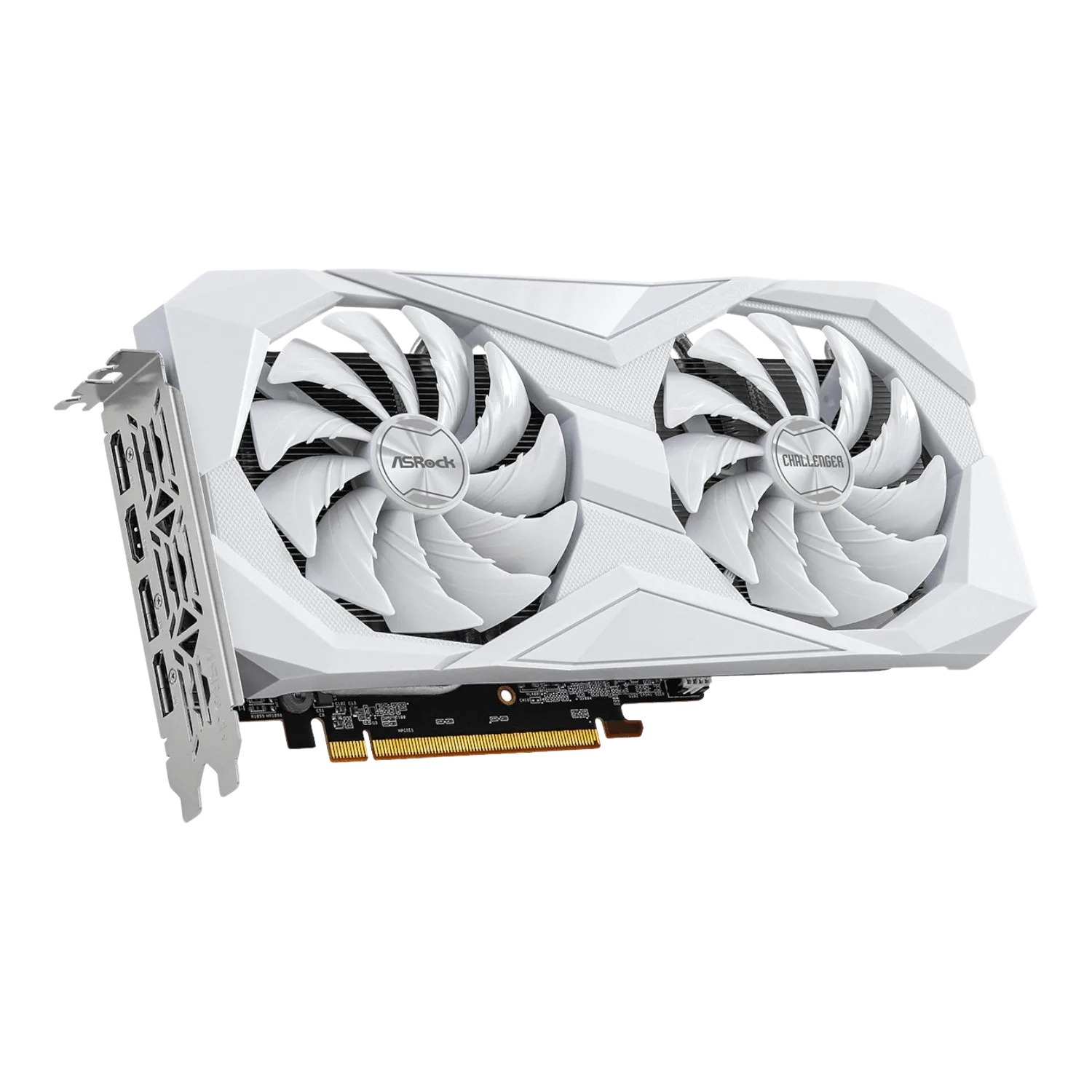

• Cooling System: Dual-fan “Challenger D” design

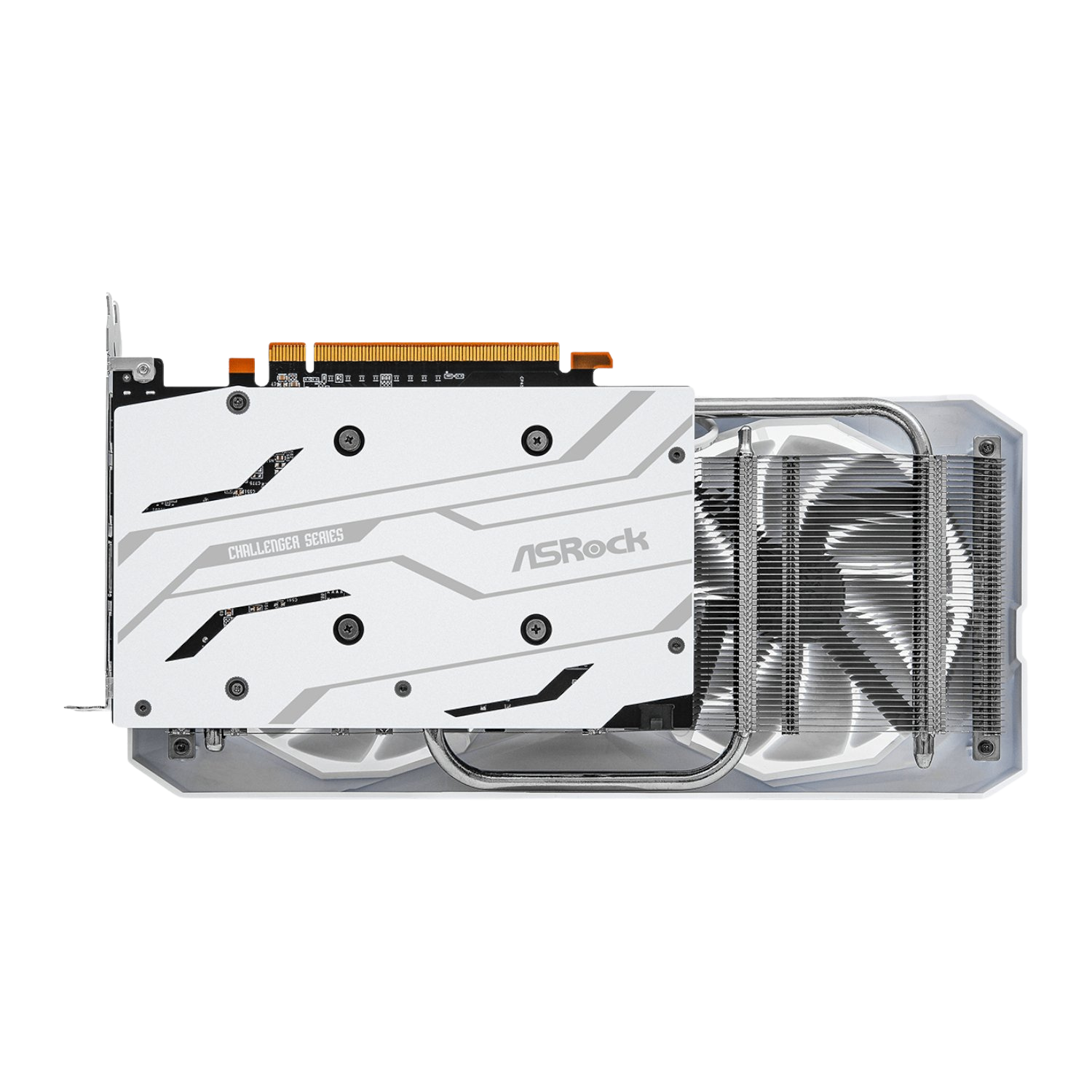

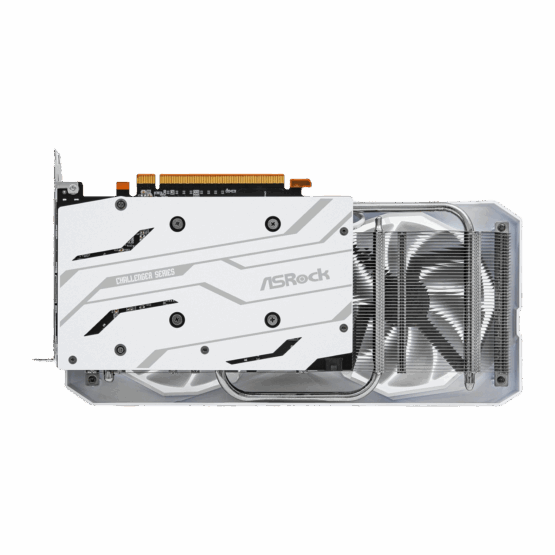

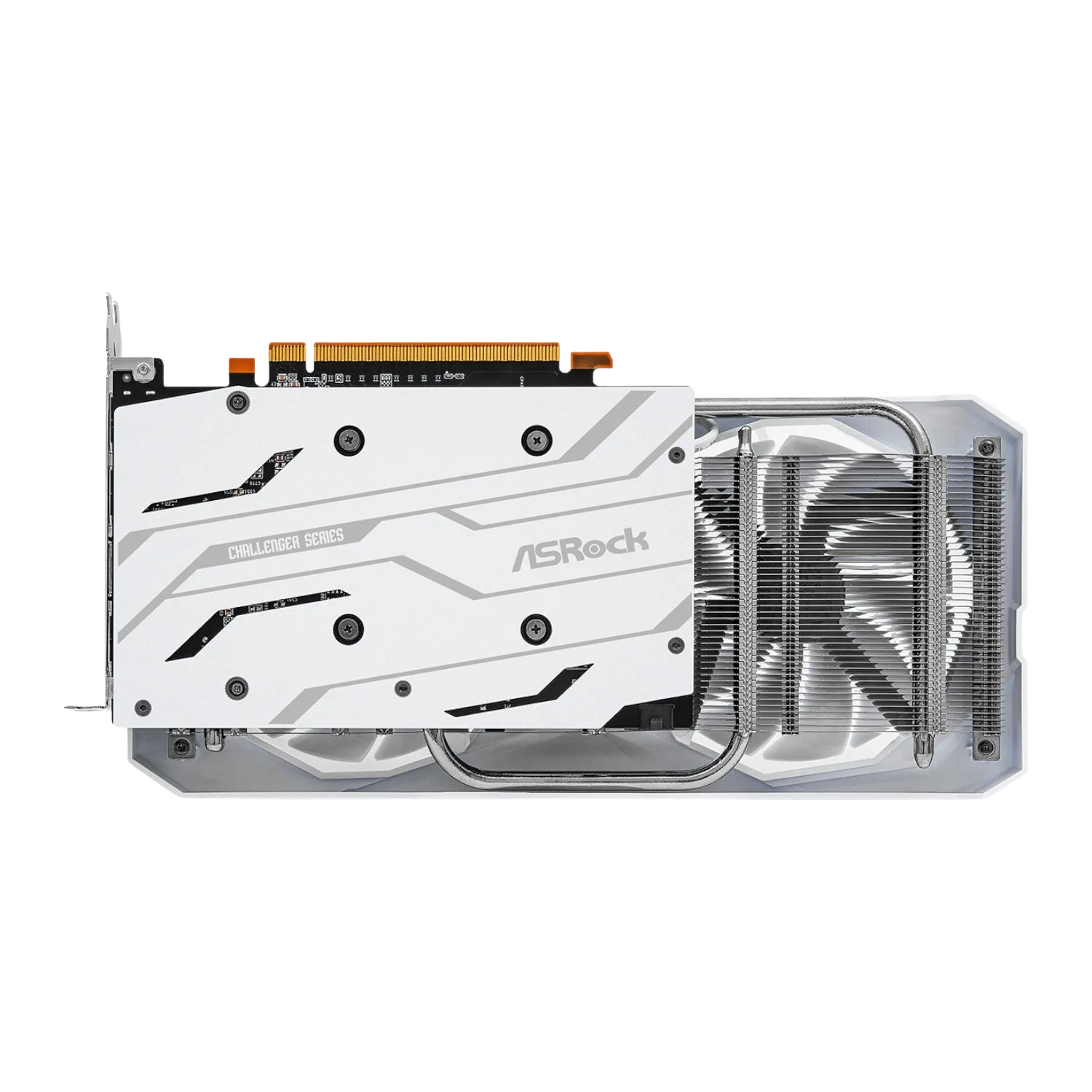

• Heatsink: Aluminum fin-stack with copper base and heatpipes

• Fan Technology: 0dB Silent Cooling (stops under low load)

⚙️ Features

• AMD FidelityFX Super Resolution (FSR)

• DirectX® 12 Ultimate support

• AMD Smart Access Memory support

• Hardware Ray Tracing

• AV1 decode support

• Radeon Anti-Lag & Radeon Boost

🔋 Power

• Recommended PSU: 500W or higher

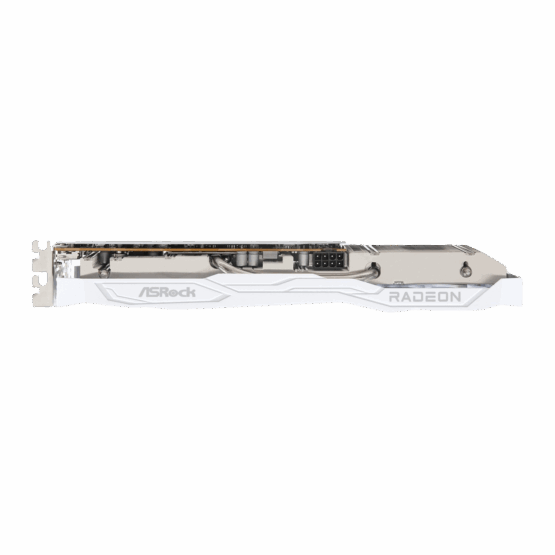

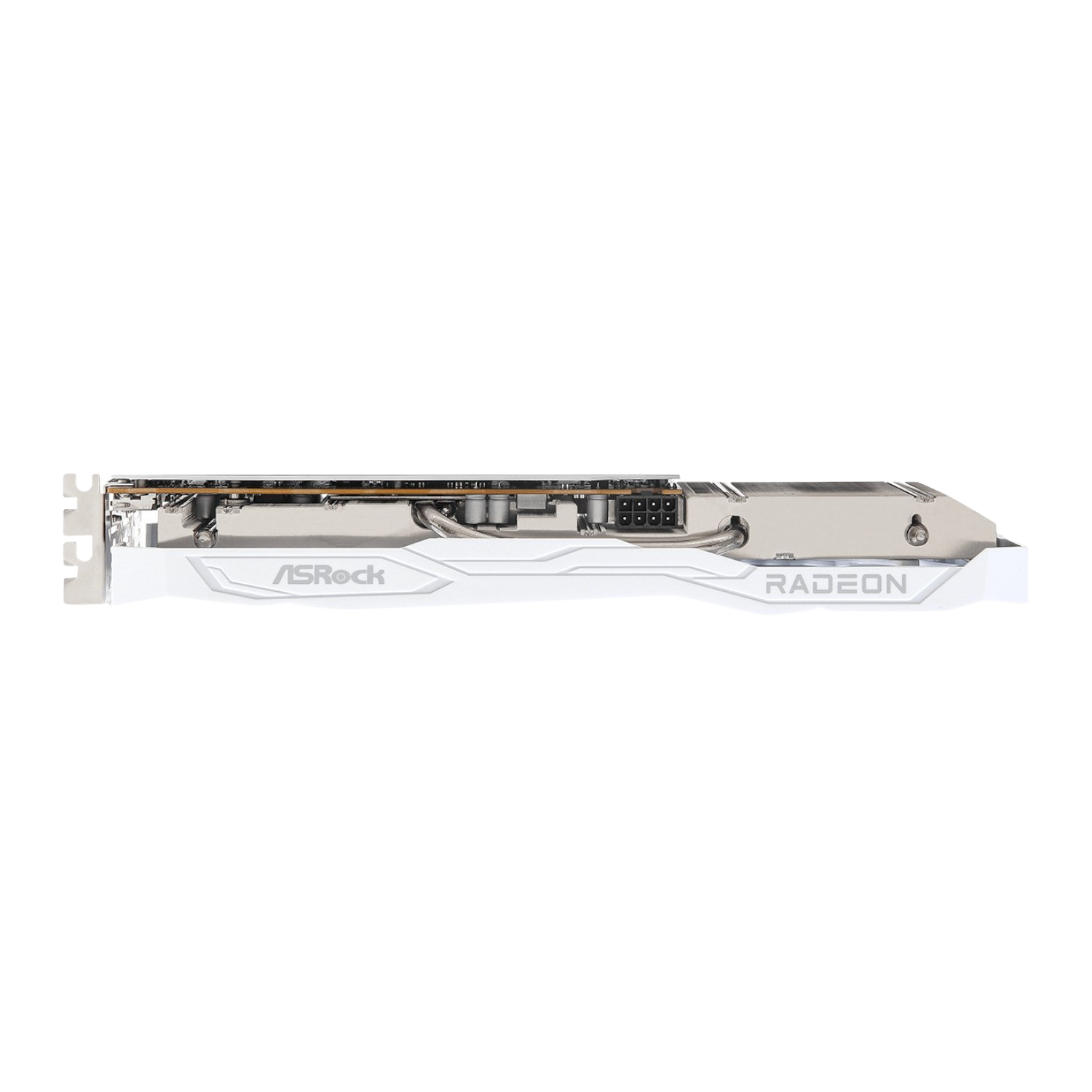

• Power Connector: 1 × 8-pin

• Typical Board Power: ~132W

📐 Physical

• Card Dimensions: Approx. 269 × 132 × 41 mm (Dual Slot)

• Color Theme: White shroud with black accents

🧑‍💻 Software

• ASRock Tweak 2.0 for OC, monitoring, fan control
