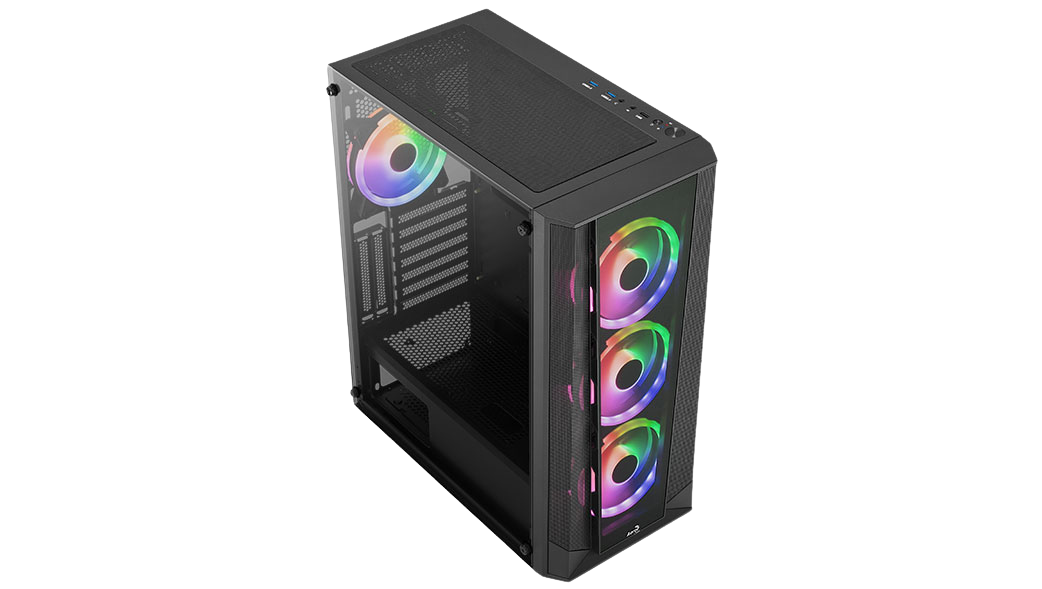

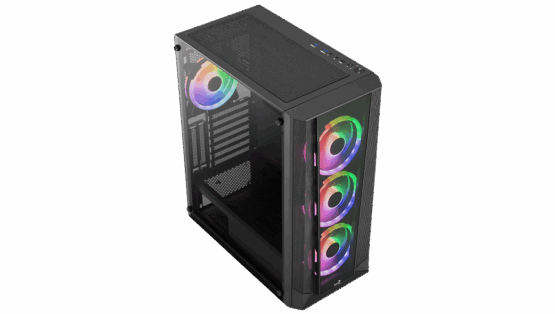

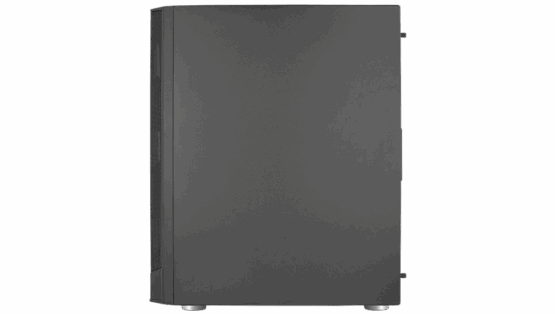

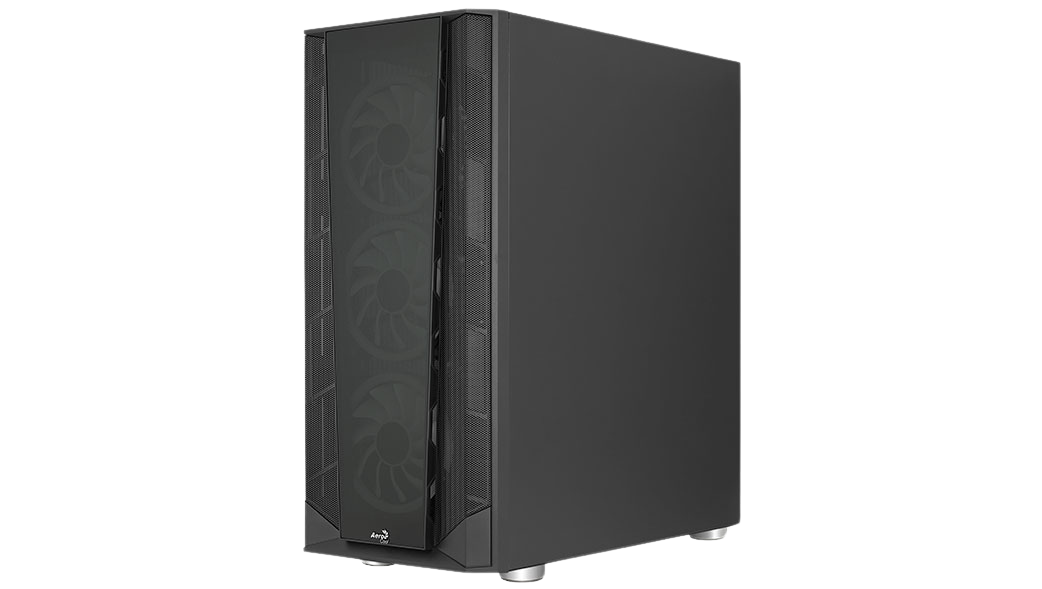

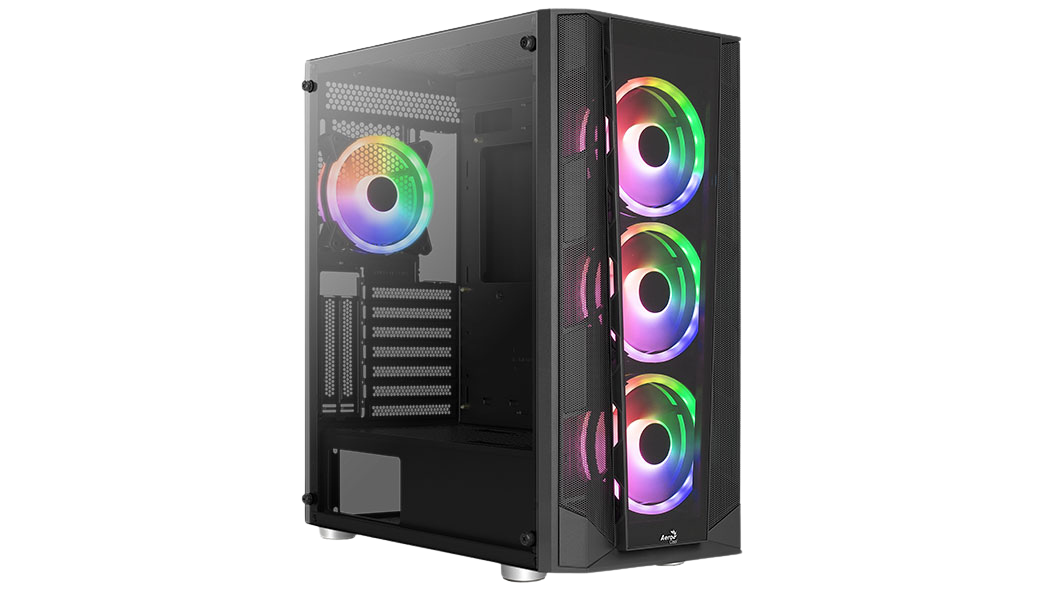

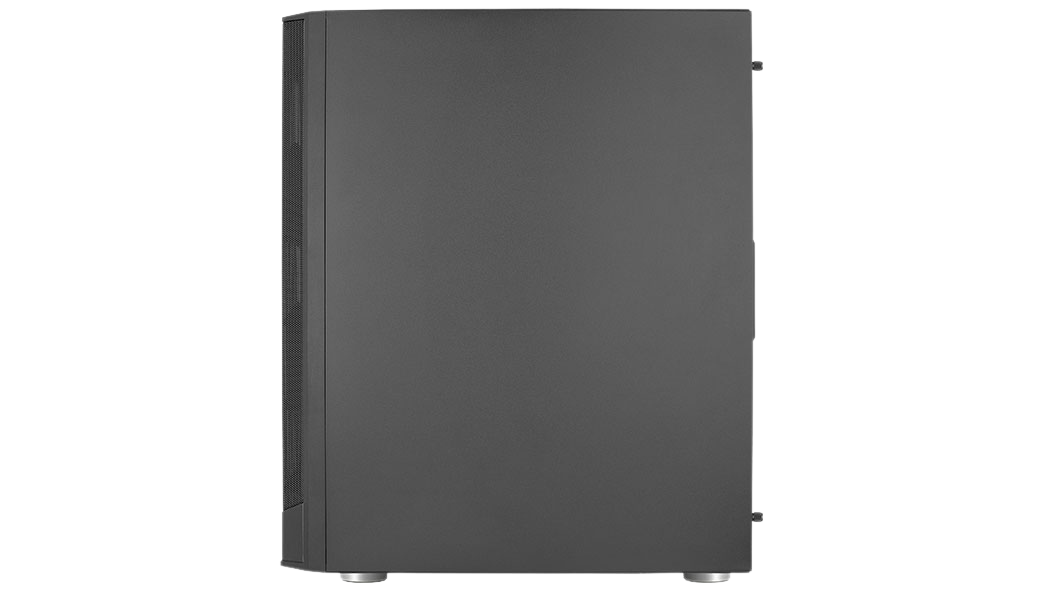

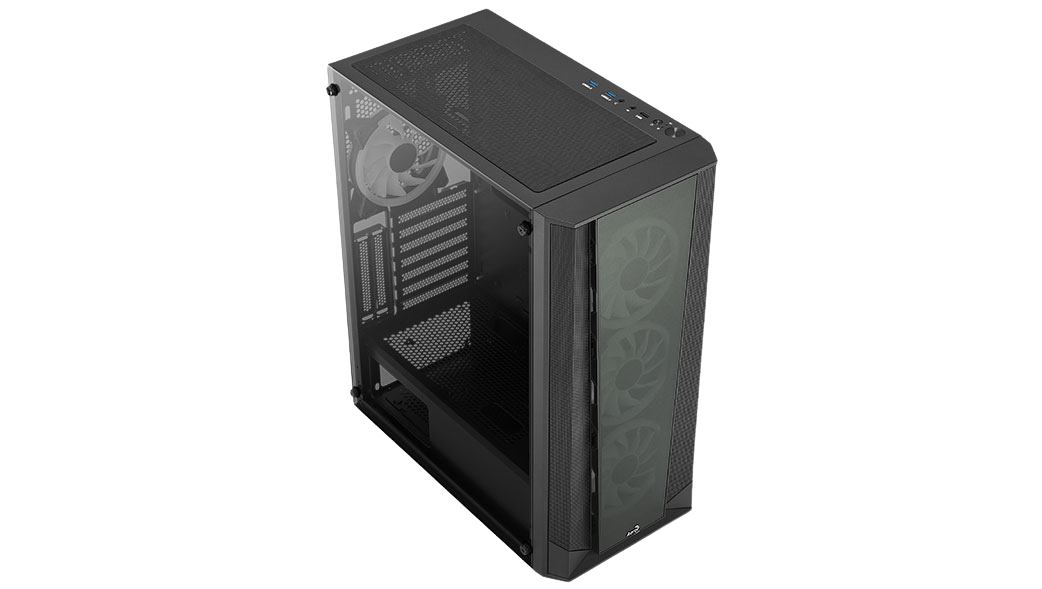

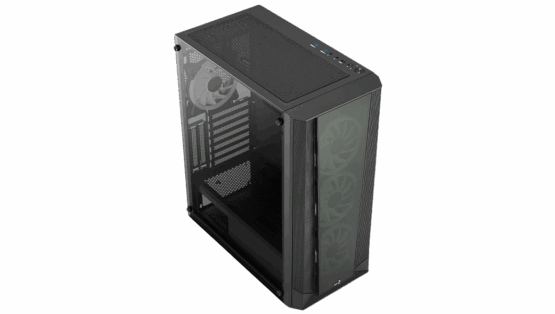

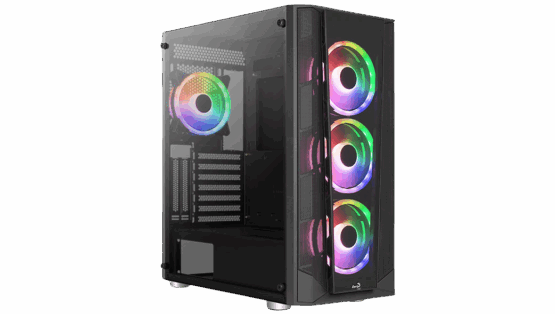

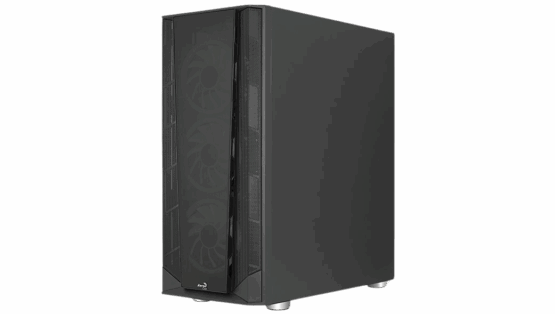

AeroCool Prism ARGB

Description

🖥️ Case Overview

• Model: Prism ARGB v3

• Case Type: Mid Tower

• Color: Black

• Material: SPCC Steel chassis, tempered glass front and side panels, ABS accents

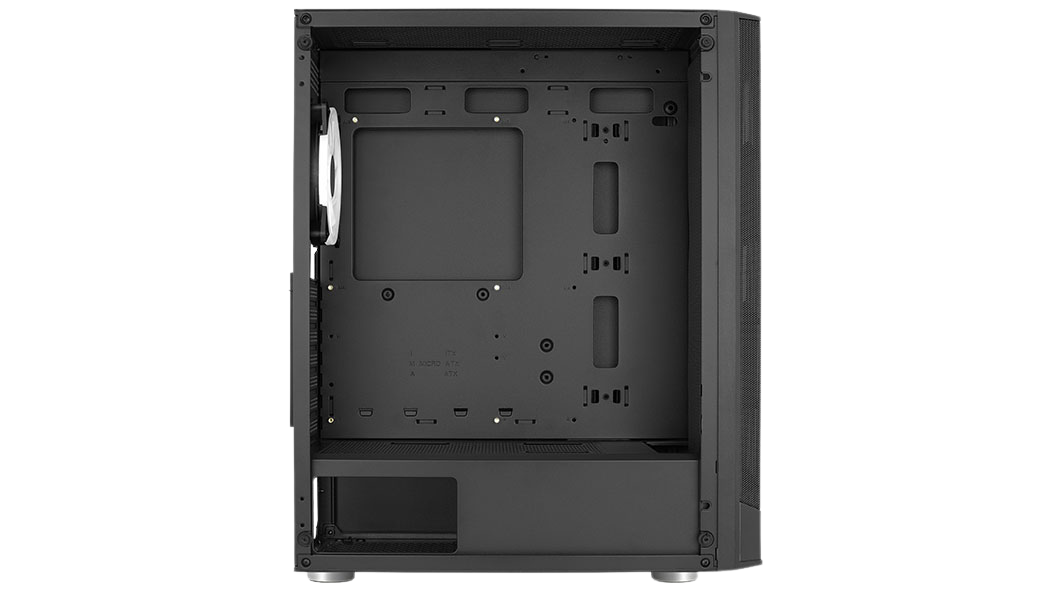

• Motherboard Support: ATX, Micro-ATX, Mini-ITX

📏 Dimensions

• Chassis Dimensions (W x H x D): 210 x 465 x 350 mm

• Overall Dimensions (W x H x D): 216.7 x 477 x 403 mm

• Steel Thickness: 0.5 mm

💾 Storage Support

• 3.5″ Drive Bays: 2 (1 x 3.5” only + 1 x 3.5”/2.5” combo)

• 2.5″ Drive Bays: 2 (1 x 2.5” only + 1 x 2.5”/3.5” combo)

📦 Expansion & Clearance

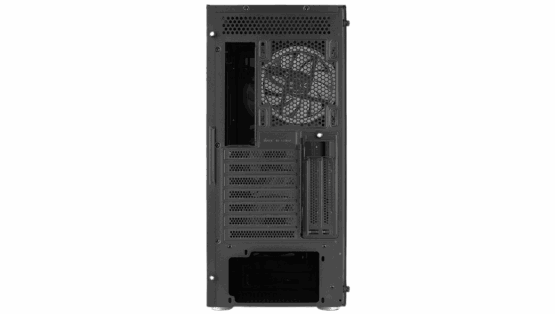

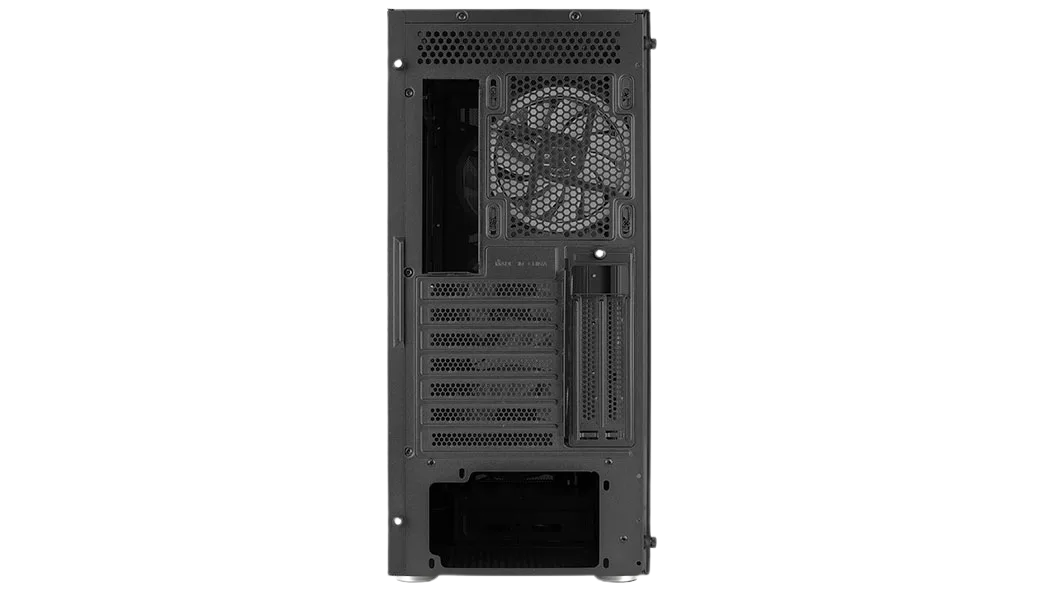

• Expansion Slots: 7 horizontal + 2 vertical

• GPU Length Clearance: Up to 346 mm (without front radiator)

• CPU Cooler Height Clearance: Up to 164 mm

• PSU Length Clearance: Up to 184 mm (with cables)

• Vertical GPU Mount Support: Yes

❄️ Cooling System

• Pre-Installed Fans:

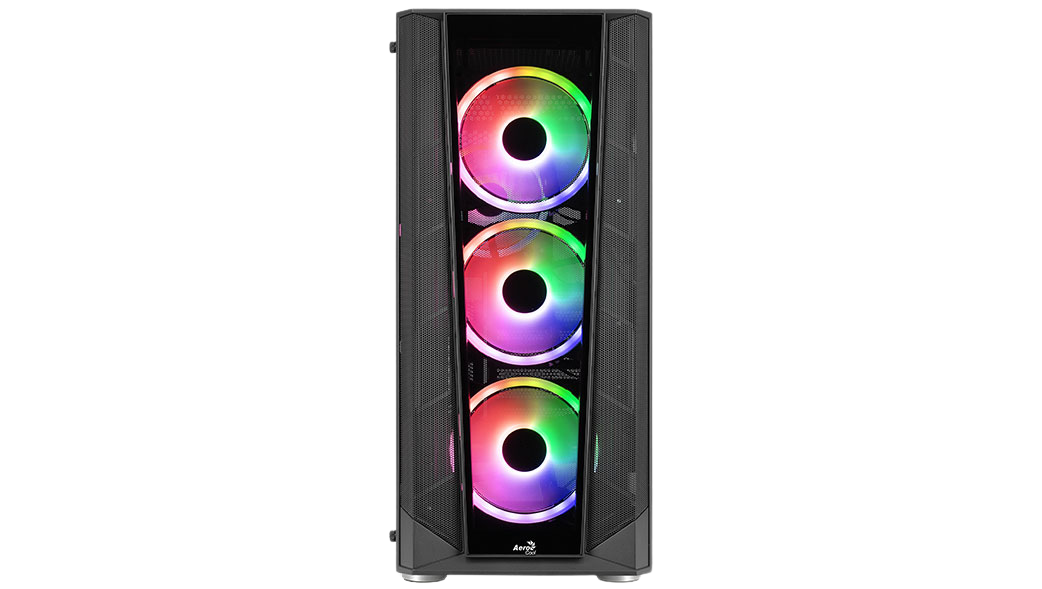

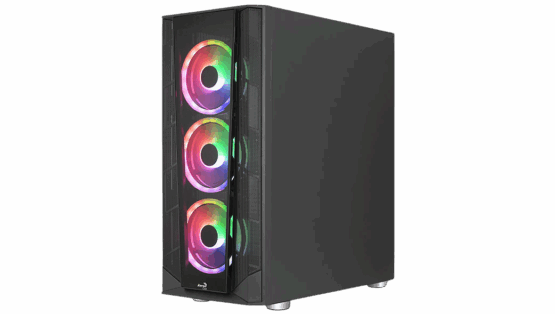

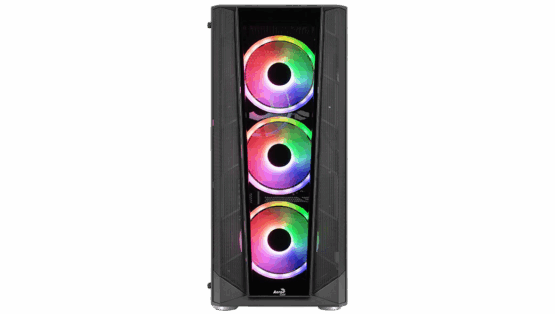

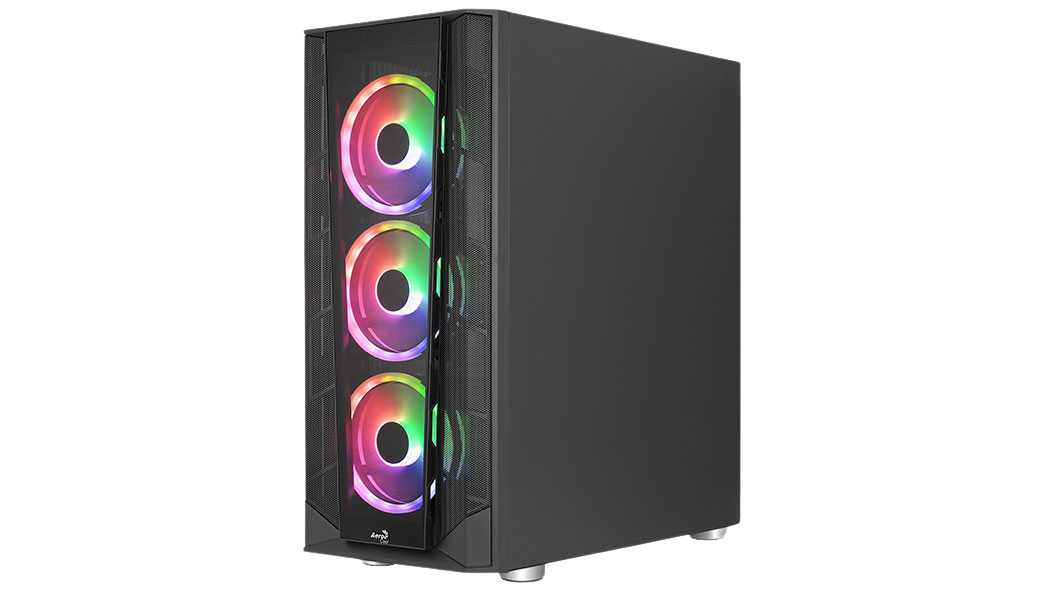

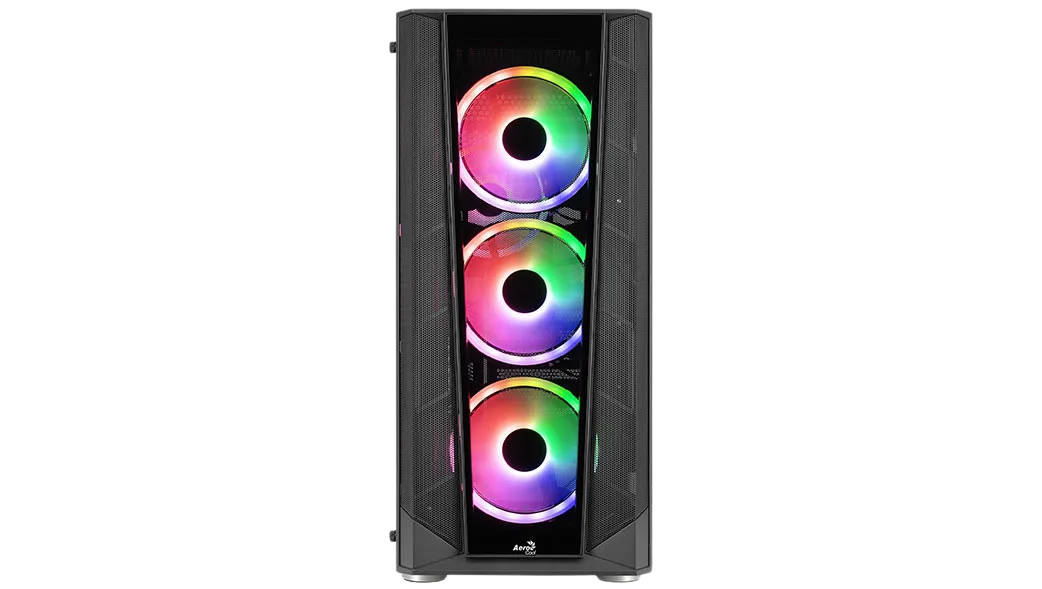

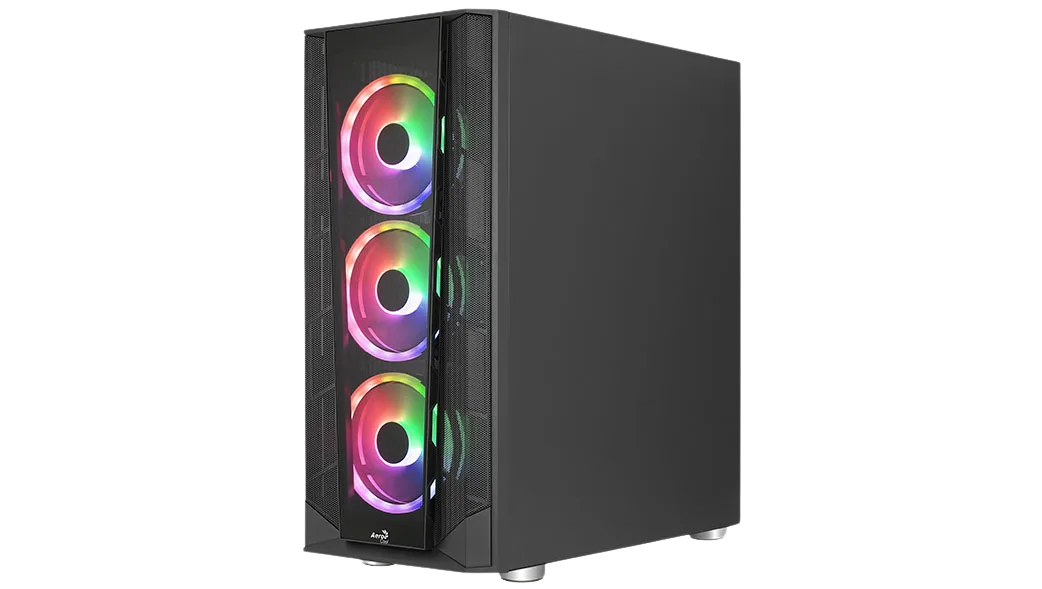

  • Front: 3 x 120 mm ARGB

  • Rear: 1 x 120 mm ARGB

• Fan Support:

  • Front: 3 x 120 mm or 3 x 140 mm

  • Top: 2 x 120 mm or 2 x 140 mm

  • Rear: 1 x 120 mm

  • PSU Shroud: 2 x 120 mm

• Radiator Support:

  • Front: Up to 360 mm

  • Top: Up to 280 mm (thickness below 55 mm)

  • Rear: 120 mm

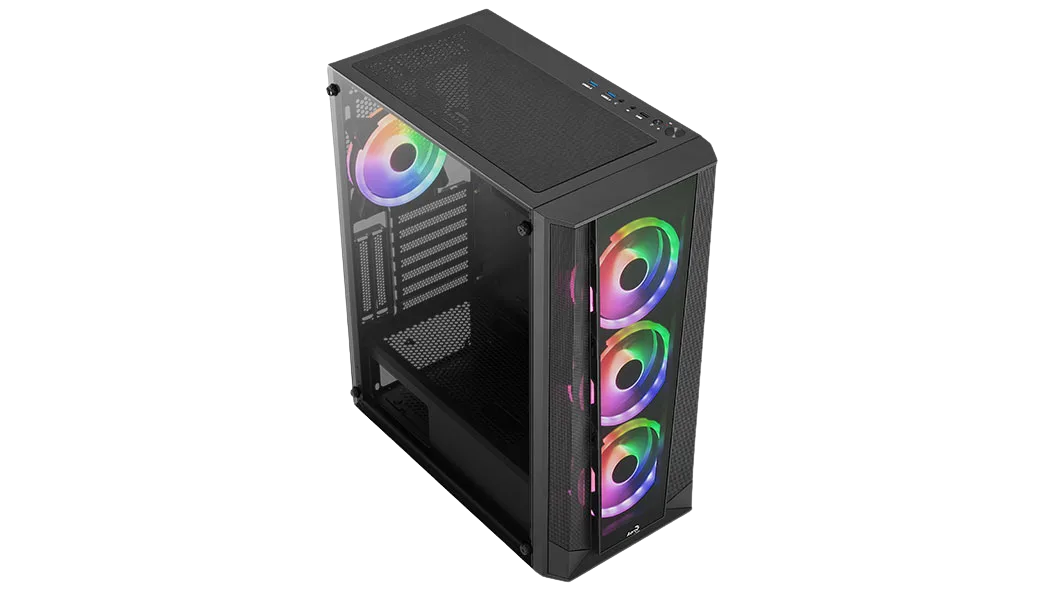

🌈 RGB Features

• ARGB Lighting: 5V 3-pin ARGB support for motherboard sync (ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion)

• Controller: LED button or motherboard software

• ARGB Hub: Included 6-port hub (supports 6 x 6-pin ARGB fans + 2 x 3-pin ARGB devices)

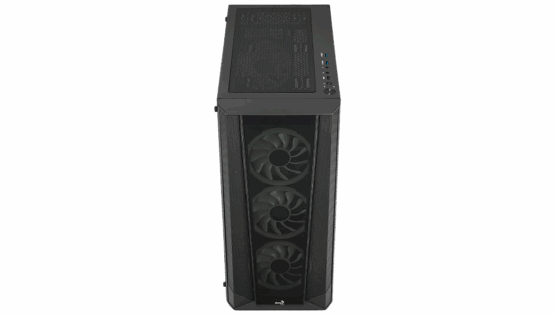

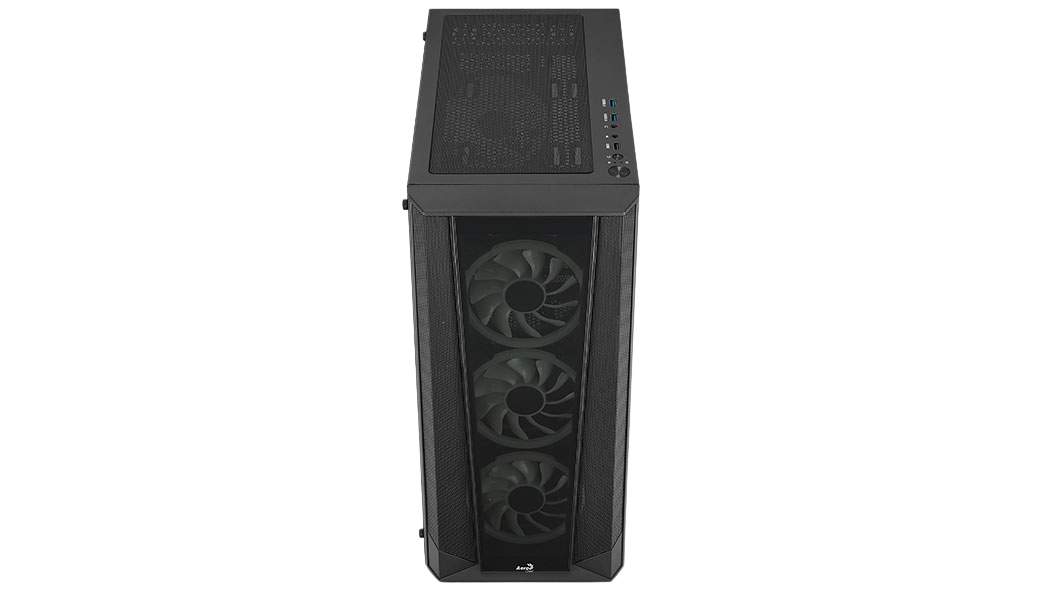

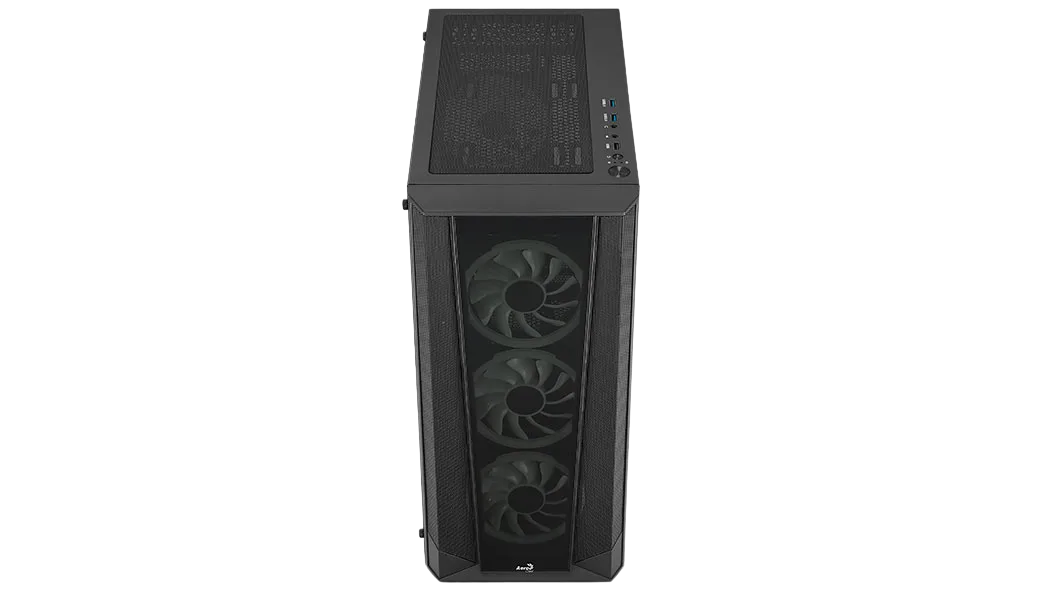

🔌 Front I/O Panel

• 2 x USB 3.0

• 1 x USB 2.0

• HD Audio + Microphone

• Power & Reset Buttons

🧰 Other Features

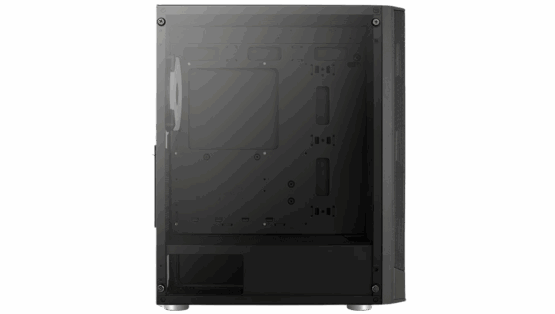

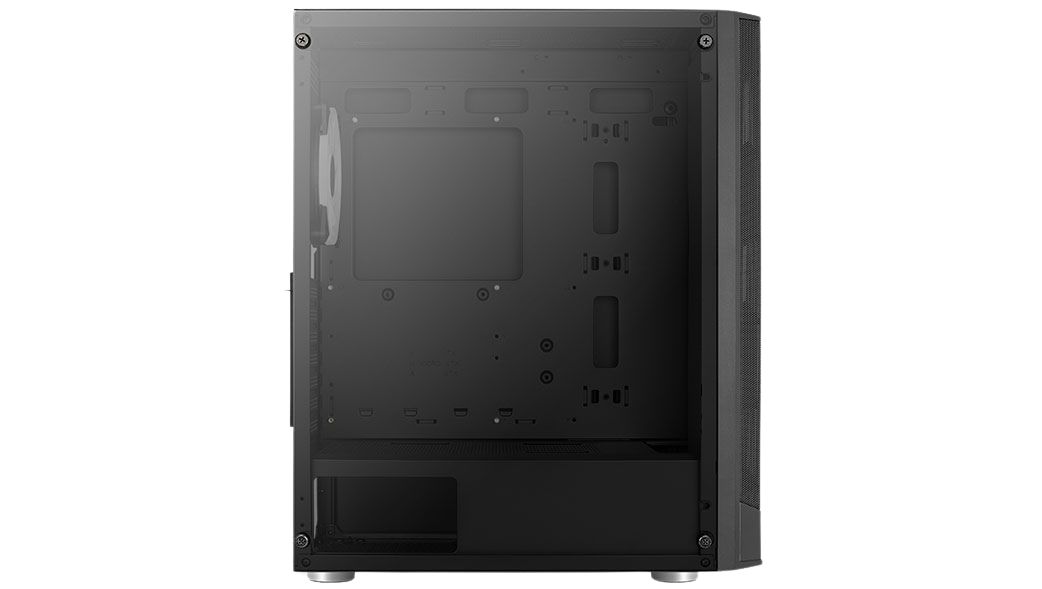

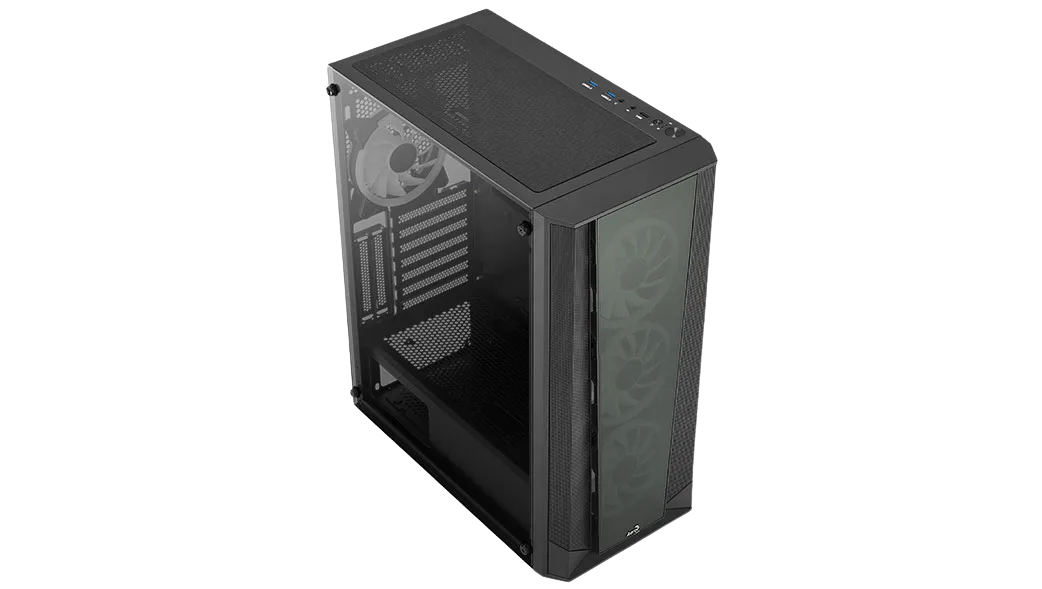

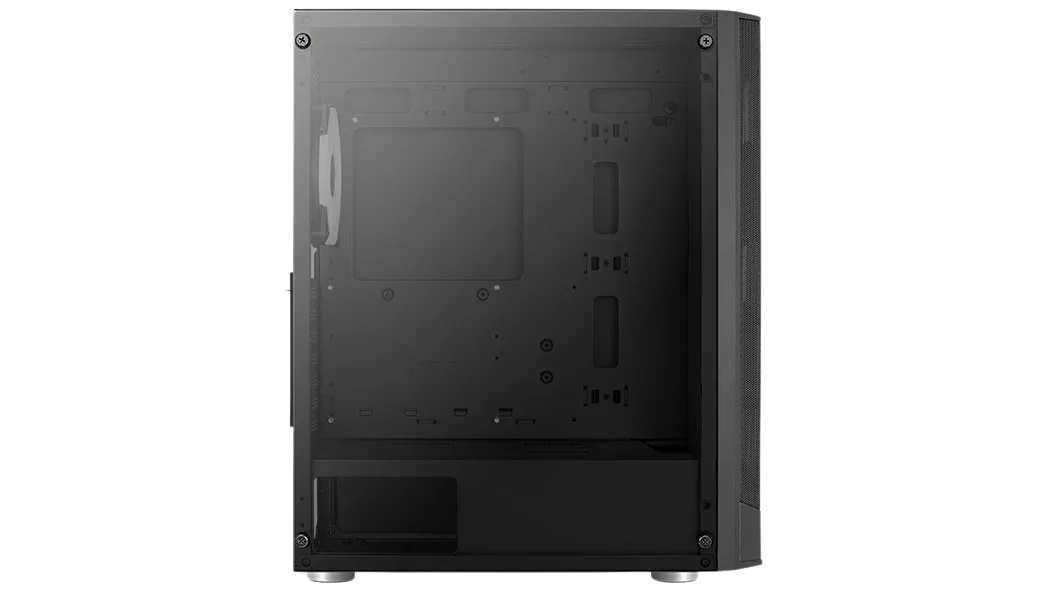

• Tempered glass front and side panels

• Mesh side airflow intake

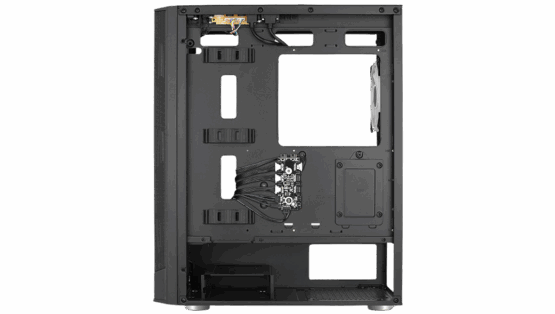

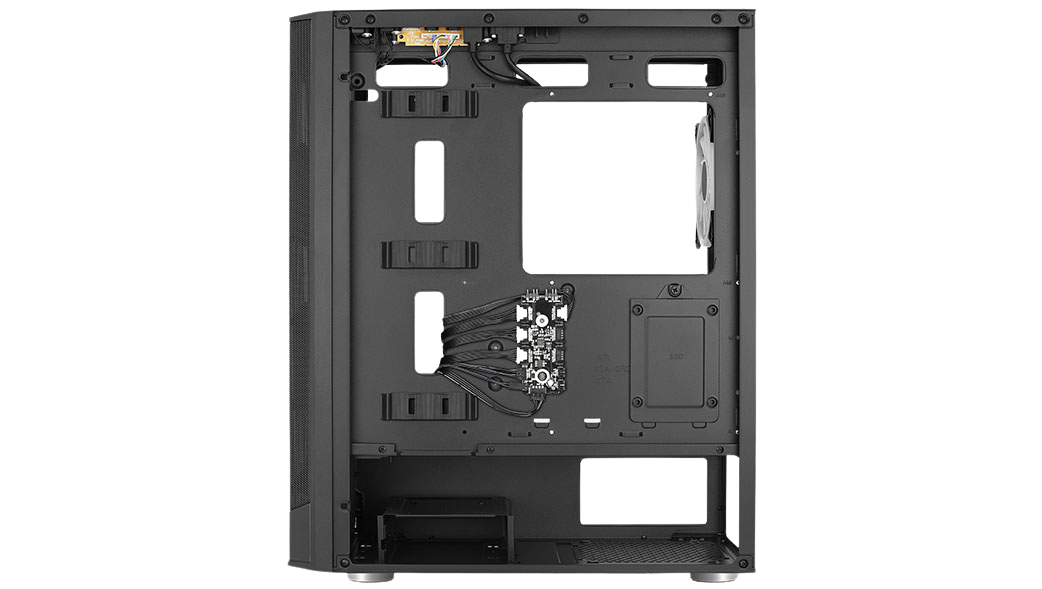

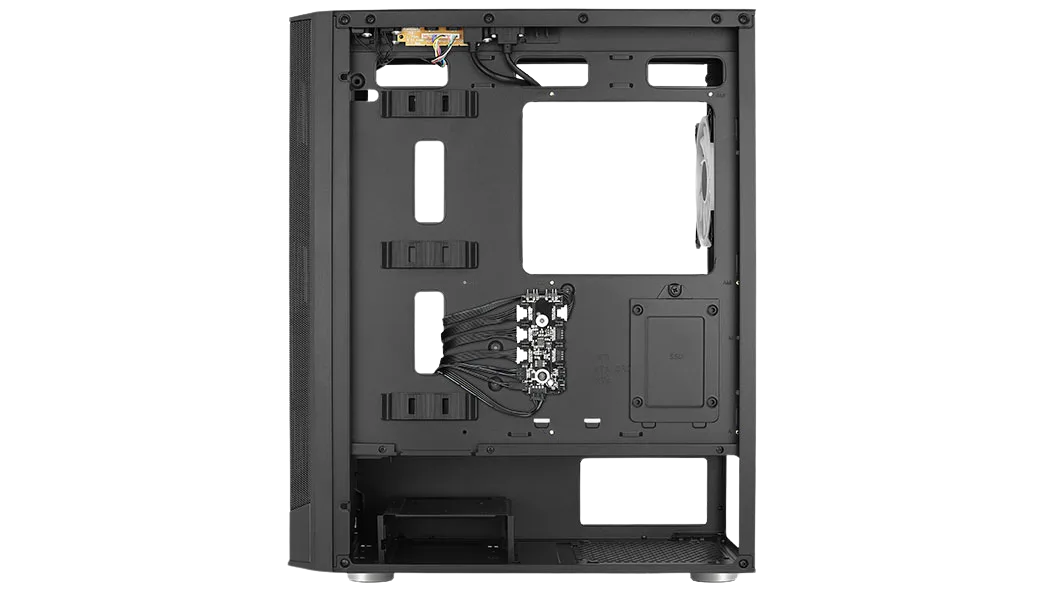

• Cable management: 22.6 mm clearance with built-in cable clips

• Removable dust filters (top, bottom)
