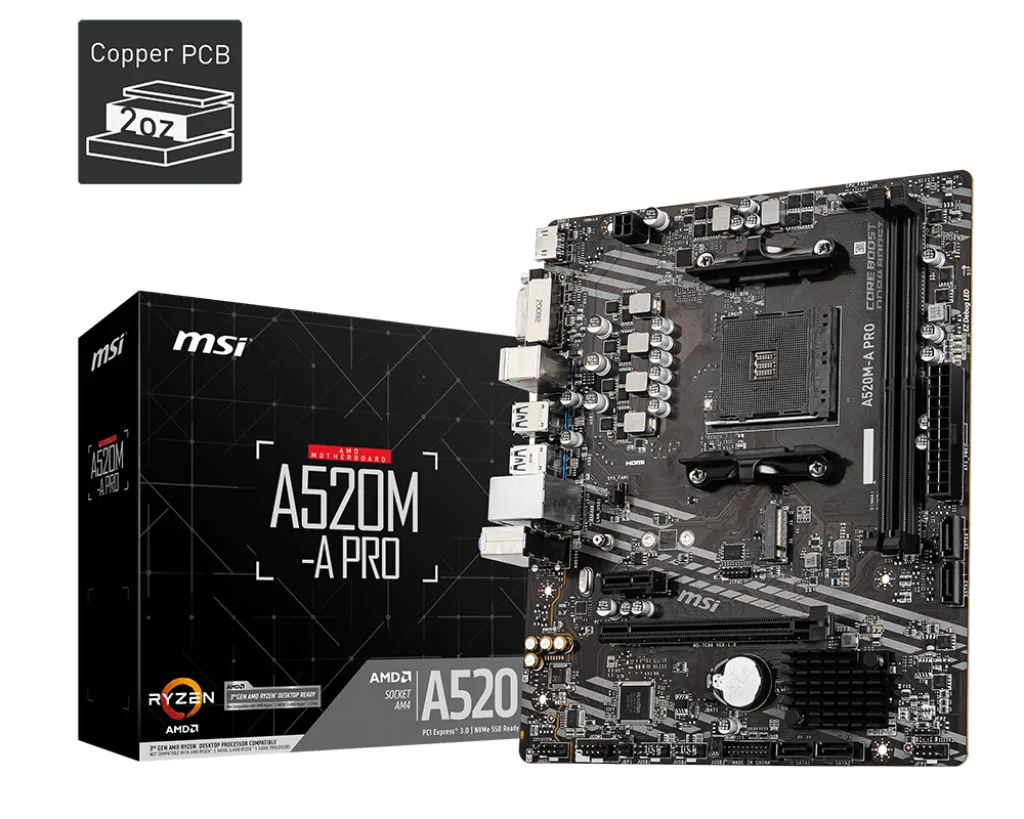

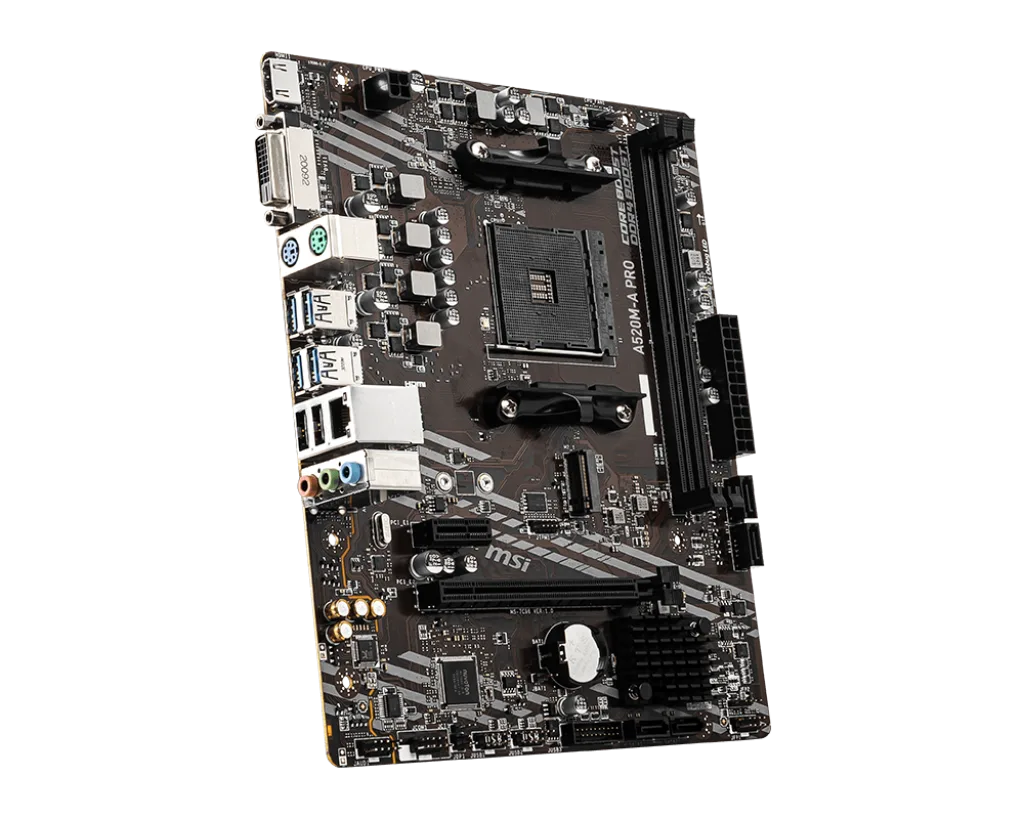

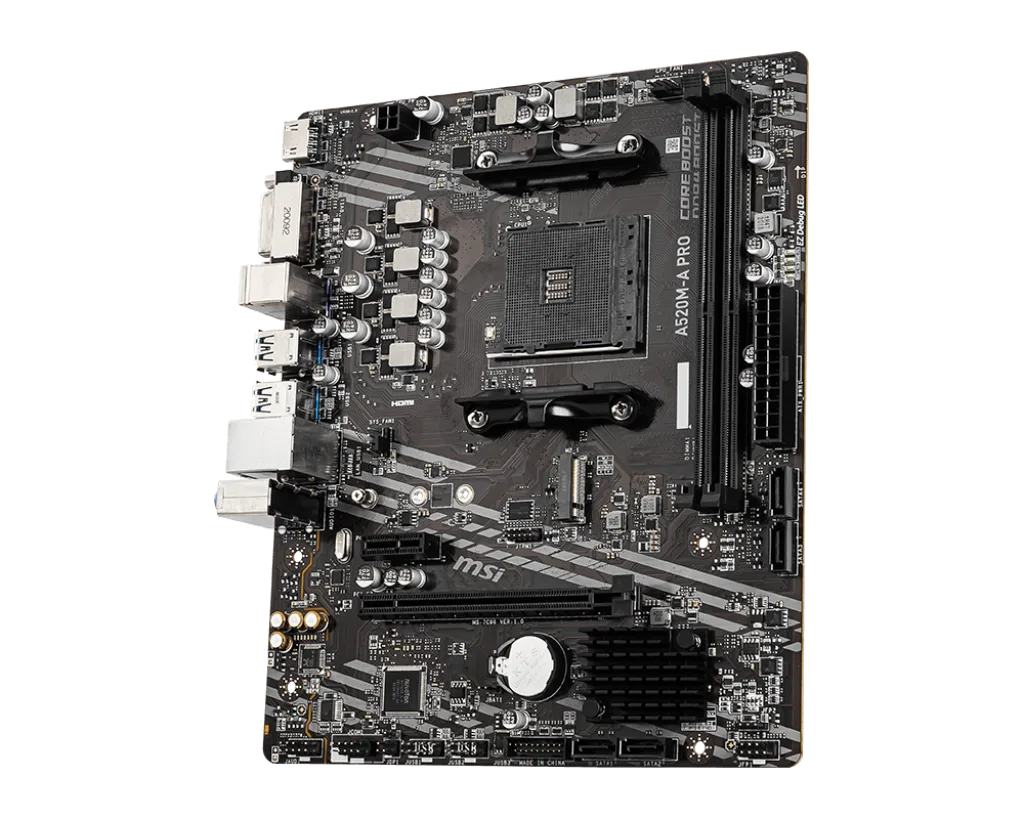

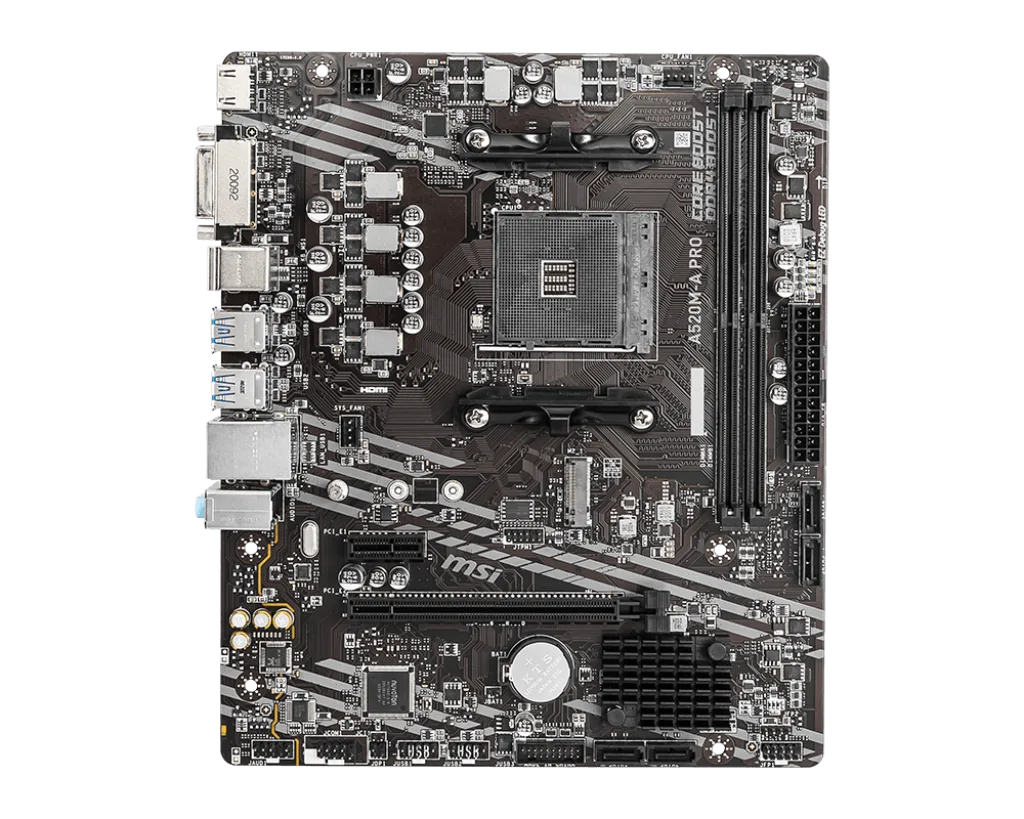

A520M-A PRO

Description

General Specifications:

• Form Factor: Micro-ATX
• Chipset: AMD A520
• Socket: AM4
• Memory Support:
  • 2 x DIMM slots
  • Up to 64GB DDR4 RAM
  • Supports DDR4 speeds up to 4600+ MHz (OC)
• BIOS: MSI Click BIOS 5

CPU Compatibility:

• Supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors (except Ryzen 3200G & 3400G)

Expansion Slots:

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage Options:

• M.2 Slot: 1 x M.2 slot (PCIe 3.0 x4 & SATA)
• SATA Ports: 4 x SATA III (6Gbps)

Graphics Support (via CPU APU):

• Video Outputs: HDMI, VGA
• Max Resolution:
  • HDMI: 4K @ 60Hz
  • VGA: 1920×1200 @ 60Hz

USB Connectivity:

• Rear I/O:
  • 2 x USB 3.2 Gen 1 (5Gbps)
  • 4 x USB 2.0
• Internal Headers:
  • Supports additional USB 3.2 Gen 1 and USB 2.0 ports

Networking:

• LAN: Realtek 8111H Gigabit Ethernet

Audio:

• Codec: Realtek ALC892/ALC897
• Audio Ports: 3 (Line-In, Line-Out, Mic-In)

Power & Miscellaneous:

• Power Connectors:
  • 24-pin ATX main power
  • 8-pin CPU power
• Fan Headers: 1 x CPU fan, 1 x system fan
• TPM Support: Yes (for Windows 11 compatibility)
