Description
📏 Dimensions & Physical Specifications
-
Case Type: Mid-Tower ATX
-
Dimensions: 520 mm (L) × 245 mm (W) × 520 mm (H)
-
Weight: Approximately 12.4 kg
-
Materials: Steel frame, tempered glass side panel, plastic accents
-
Color Options: Black, White
🧩 Motherboard & Component Compatibility
-
Motherboard Support: E-ATX (up to 305 mm × 277 mm), ATX, Micro-ATX, Mini-ITX
-
Maximum GPU Length: Up to 400 mm
-
Maximum CPU Cooler Height: Up to 170 mm
-
Maximum PSU Length: Up to 250 mm
💾 Storage Options
-
Drive Bays:
-
2 × 3.5″ HDDs
-
4 × 2.5″ SSDs
-
❄️ Cooling & Radiator Support
Pre-Installed Fans:
-
3 × 120 mm AF120 RGB ELITE fans (front-mounted)
Fan Mounts:
-
Front: 3 × 120 mm or 2 × 140 mm
-
Top: 3 × 120 mm or 2 × 140 mm
-

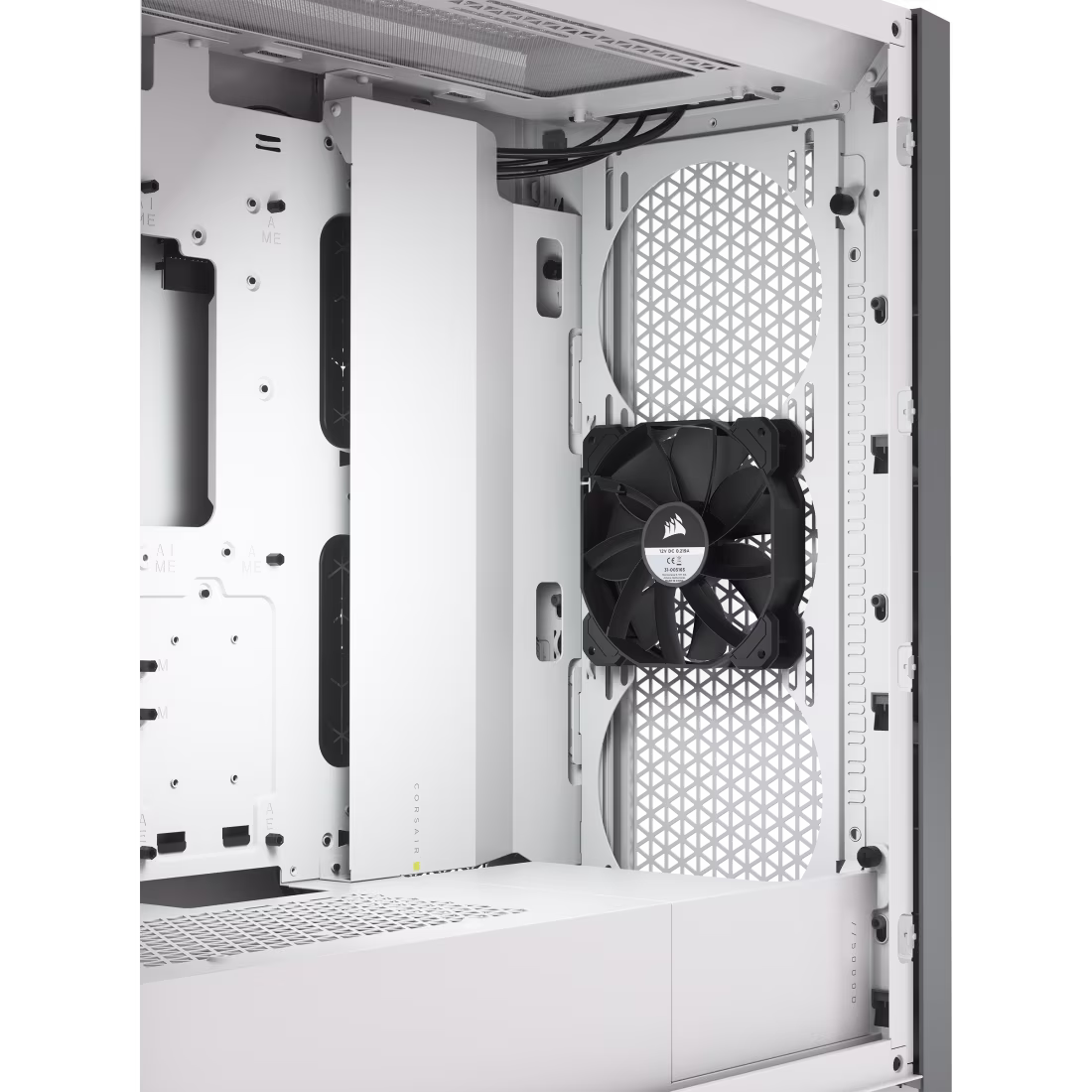

Side: 3 × 120 mm
-

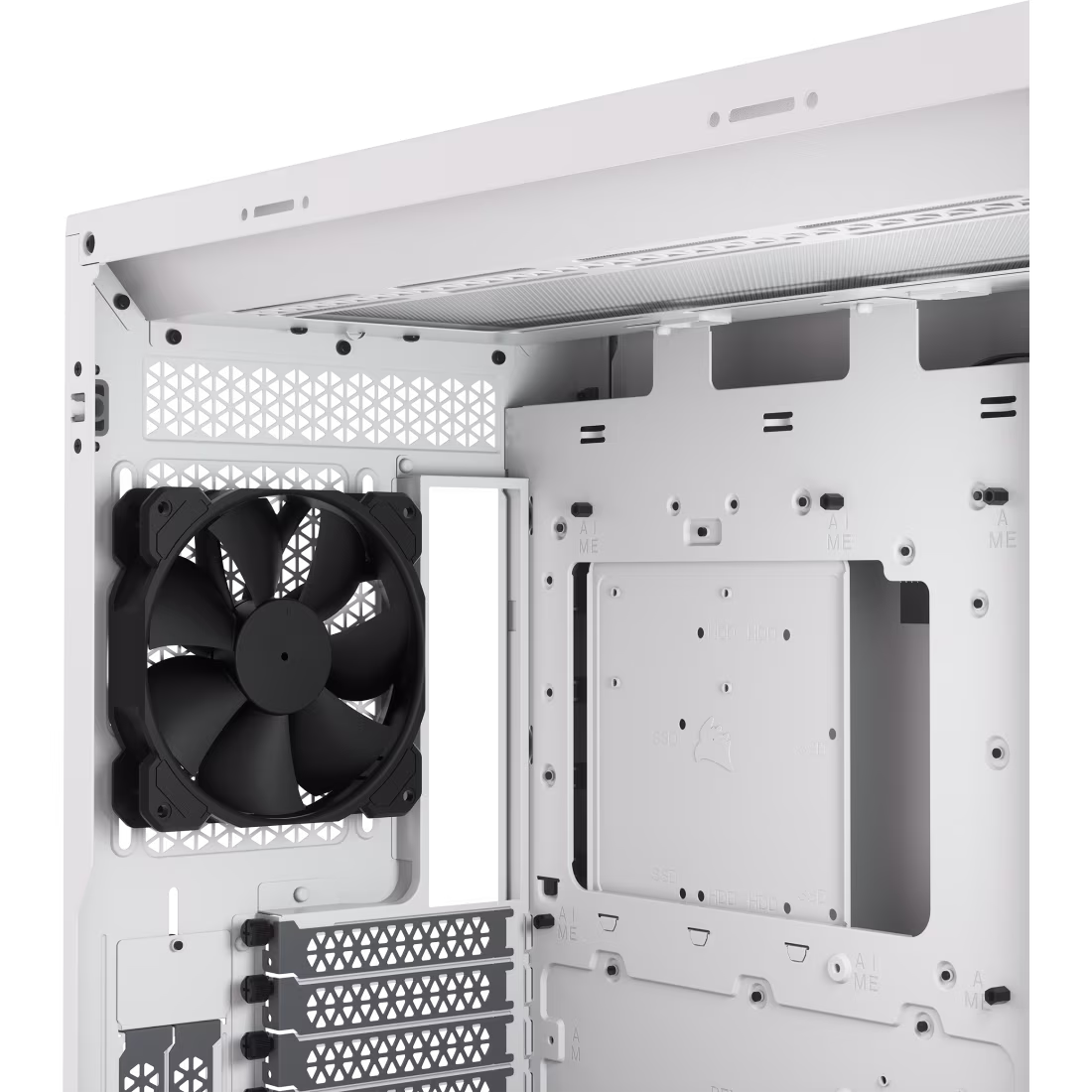

Rear: 1 × 120 mm
-
PSU Shroud: 2 × 120 mm
Radiator Support:
-
Front: Up to 360 mm
-
Top: Up to 360 mm
-
Side: Up to 360 mm
-
Rear: 120 mm

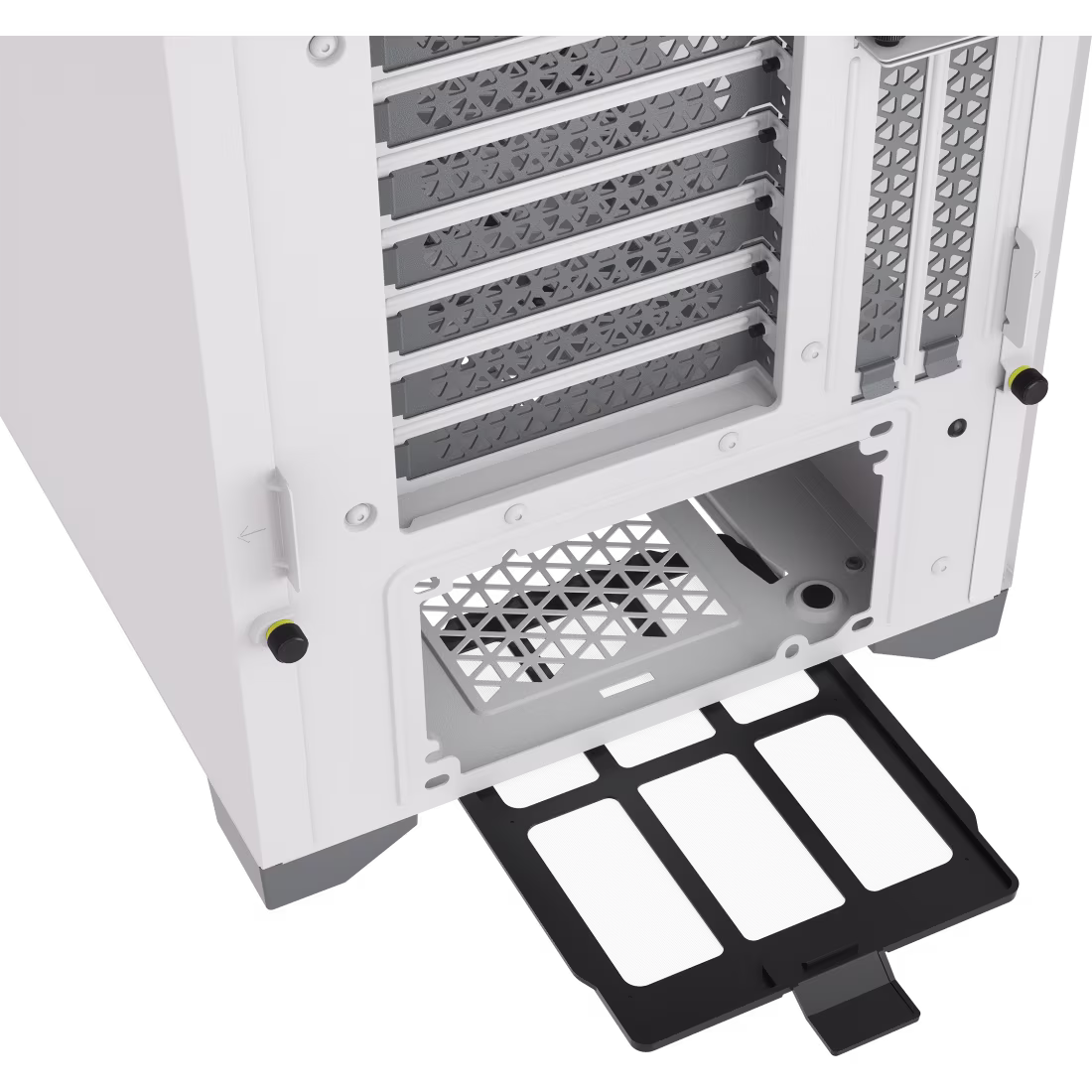

Dust Filters: Included on top, bottom, front, and side intake areas

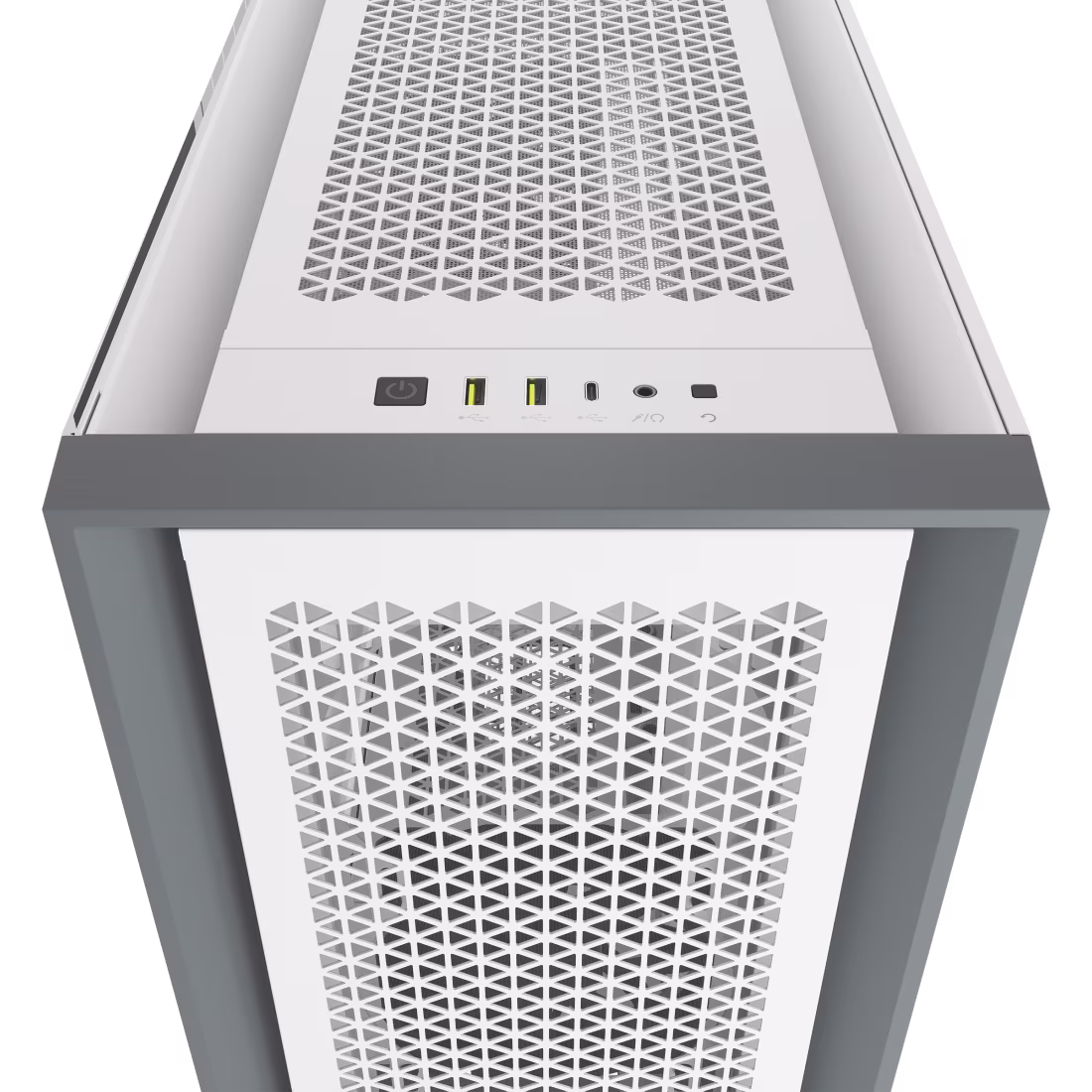

🔌 Front I/O Panel
-
1 × USB 3.2 Gen 2 Type-C
-
2 × USB 3.2 Gen 1 Type-A
-
1 × 3.5 mm combo audio jack
-
Power and reset buttons with activity LED
🛠️ Key Features
-

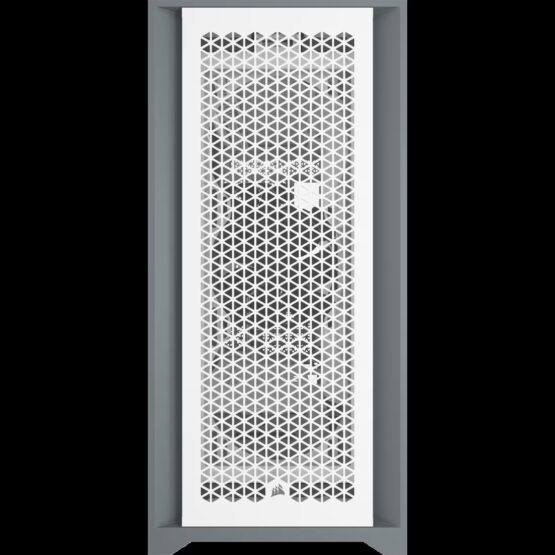

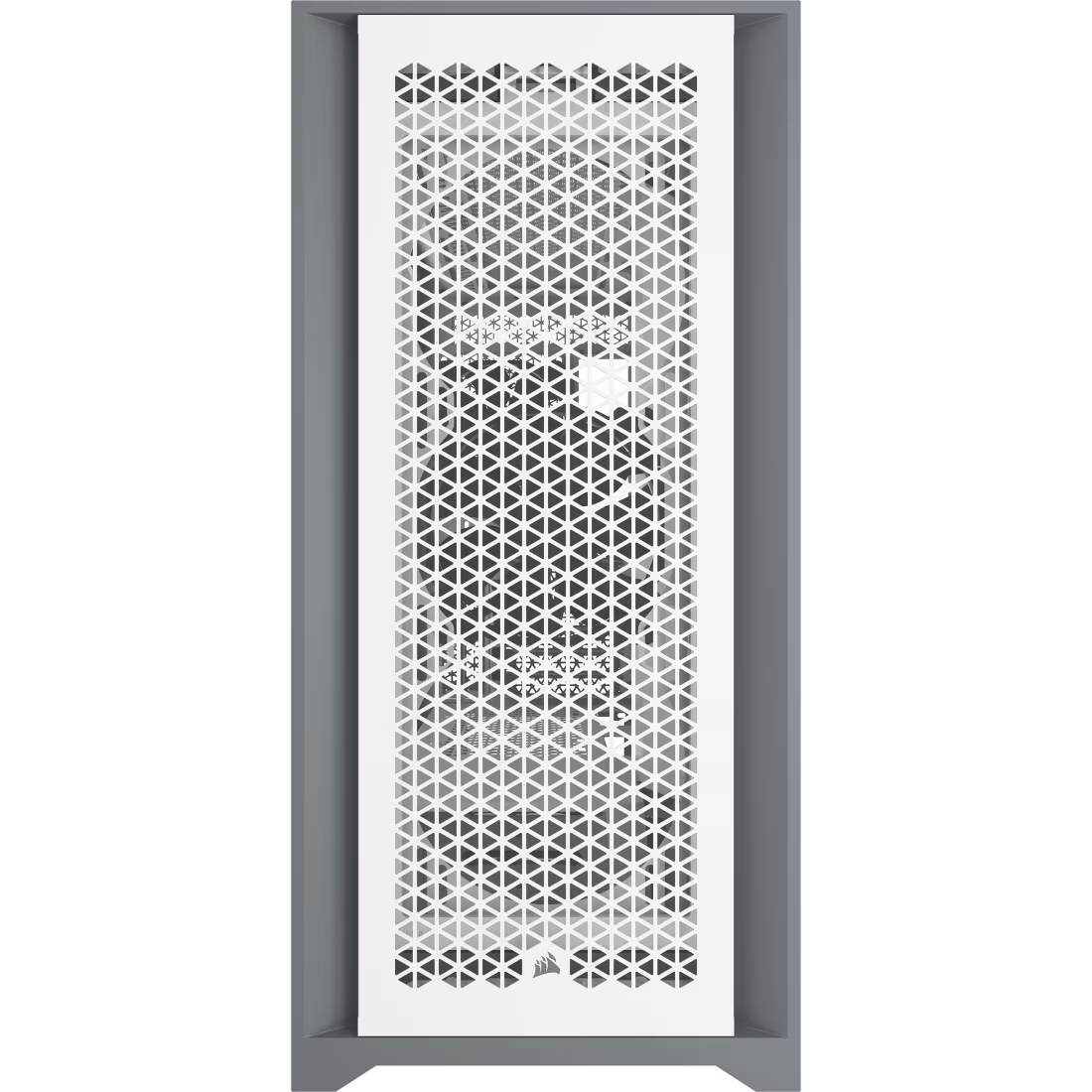

High-Airflow Design: Steel mesh front panel ensures optimal airflow for cooling high-performance components.
-

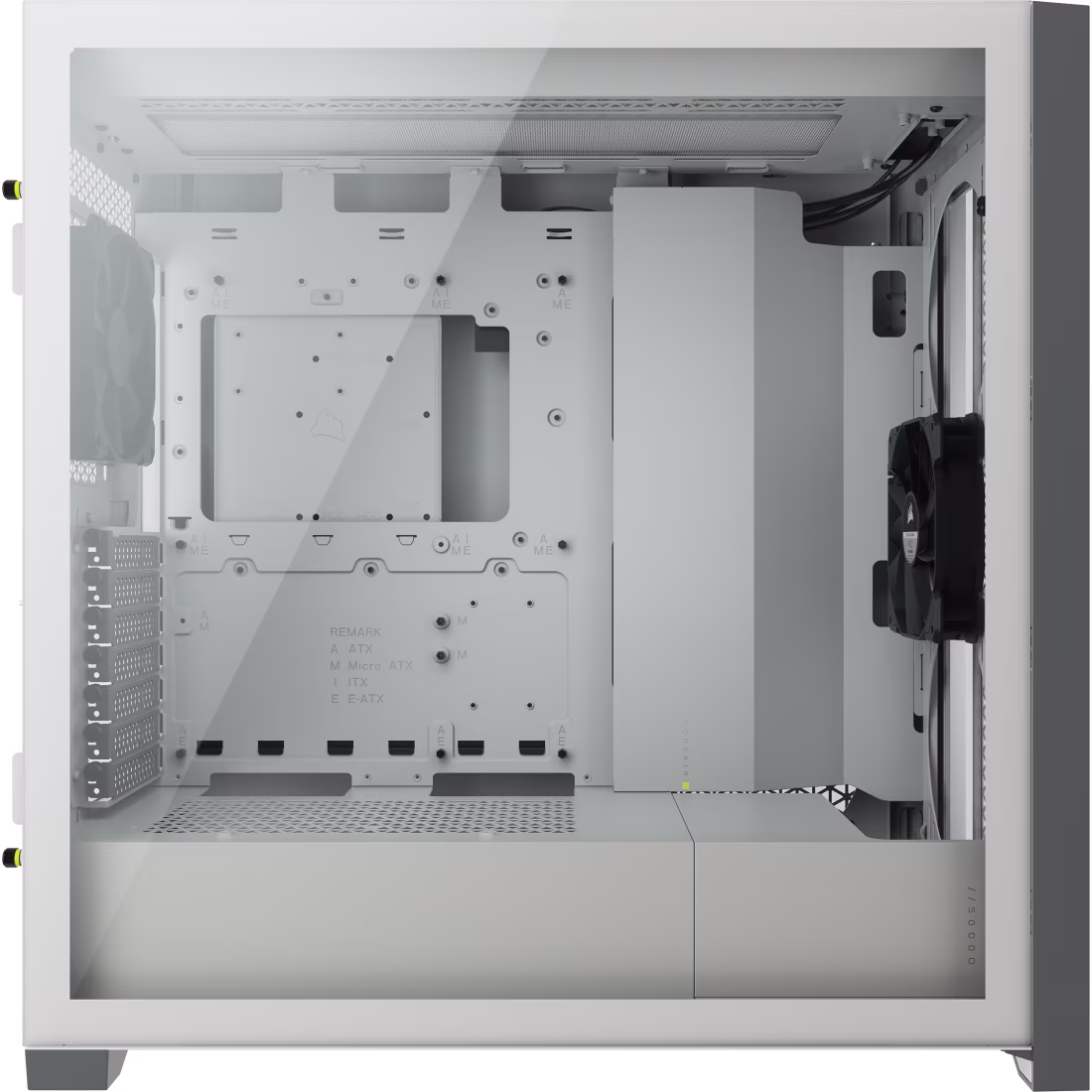

Tempered Glass Side Panel: Tool-free side panel provides a clear view of internal components.
-

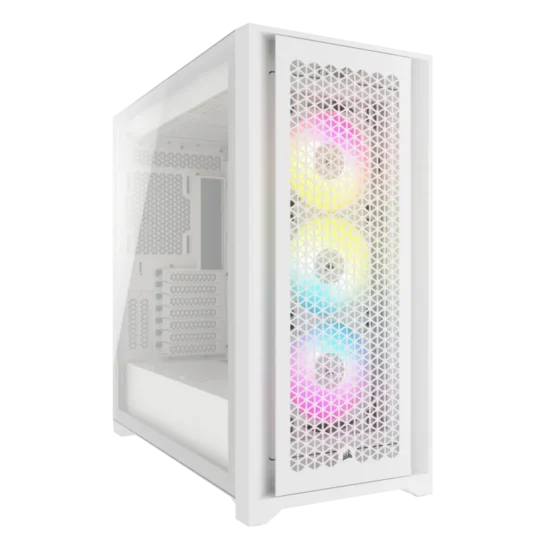

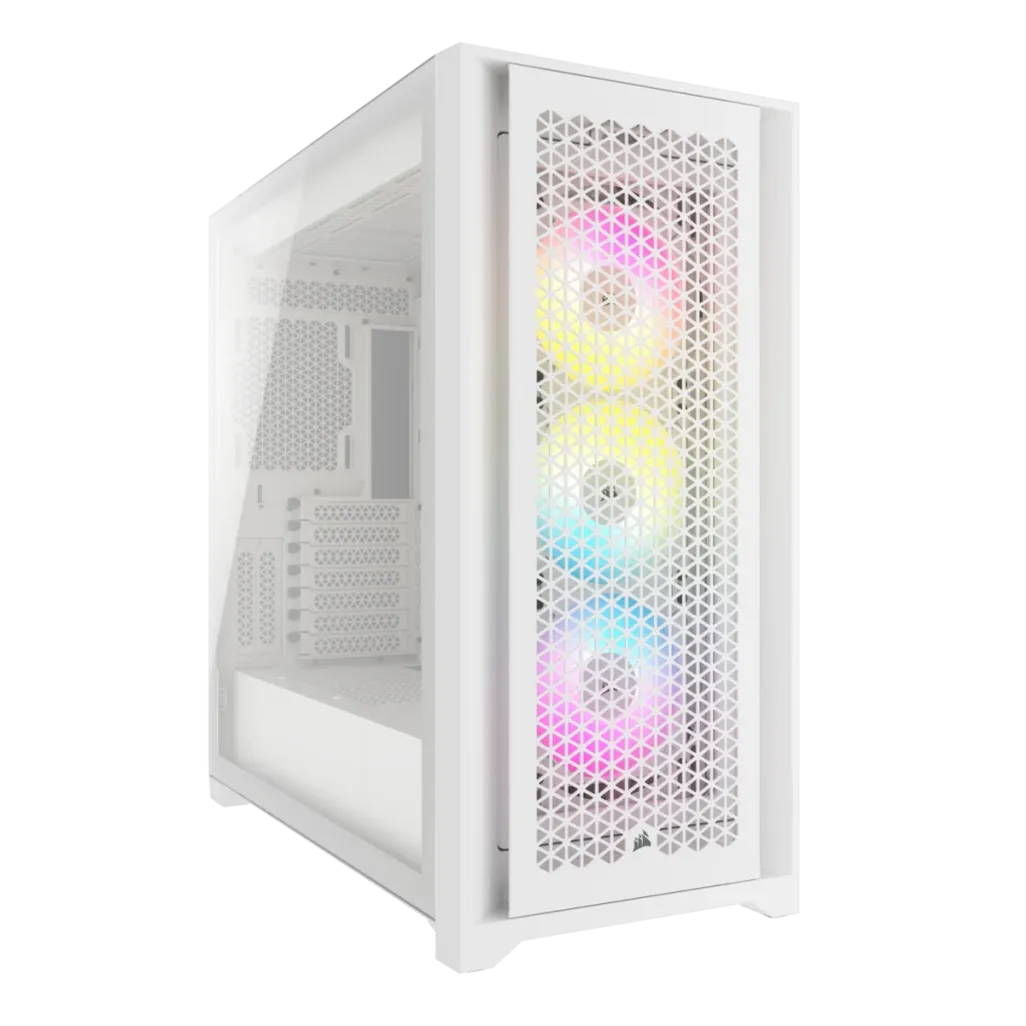

ARGB Lighting: Three pre-installed AF120 RGB ELITE fans offer customizable lighting effects.
-

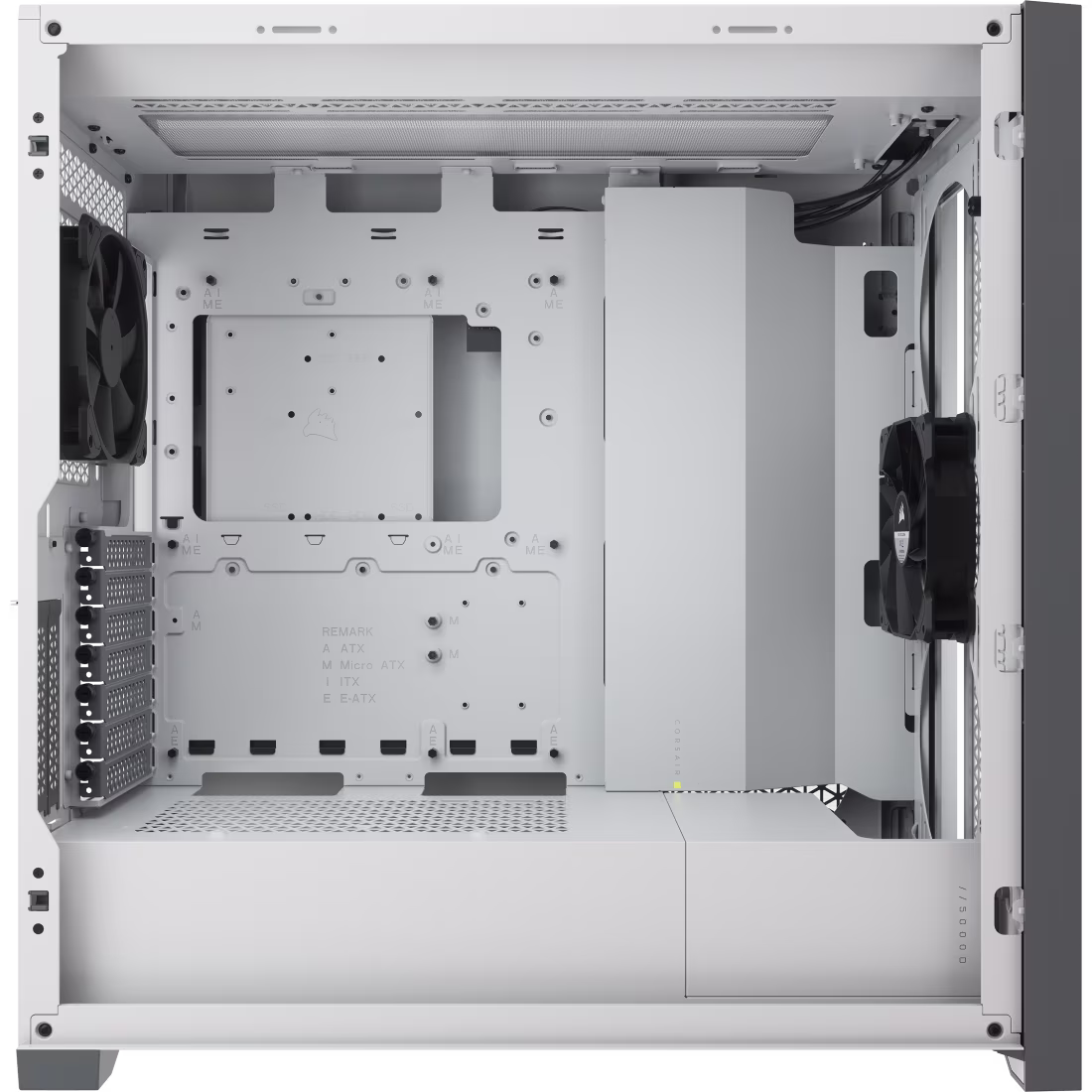

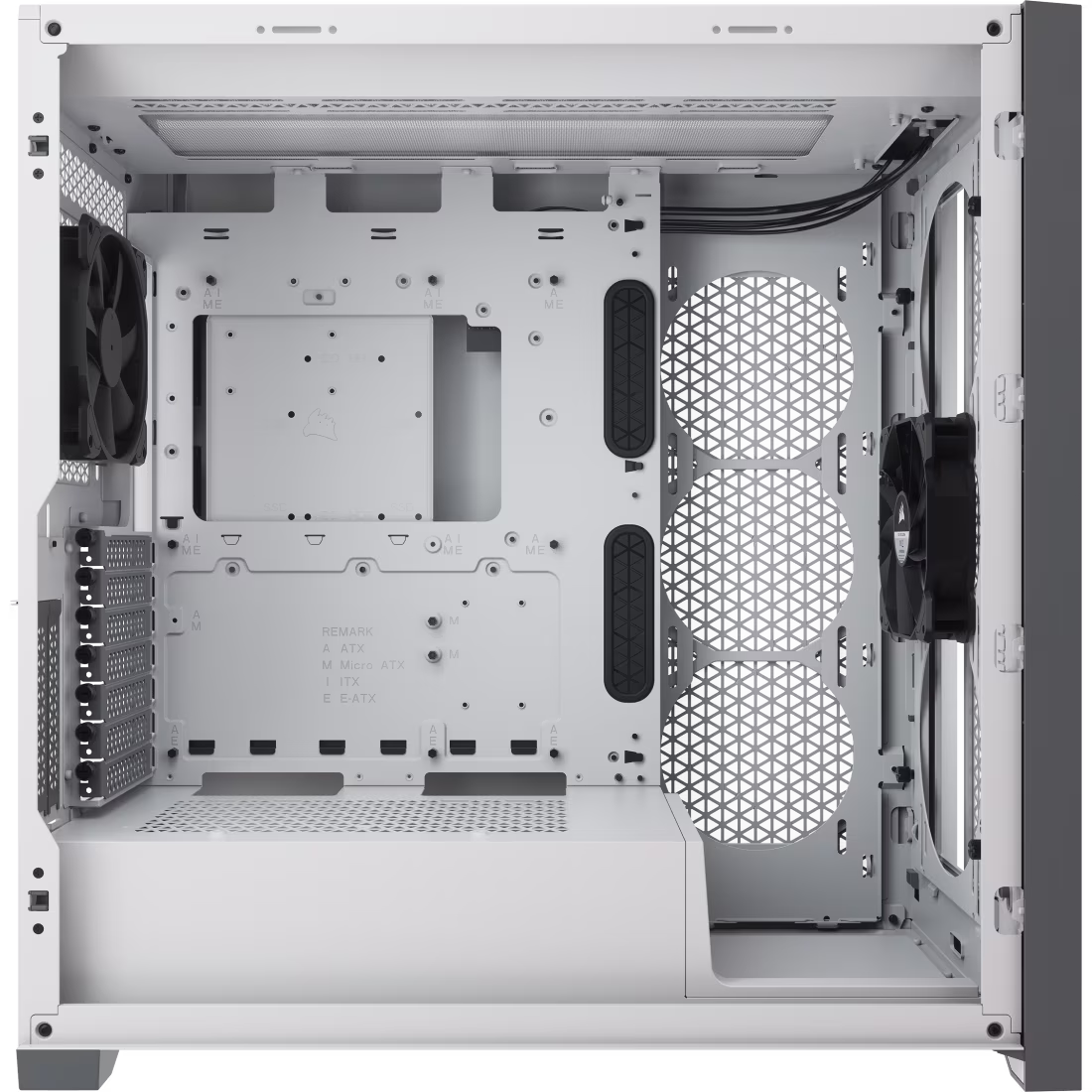

Spacious Interior: Accommodates large GPUs and multiple cooling solutions.
-

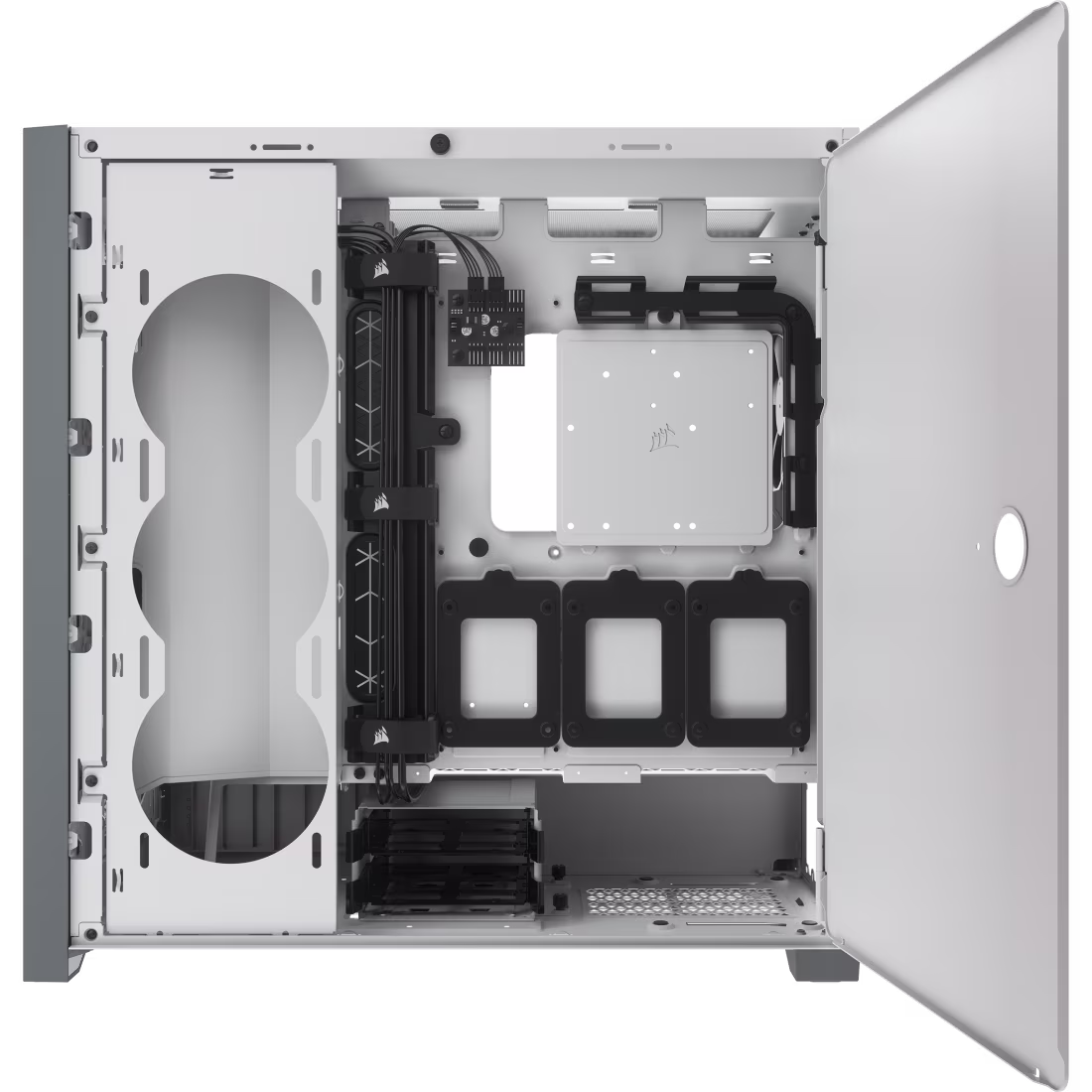

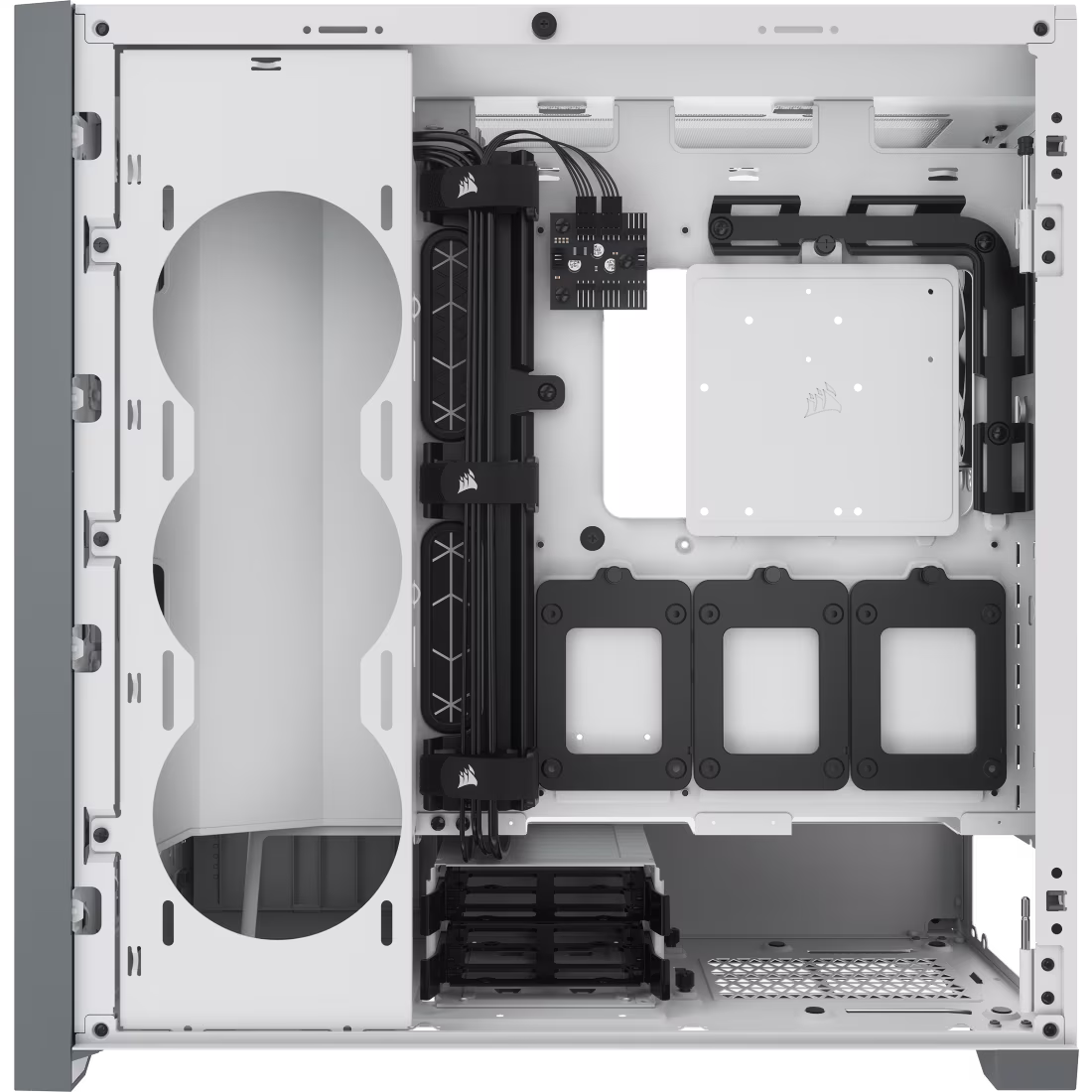

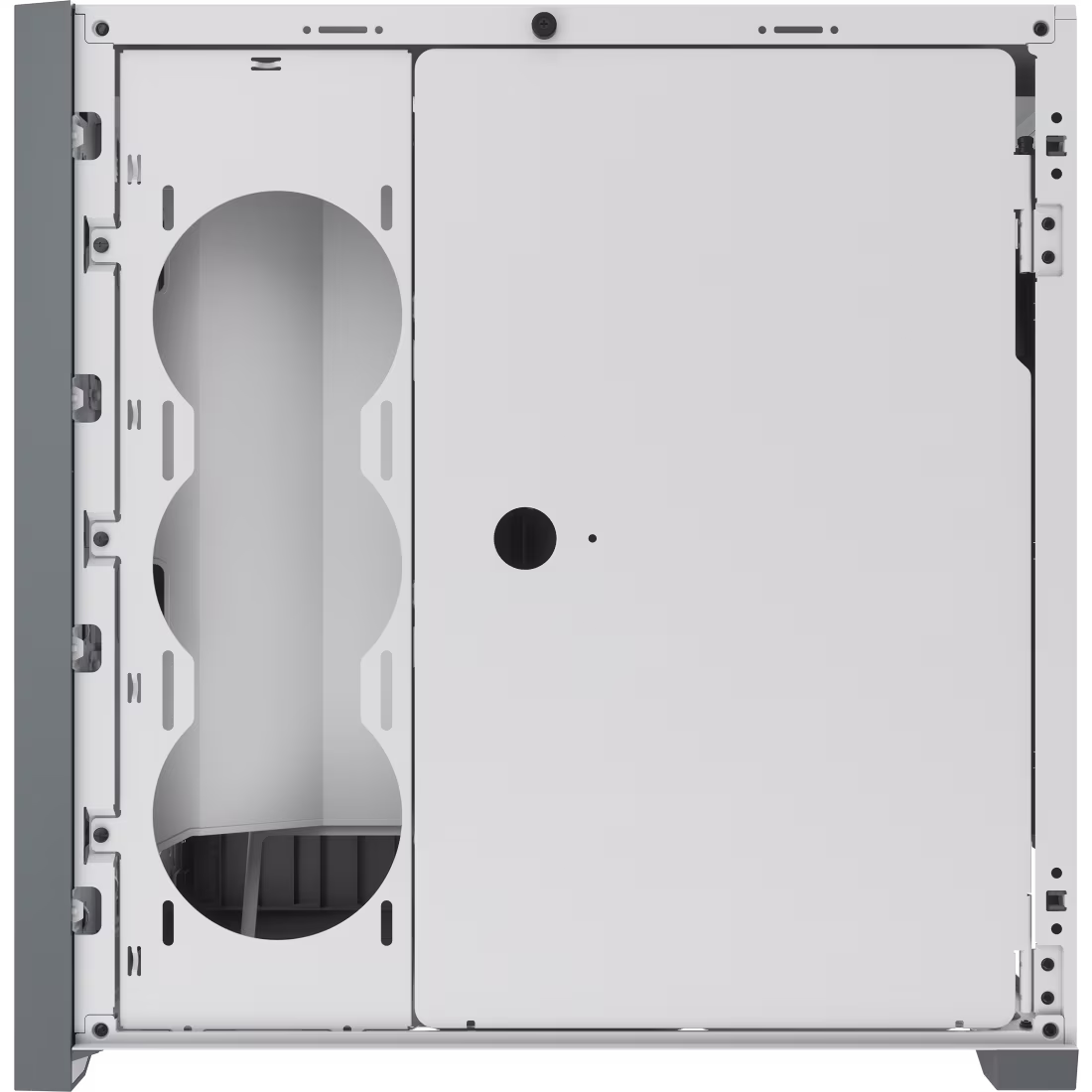

Cable Management: 25 mm of routing space behind the motherboard tray with Corsair RapidRoute cable management system.
-

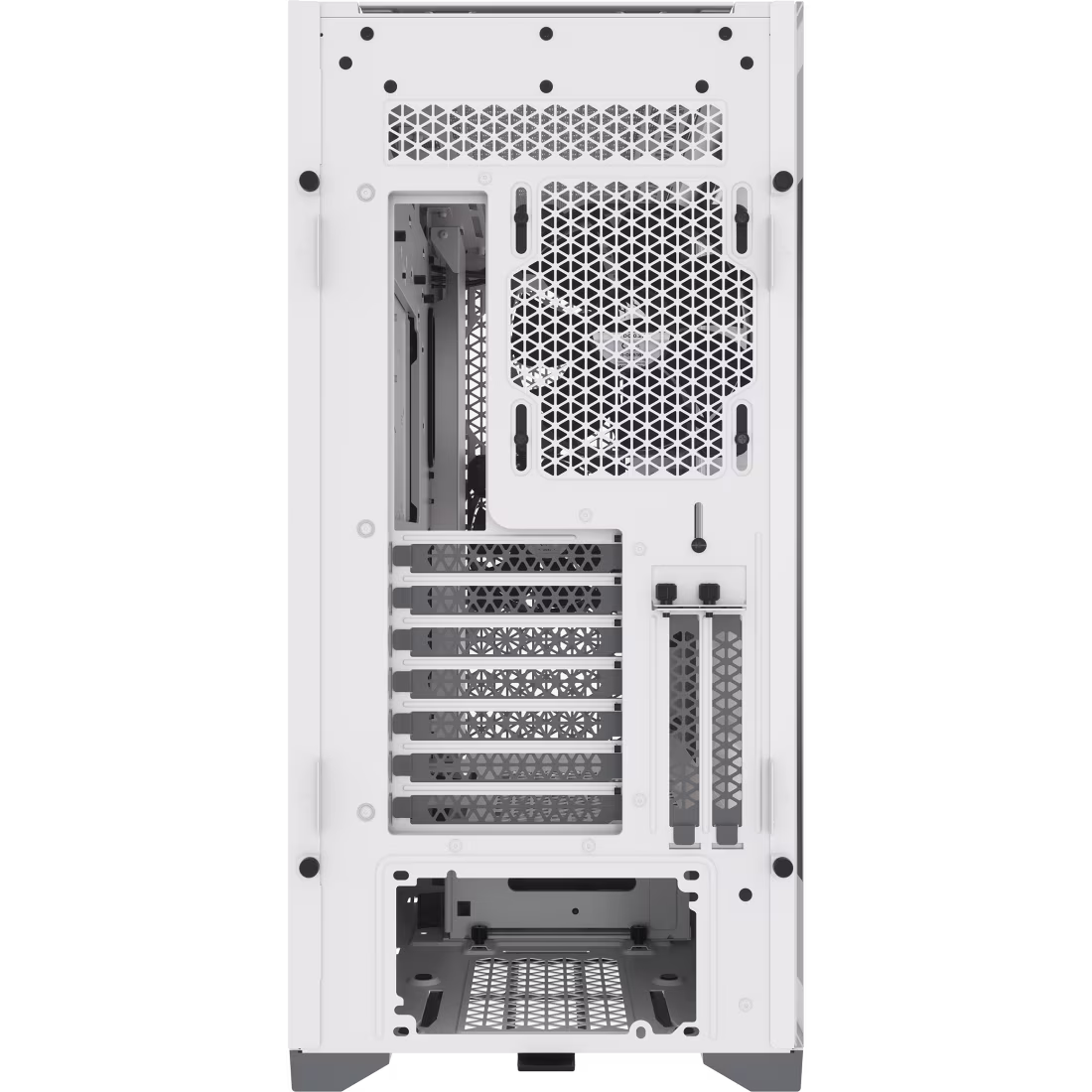

Vertical GPU Mount Ready: Includes vertical PCIe slots for optional vertical GPU mounting (riser cable sold separately).
-
iCUE Lighting Node PRO: Integrated controller for synchronizing RGB lighting with Corsair iCUE software.
